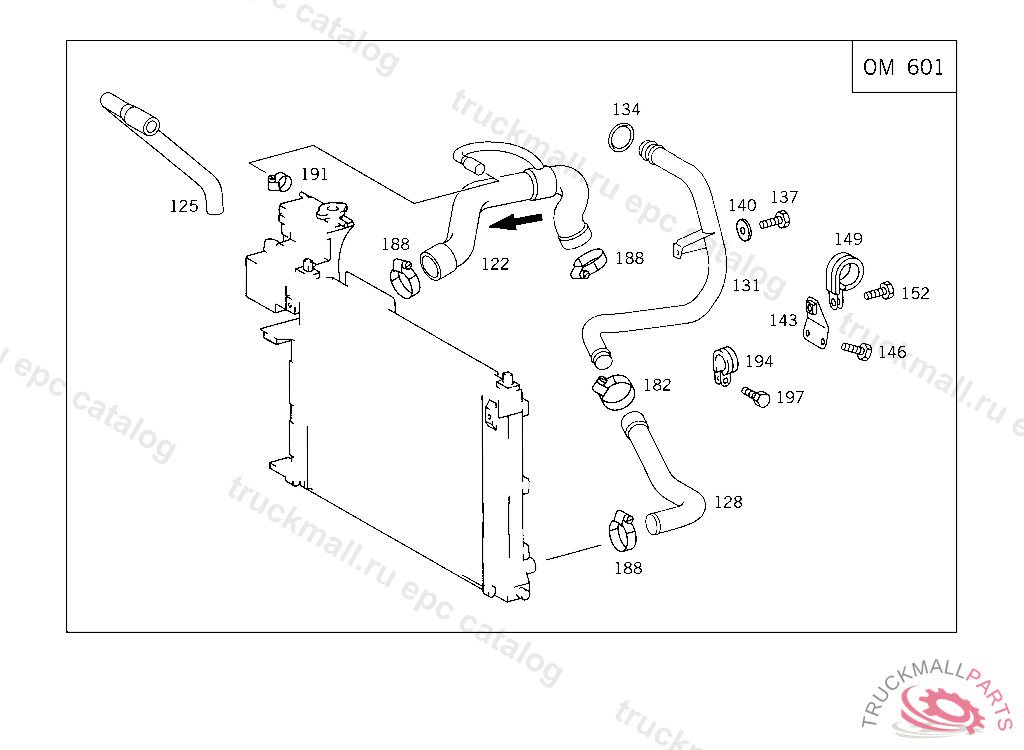

Поз.
Артикул
Описание
122
HOSE COOLING WATER FEED LINE
125
HOSE COOLING WATER FEED LINE
128
HOSE COOLING WATER RETURN LINE
131
LINE RETURN
131
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6385000372
134
SEAL RING COOLING WATER PIPE TO THERMOSTAT HOUSING
137
SCREW. HEXAGON HEAD BOLT BRACKET TO COVERING M6X16
140
WASHER COMPRESSED AIR LINE TO BRACKET
143
BRACKET COOLING WATER LINE TO OIL PAN
146
COMBINATION BOLT REAR TRANSMISSION CASE M 8X45
149
CLAMP COOLING WATER PIPE TO THERMOSTAT HOUSING 37/20
152
SCREW BRACKET TO EXHAUST PIPE BRACKET
182
LOOM TIE , Replaced By: A0069974390
182
LOOM TIE. CLAMP HOSE FASTENING
188
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
191
CLAMP , Replaced By: A0059970190
194
CLAMP COOLING WATER PIPE TO THERMOSTAT HOUSING 37/20
197
SCREW BRACKET TO EXHAUST PIPE BRACKET
