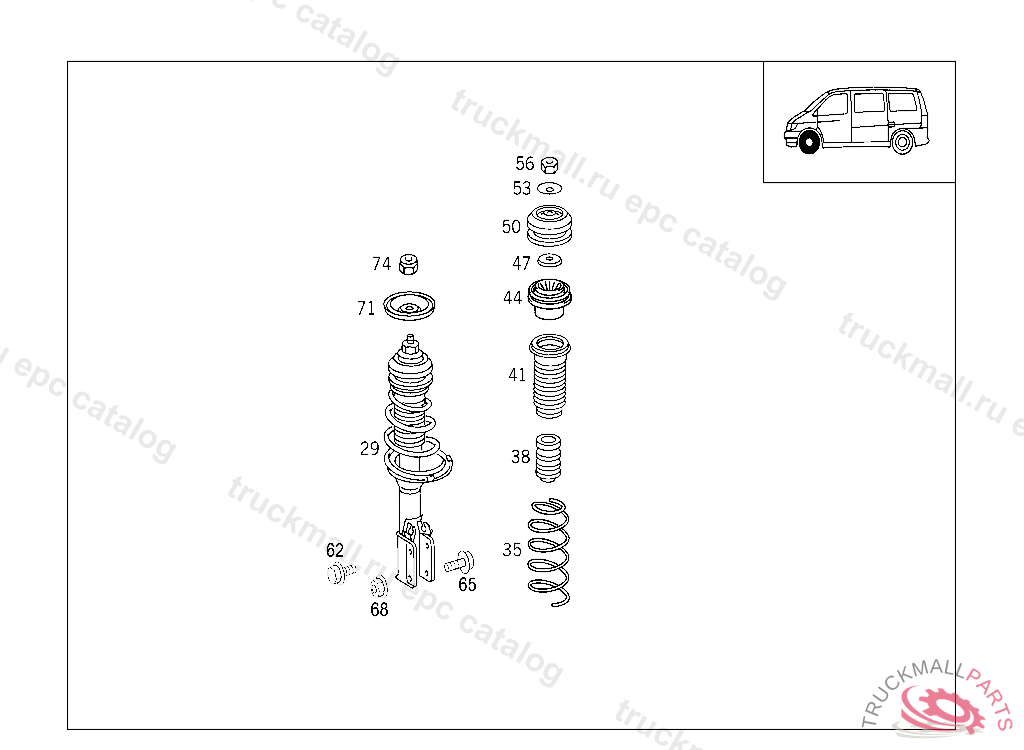

Поз.
Артикул
Описание
29
HYDROPN. SPRING LEG , STATE COLOR WHEN ORDERING: RED60: BLUE61
29
29
35
35
FRONT SPRING , STATE COLOR WHEN ORDERING: RED60: BLUE61
35
FRONT SPRING , STATE COLOR WHEN ORDERING: RED60: BLUE61
35
35
38
HELPER SPRING
41
PROTECTIVE TUBE
44
BALL BEARING
47
COVER
50
BEARING
53
COVER
56
NUT RELEASE BEARING LUBRICATION
62
SCREW. BOLT CAM BOLT, Replaced By: A0019907700
62
SCREW HYDROPNEUMATIC SPRING LEG MOUNTING TO 638 320 03 13/06 13
65
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
68
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
71
STOP SPRING STRUT TO BODY
74
NUT STEERING SUPPORT TO FRAME
999
HYDROPN. SPRING LEG , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 022486, Replaced By: A6383200913, +001A6383210171
999
999
HYDROPN. SPRING LEG
999
999
