Mercedes A6386361309 - БОКОВИНА

V 230 TURBODIESEL 638.274

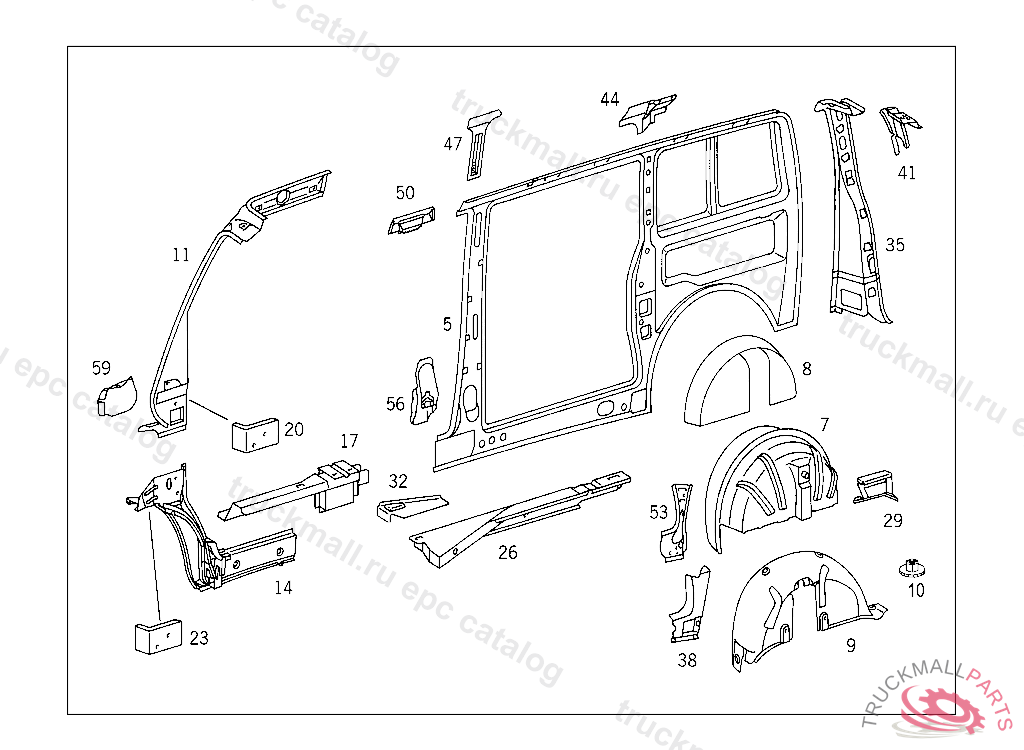

63 SIDE PANELS - 060 SIDE PANEL,RIGHT

Поз.
Артикул
Описание
5
A6386361309
SIDE PANEL INSIDE
7
A6386600850
WHEELHOUSE RIGHT
8
A6389891471
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
9
A6386980730
10
A0019889581
FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
11
A6386310712
PILLAR PART A-PILLAR,INSIDE RIGHT
14
A6386300113
PILLAR BOTTOM RIGHT
17
A6386300305
GIRDER PART RIGHT
20
A6386300316
REINFORCEMENT TOP
23
A6386300416
REINFORCEMENT BOTTOM
26
A6386300005
GIRDER PART RIGHT
29
A6386310132
CONNECTION , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 071249, Replaced By: A6386310832
29
A6386310832
CONNECTION RIGHT
32
A6386320216
REINFORCEMENT RIGHT
35
A6386300210
PILLAR D-PILLAR,INSIDE RIGHT
38
A6386300489
TAKE-UP DEVICE C-PILLAR,INSIDE LEFT
41
A6387400006
REINFORCEMENT HINGE
44
A6386370012
ANGLE C-PILLAR TOP,RIGHT
47
A6386313716
REINFORCEMENT B-PILLAR,TOP RIGHT
50
A6386320524
BRACKET
53
A6386312716
REINFORCEMENT C-PILLAR
56
A6386301016
REINFORCEMENT BELT REEL
59
A6386320109
END PIECE RIGHT
