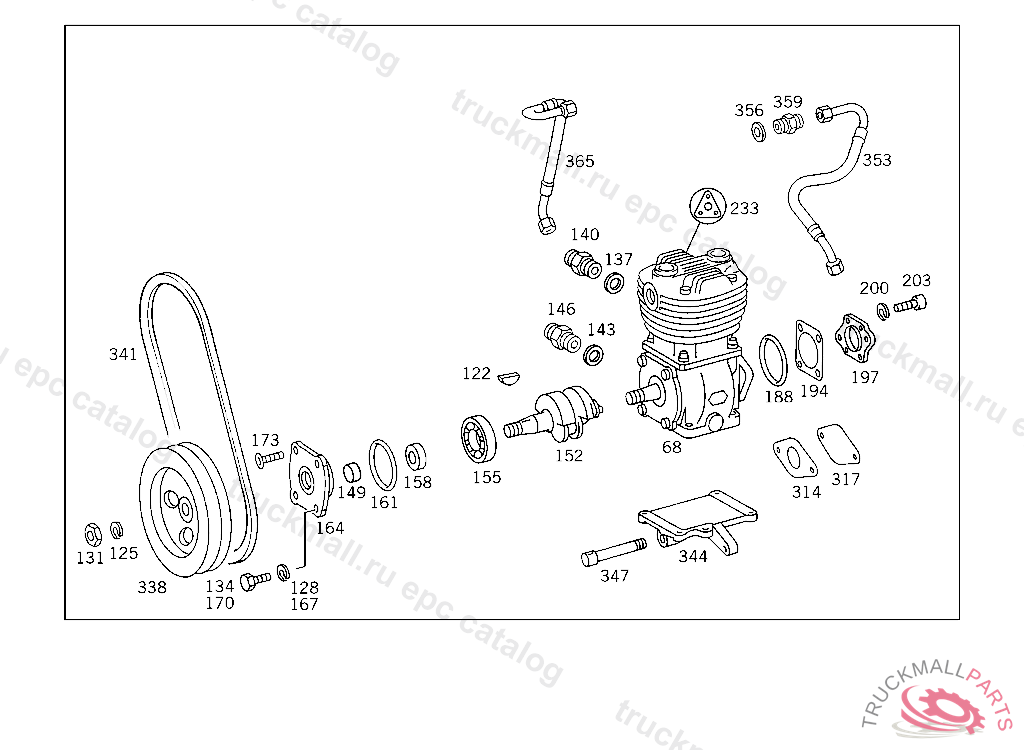

Поз.
Артикул
Описание
68
COMPRESSORWABCO 220 CCM, ONE-CYLINDER AIR COMPRESSOR PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
68
COMPRESSORKNORR
68
COMPRESSOR , TWO-CYLINDER AIR COMPRESSORS WILL NO LONGER BE INSTALLED, Replaced By: A0011315201, +001A4031310821, +001A3601310135, +001A3661310080, +001A3601320615, +001A3271340001, +001A0039970092, +001N000127018202, +001N000439018204, +002N000933010200, +001N074305026202, +002N912004010202
68
COMPRESSOR , Replaced By: A0031315901
122
WOODRUFF KEY FLANGE TO SHIFTING TUBE
125
LOCK WASHER BELL HOUSING TO TRANSMISSION
128
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
131
NUT
134
NUT
134
NUT , Replaced By: N304032008006
137
SEAL RING , Replaced By: N007603010110
137
SEAL RING LINE CONNECTION
137
SEAL RING PNEUMATIC VALVE
140
FITTING 3/2-WAY VALVE,CONNECTION: "30"
140
FITTING OVERFLOW VALVE,CONNECTION: "10"
143
SEAL RING LINE CONNECTION
143
SEAL RING VALVE TO VALVE,K 025179
146
FITTING VACUUM LINE TO VACUUM PUMP
146
FITTING
149
BUSHINGTO 376 131 74 01
149
BUSHINGTO 001 131 52 01
152
CRANKSHAFTTO 001 131 52 01
155
SPACER RINGTO 001 131 52 01
155
GROOVED BALL BEARING BEARING BODY,6 900042
155
CYLINDR. ROLLER BEARINGTO 001 131 52 01
158
SEAL RING CRANKSHAFT SEALING,FRONT WABCO
158
SEAL RING
158
SEAL RING
161
SEAL RING BEARING CAP TO HOUSING TO 001 131 52 01
161
SEAL RING
161
SEAL RINGTO 376 131 74 01
164
BEARING CAPTO 001 131 52 01
164
BEARING CAP PARTS KIT TO 004 131 58 01
164
BEARING CAPTO 376 131 74 01
167
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
170
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
170
SCREW , Replaced By: N304017008016
173
SCREW BEARING CAP TO HOUSING TO 003 131 48 01,004 131 58 01
188
SEAL RING FLANGE TO HOUSING TO 001 131 52 01
194
GASKET
197
FLANGE
197
FLANGE CRANKSHAFT,REAR TO 001 131 52 01
200
LOCK CONNECTING ROD COVER TO CONNECTING ROD TO 000 130 19 16
203
SCREW COVER TO FLANGE M 8X15
233
GASKET KIT AIR COMPRESSOR TO 004 131 03 01
233
GASKET KIT AIR COMPRESSOR TO 003 131 59 01
233
GASKET KIT , Replaced By: A0001301515
233
GASKET KIT , Replaced By: A0001301815
314
GASKET , Replaced By: A4031310480
314
GASKET , Replaced By: A3661310080
314
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
317
CAP TO PLUG AIR COMPRESSOR,REAR
317
CAP , Replaced By: A4031310821
338
PULLEY
341
V-BELT AIR COMPRESSOR
344
SUPPORT AIR COMPRESSOR, TWO-CYLINDER AIR COMPRESSOR
347
PIN AIR COMPRESSOR SUPPORT TO BEARING HOUSING
353
HOSE AIR COMPRESSOR INLET
356
SEAL RING LINE CONNECTION
359
ADAPTER FITTING FROM FUEL LINE TO FEED PUMP
365
HOSE OUTLET FOR AIR COMPRESSOR
999
SEAL RING VALVE
999
HOUSING
999
COVER , Replaced By: A0004666505
999
COVERTO 000 460 23 80
999
SCREW PLUG CRANKCASE,AIR COMPRESSOR
999
PIPE SOCKET
999
FITTING AIR COMPRESSOR
