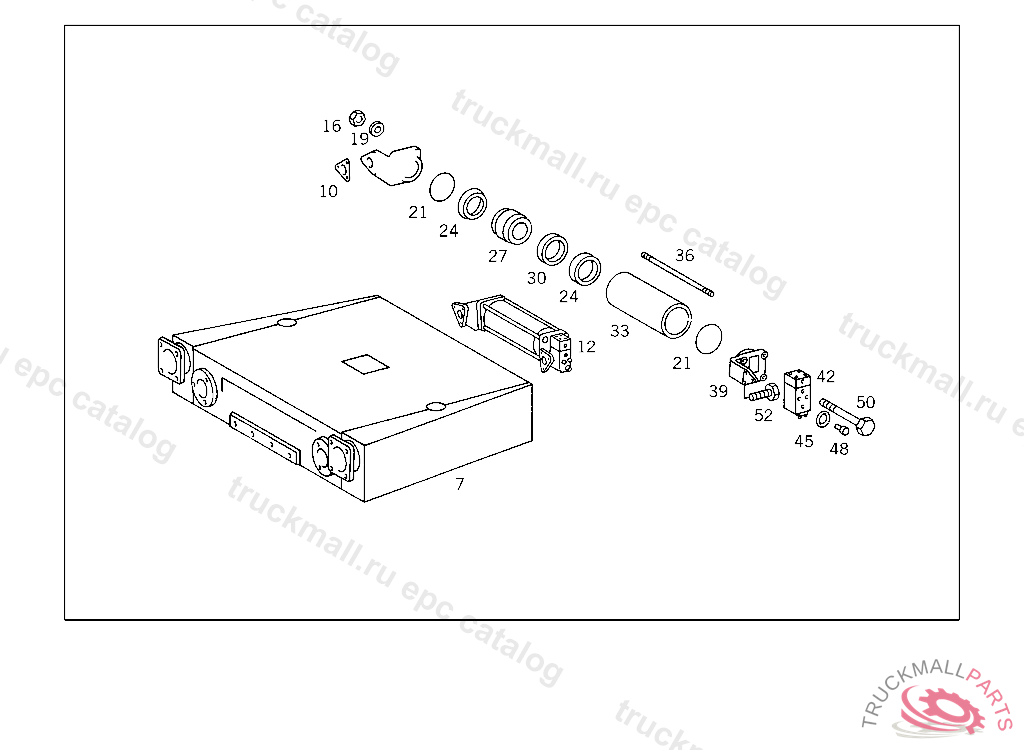

Поз.
Артикул
Описание
7
OIL COOLER WATER COOLED OIL COOLER
10
GASKET LINE CONNECTION
10
GASKET , Replaced By: A0002573880
12
VACUUM TANK OIL COOLER
16
NUT
19
WASHER EXHAUST MUFFLER TO STRAP
19
WASHER , Replaced By: N000125008443
21
SEAL RING
24
SEAL RING
24
SEAL RING , Replaced By: A0199975947
27
PISTON
30
PISTON GUIDE
33
PIPE
36
STUD
39
COVER
42
VALVE
42
VALVE , Replaced By: A0002570934
45
SEAL RING SOLENOID VALVE TO OIL COOLER HOUSING
48
VALVE
50
SCREW VALVE TO BRACKET M 8X55
50
SCREW , Replaced By: N304017008043
52
SCREW PIPE CLAMP
52
SCREW , Replaced By: N304017008021
999
COVER
999
BRACKET PIPE SOCKET TO OIL COOLER
999
OIL PAN PARTS KIT
999
BRACKETKET
999
BRACKET OIL COOLER
999
BRACKET AT TRANSMISSION
999
BRACKET OIL COOLER TO SUPPORT
999
BRACKET , Replaced By: A3003270140
