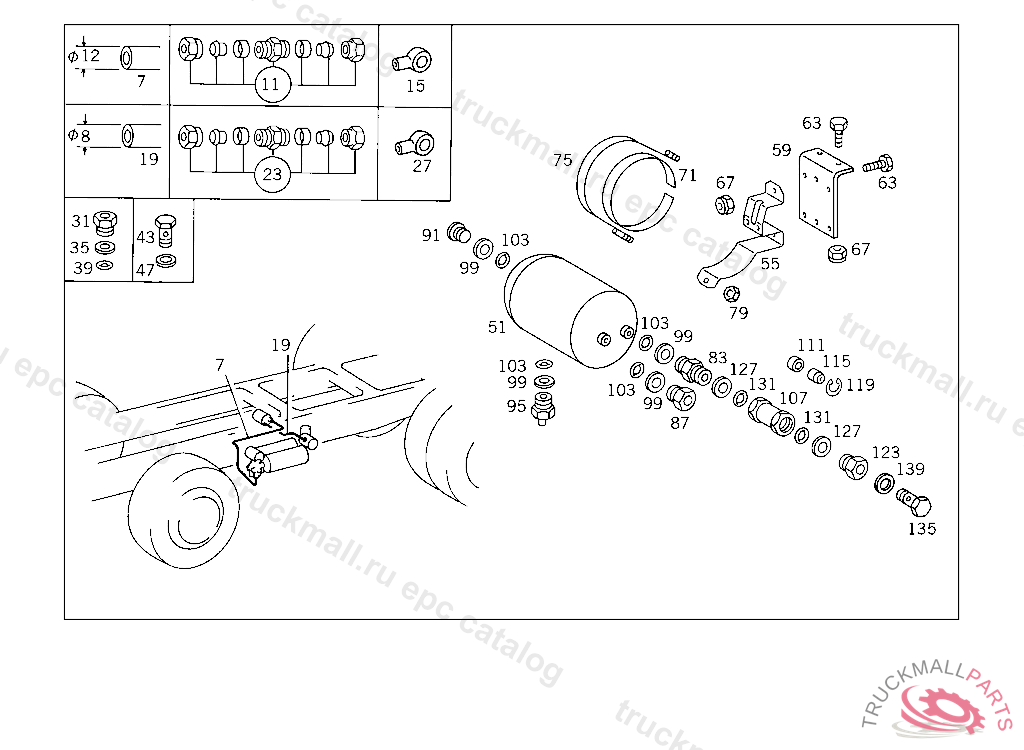

Поз.
Артикул
Описание
7
HOSE , Replaced By: A0009872827
7
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
11
FITTING , Replaced By: A0029906171
11
FITTING (PARTS KIT),LINE RUPTURE
15
BANJO UNION , Replaced By: N915052009009
15
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
19
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
23
FITTING , Replaced By: A0029905971
23
FITTING (PARTS KIT),LINE RUPTURE
27
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
27
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
31
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
35
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
35
THRUST RING CHECK VALVE TO AIR RESERVOIR
39
O-RING CHECK VALVE TO AIR RESERVOIR
43
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
47
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
51
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
51
RESERVOIR10L,206 MM,8.5 BAR
51
RESERVOIR ,5 934167, Replaced By: A0034324701
51
RESERVOIR , Replaced By: A0034324801
51
RESERVOIR10 L, 206 MM,5 934168
55
BRACKET CLUTCH BOOSTER AIR RESERVOIR
59
SUPPORT AIR RESERVOIR TO FRAME
63
SCREW , Replaced By: N308676012012
63
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
67
NUT SUPPORT TO SIDE MEMBER
71
PAD , Replaced By: A3879870070
71
RUBBER SECTION , Replaced By: A6559890285
71
ADHESIVE TAPE60 MM, ORDER BY THE METER
75
STRAP AIR RESERVOIR TO BRACKET
75
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
79
NUT BRACKET TO SUPPORT AND TO END PIECE
83
FITTING AIR RESERVOIR,CONNECTION: "13"
87
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
91
SCREW PLUG , Replaced By: N000908022011
91
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
95
VALVE DRAIN, Replaced By: A0004322407
95
VALVE DRAIN, Replaced By: A0004322107
95
VALVE. DRAIN VALVE DRAIN
95
VALVE. DRAIN VALVE DRAIN
95
VALVE DRAIN, Replaced By: A0004322107
99
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
99
THRUST RING CHECK VALVE TO AIR RESERVOIR
103
O-RING CHECK VALVE TO AIR RESERVOIR
107
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
111
VALVE SEAT RINGWABCO,5 433388
115
BUSHINGWABCO,5 433388
119
LOCK RINGWABCO,5 433388
123
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
127
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
127
THRUST RING CHECK VALVE TO AIR RESERVOIR
131
O-RING CHECK VALVE TO AIR RESERVOIR
135
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
139
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
