Поз.
Артикул
Описание

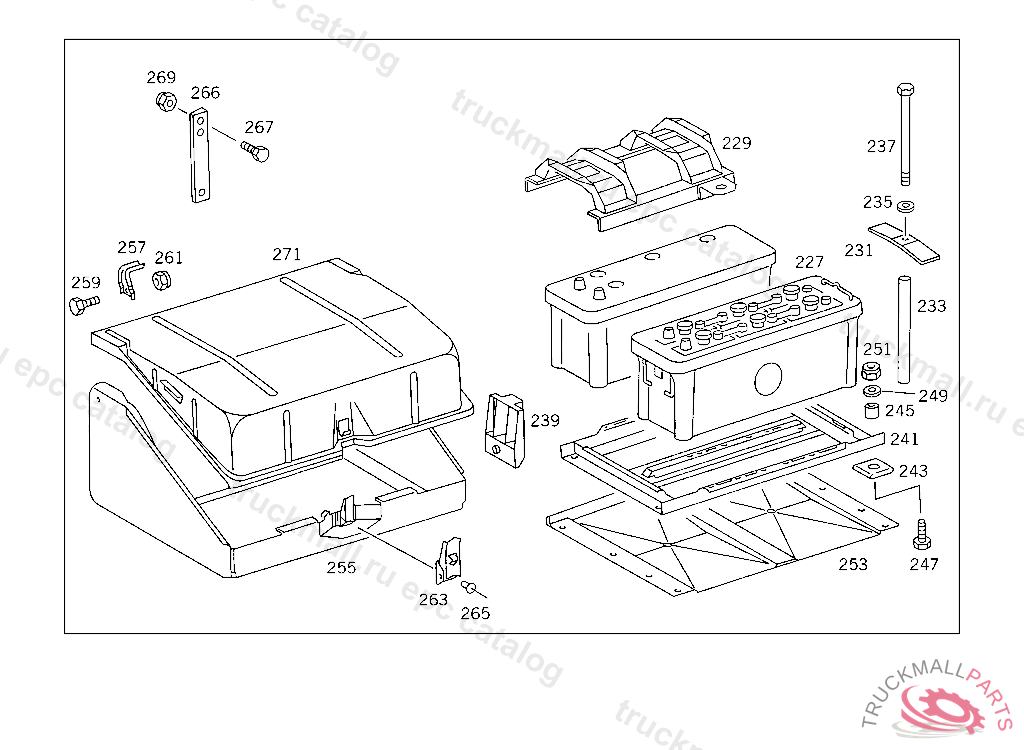

227
BATTERY , Replaced By: A0035418801
227
BATTERY12V/120 AH
227
BATTERY12 V/115 AH
229
MOUNTING FRAME BATTERY
231
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
233
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
235
WASHER , Replaced By: N009021008213
235
WASHER BRACKET TO LEFT SIDE MEMBER
237
SCREW BATTERY MOUNTING M 8X260X40
239
STOP BATTERY MOUNTING
241
RAIL. BATTERY BASE FRAME
243
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
245
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
247
SCREW BRACKET TO FRAME SIDE MEMBER
249
WASHER , Replaced By: N007349010007
249
WASHER STRUT TO CROSS MEMBER
251
NUT , Replaced By: N910113010000
251
NUT STRAP TO BRACKET
253
BATTERY CASE
255
BATTERY SUPPORT , Replaced By: A6205401916
255
BATTERY SUPPORT , Replaced By: A6165400316
255
BATTERY SUPPORT , TO BE ADAPTED DURING ASSEMBLY
255
BATTERY SUPPORT , TO BE ADAPTED DURING ASSEMBLY
257
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
257
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
259
SCREW , Replaced By: N304017006020
259
SCREW LICENSE PLATE TO BRACKET
261
NUT , Replaced By: N913004006001
261
NUT PUMP TO BRACKET
263
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
265
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
269
NUT , Replaced By: N910113014001
269
NUT BRACKET TO SIDE MEMBER
271
COVER BATTERY/APPARATUS SUPPORT
999
SHEET METAL SCREW , Replaced By: A0009909236
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,5 406237
999
GROMMET LINE MOUNTING 50/45 MM
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
999
CABLE HARNESS , Replaced By: A6175401507
999
RUBBER BUFFER , Replaced By: A1119871340
999
PLUG 15-POLE TRAILER PLUG SOCKET
999
PLUG
999
LENS LIMITATION OF ENGINE SPEED
999
LENS , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0065454090
999
PLUG HOUSING 3-POLE
999
LENS , Replaced By: A0065451990
999
PLUG SOCKET. PIN BUSHING HOUSING , Replaced By: A0035452226, +001A0005455945
999
ROUND PIN BUSHING
999
INSTRUMENT CLUSTER , Replaced By: A0035409647
999
SWITCH , Replaced By: A0025457607
999
SWITCH , Replaced By: A0025456907
999
PLUG 37-POLE PLUG SOCKET
999
BOOT , Replaced By: A0005455945, +001A0035452226
999
SOCKETTO 003 542 46 16,99 16
999
SWITCH , Replaced By: A0005455913
999
PLUG HOUSING 4-POLE, MODULE "V"
999
DIAGRAM PAPER SET100 PIECES
