Поз.
Артикул
Описание
7

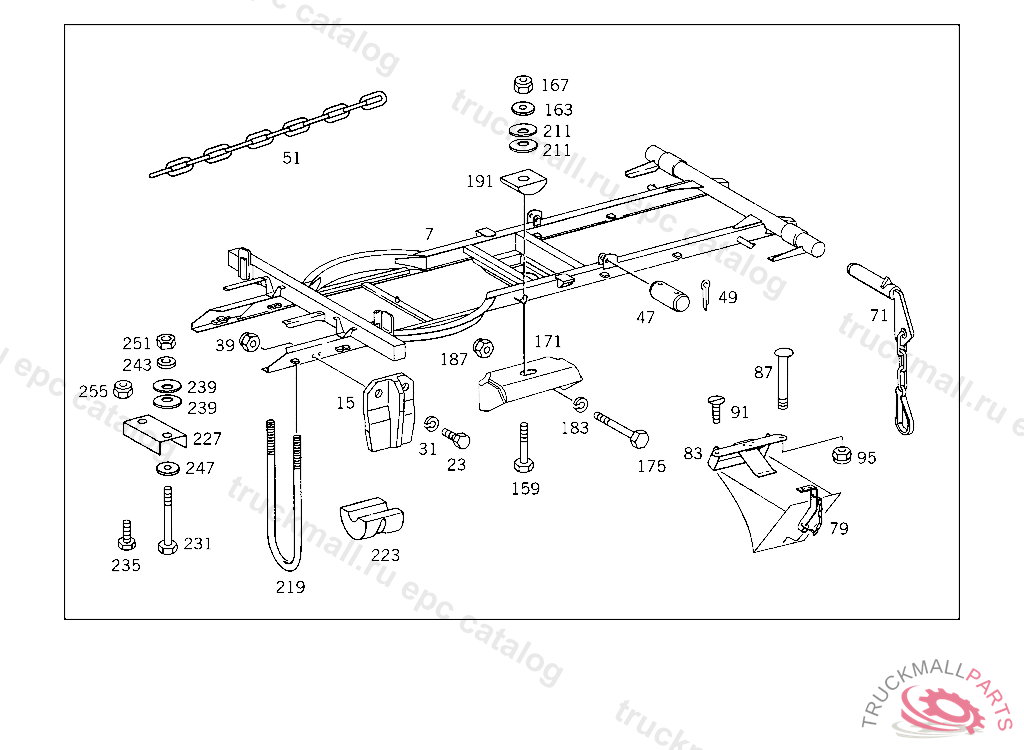

SUBSTRUCTURE (AUXILIARY FRAME), DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICH
7
SUBSTRUCTURE (AUXILIARY FRAME), DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICH
7
SUBSTRUCTURE (AUXILIARY FRAME), DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICH
7
SUBSTRUCTURE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 594728, Replaced By: A6556102701
7
SUBSTRUCTURE (AUXILIARY FRAME), DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICHK 178057
7
SUBSTRUCTURE (AUXILIARY FRAME), DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICHK 178058
15
PLATE (GUIDE PLATE)
23
SCREW , Replaced By: N308676012012
23
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
23
SCREW CONSOLE TO SIDE MEMBER
31
LOCK WASHER FITTING TO BRACKET
39
NUT SUPPORT TO SIDE MEMBER
47
PIN RETAINING ROPE TO DUMPER PLATFORM SUBSTRUCTURE
47
PIN RETAINING ROPE TO DUMPER PLATFORM SUBSTRUCTURE,4 813548
47
PIN RETAINING ROPE TO DUMPER PLATFORM SUBSTRUCTURE,4 813549
49
COTTER PIN6.3X63 MM
49
COTTER PIN6.3X63 MM
49
COTTER PINROCKINGER,TYP 260 G150,260 G140
49
COTTER PINROCKINGER,TYP 260 G150,260 G140
51
CHAIN FOR REAR PANEL
71
COUPLING PIN DUMPING PLATFORM MOUNTING
71
COUPLING PIN DUMPING PLATFORM MOUNTING
79
BRACKET , Replaced By: A3355800290
79
BRACKET FOR CHOCK
83
CLAMP CHOCK FIXTURE
87
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X55
91
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
95
NUT , Replaced By: N913004008001
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
159
SCREW STEERING SUPPORT TO FRAME M 14X50
159
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
159
SCREW , Replaced By: N000961014148
159
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X75
159
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X75
159
SCREW STABILIZER TO BEARING
159
SCREW STEERING SUPPORT TO FRAME M 14X55
159
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
163
WASHER SPARE WHEEL CARRIER
163
WASHER SPARE WHEEL CARRIER
167
NUT , Replaced By: N910113014000
167
NUT STEERING SUPPORT TO FRAME
167
NUT , Replaced By: N910113014001
167
NUT BRACKET TO SIDE MEMBER
171
CONSOLE FRAME,4 404477
171
CONSOLE FRAME,4 404477
171
CONSOLE FRAME,4 404477
171
CONSOLE , Replaced By: A3958910131
171
CONSOLE FRAME
171
CONSOLE FRAME
175
SCREW , Replaced By: N308765016002
175
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
175
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
175
SCREW BRACKET TO SIDE MEMBER
175
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
175
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
175
SCREW BRACKET TO CAB CONSOLE,K 035197
175
SCREW STABILIZER TO BEARING
183
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
187
NUT , Replaced By: N910113016001
187
NUT CONSOLE TO SUPPORT
187
NUT CONSOLE TO SUPPORT
187
NUT , Replaced By: N910113014001
187
NUT BRACKET TO SIDE MEMBER
191
PAD AT CONSOLE,4 785185
191
PAD AT CONSOLE,4 785185
211
DISC SPRING CLAMP TO FRAME,5 521212
219
CLAMP AT FRAME,4 942833
219
CLAMP AT FRAME,4 942833
219
CLAMP , Replaced By: A3358912030
219
CLAMP AT FRAME 385 MM,4 942834
219
CLAMP AT FRAME,4 603466
219
CLAMP AT FRAME,4 603466
219
CLAMP AT FRAME 300 MM,4 603467
219
CLAMP AT FRAME,5 521212
219
CLAMP AT FRAME,5 521212
219
CLAMP AT FRAME,5 521212
219
CLAMP AT FRAME,5 521213
219
CLAMP AT FRAME,5 521213
219
CLAMP AT FRAME,5 521213
219
CLAMP AT FRAME,5 521213
223
BASE CLAMP TO FRAME,5 521212
223
BASE CLAMP TO FRAME,5 521212
223
BASE CLAMP TO FRAME,5 521212
223
BASE CLAMP TO FRAME,5 506056
223
BASE CLAMP TO FRAME,5 506056
223
BASE CLAMP TO FRAME,5 521213
223
BASE CLAMP TO FRAME,5 521213
227
SHIM FRAME,5 506056
227
SHIM FRAME,5 506056
227
SHIM FRAME,5 506056
231
SCREW CLAMP TO FRAME M 14X380
231
SCREW CLAMP TO FRAME,5 506056
231
SCREW CLAMP TO FRAME,5 506056
231
SCREW CLAMP TO FRAME,5 506056
235
SCREW , Replaced By: N308676014020
235
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
239
DISC SPRING CLAMP TO FRAME,5 521212
239
DISC SPRING CLAMP TO FRAME,5 521212
243
WASHER SPARE WHEEL CARRIER
247
WASHER , Replaced By: N000433015005
247
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
251
NUT , Replaced By: N308675014000
251
NUT , Replaced By: N308675014002
251
NUT RELEASE BEARING LUBRICATION
251
NUT CLAMP TO FRAME
251
NUT , Replaced By: N308673014001
251
NUT BRACKET TO SIDE MEMBER,K 035196
255
NUT , Replaced By: N910113014001
255
NUT BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO BUMPER STRUT
999
SUBSTRUCTURE (AUXILIARY FRAME), DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICHK 164029
999
SUBSTRUCTURE (AUXILIARY FRAME), DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICH5 402038
999
GUIDE SIGN TAIL BOARD
999
PLATE AS REQUIRED
999
SUBSTRUCTURE (AUXILIARY FRAME), DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICH
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
