Поз.
Артикул
Описание

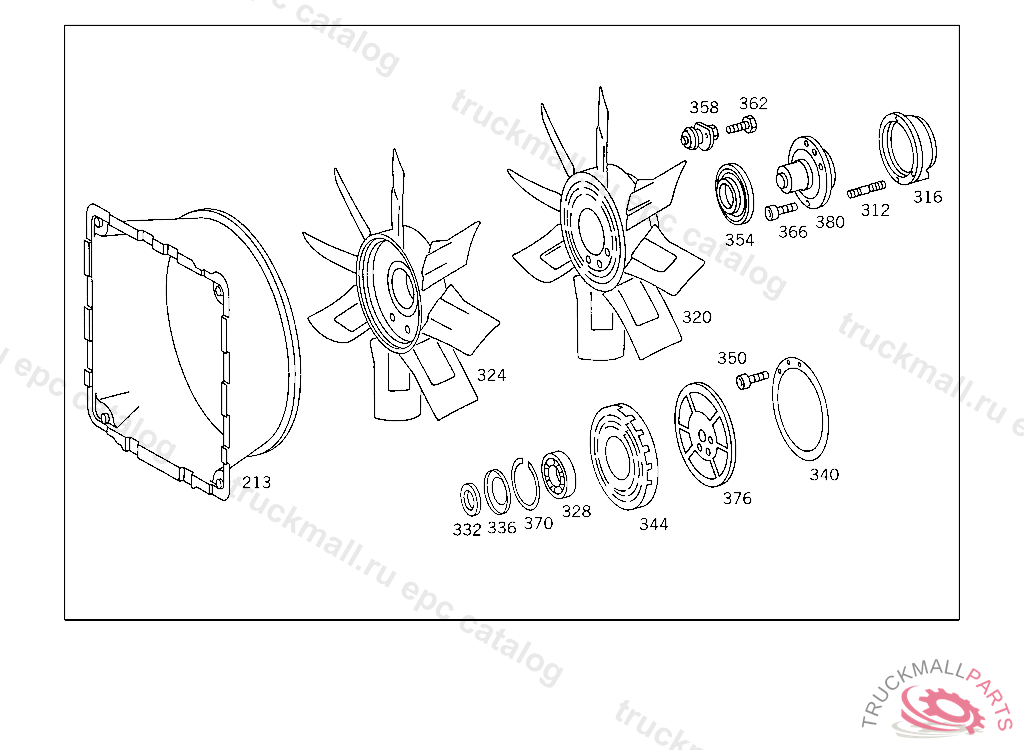

213
FAN SHROUD RADIATOR
312
STUD BOLT FAN,INTERMEDIATE PIECE,AND PULLEY TO HUB OR TO DAMPER,RESP.
316
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
316
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
316
INTERMEDIATE PIECE , Replaced By: A4030350914
320
FAN 8-BLADE,WITH FLEXIBLE FAN HUB, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
320
FAN , Replaced By: A0022056206
320
FAN , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0012059506
324
FANTO 001 205 40 06
328
ANGULAR CONTACT BEARINGTO 001 205 95 06
328
BALL BEARING , Replaced By: A0019816027
328
BALL BEARING
332
SPACER RING
336
GASKET
336
SEAL RING
340
GASKET
340
GASKET , Replaced By: A0002060680
344
COVERTO 001 205 95 06
344
COVERTO 001 205 40 06
350
SCREW
354
SEAL RING
358
CLAMPING PIECE (SLIDE)
362
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
366
SCREW COVER TO FAN TO 001 205 95 06
366
SCREW OIL PIPE TO SLEEVE VALVE
370
LOCK AS REQUIRED 2.3 MM
370
LOCK AS REQUIRED 2.2 MM
370
LOCK AS REQUIRED 2.1 MM
370
LOCK AS REQUIRED 2.0 MM
376
PRIMARY CUPTO 001 205 95 06
376
PRIMARY CUPTO 001 205 40 06
380
FLANGETO 001 205 95 06
380
FLANGETO 001 205 40 06
999
RECEPTACLE SILICONE GREASE
999
BRACKET OIL LINE MOUNTING
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
999
HOSE , Replaced By: A3635060235
999
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
999
HOSE FROM FLANGE TO HEATING PIPE
999
HOSE CONNECTION OF COOLING WATER LINES
999
BRACKET PIPE ELBOW
999
LINE FEED
999
BRACKET FEED LINE TO ENGINE
999
COOLING WATER LINE FEED
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW , Replaced By: N304017006016
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PUMP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: N000000000667
