Поз.
Артикул
Описание

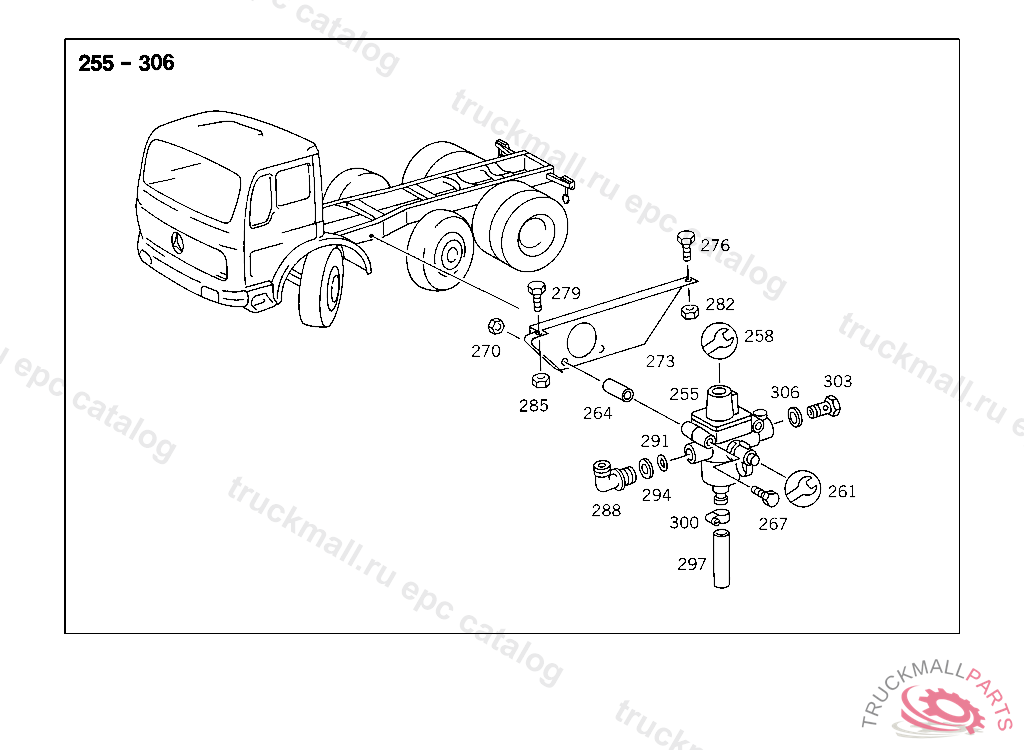

255
PRESSURE REGULATORKNORR
255
PRESSURE REGULATORWABCO
255
PRESSURE REGULATORWABCO, Replaced By: A0034313806
255
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
255
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
258
REPAIR KIT DIAPHRAGM PART BOSCH,209
261
REPAIR KIT PRESSURE REGULATOR WABCO
261
REPAIR KIT PRESSURE REGULATOR BOSCH,241
261
REPAIR KIT SEAL RING BOSCH,209
264
GUIDE BUSHING TWO-WAY VALVE TO FRAME
264
SPACER TUBE , Replaced By: A3094310249
267
SCREW 3/2-WAY VALVE TO BRACKET
267
SCREW , Replaced By: N304014008009
270
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
NUT , Replaced By: N913004008001
273
BRACKET APPARATUS SUPPORT
276
SCREW BRACKET TO FRAME SIDE MEMBER
279
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
282
NUT SUPPORT TO SIDE MEMBER
282
NUT END PIECE TO EXHAUST PIPE
285
NUT STRAP TO BRACKET
285
NUT , Replaced By: N910113010000
288
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
291
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
294
O-RING CHECK VALVE TO AIR RESERVOIR
297
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
300
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
300
CLAMP , Replaced By: N000000000667
303
HOLLOW SCREW HEATING CONNECTION
306
SEAL RING LINE CONNECTION
999
FITTINGWABCO
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KIT PRESSURE REGULATOR KNORR
999
REPAIR KIT , Replaced By: A0024209824, +002A0024209424
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
CONNECTOR REPAIR SIZE
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW. UNION SCREW LINE CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING , Replaced By: A0019908171
999
FITTING RELAY VALVE,CONNECTION: "40",5 359430
999
VALVE (PRESSURE LIMIT VALVE)
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
SEAL RING8X2 MM, 415 5 014668 416 5 000515 417 4 972023
999
SEAL RING4 X 1.50 MM, 415 5 014668 416 5 000515 417 4 972023
999
CHAIN LOCK LINK ,4 652830
999
SEAL RING5X2 MM, 415 5 014668 416 5 000515 417 4 972023
999
STRAP AIR RESERVOIR TO FRAME SIDE MEMBER
999
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
999
CONSOLE AIR RESERVOIR
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
ADHESIVE FOIL GUIDE SIGN
999
WASHER , Replaced By: A4432610076
999
BRAKE HOSE , Replaced By: N916027011014, +001A0004290541, +001N003861012007, +001N074304016201, +001N915017012100, +002N916017016000
999
BRACKET RELAY VALVE
999
BRAKE HOSE , Replaced By: N916027011014, +001A0004290541, +001N003861012007, +001N074304016201, +001N915017012100, +002N916017016000
999
BRACKET BRAKE POWER REGULATOR
999
BRAKE HOSE , Replaced By: N916027011014, +001A0004290541, +001N003861012007, +001N074304016201, +001N915017012100, +002N916017016000
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES,5 329400
999
BRACKET AIR RESERVOIR
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
COTTER PIN STRAP TO CONSOLE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW , Replaced By: N304017008034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW , Replaced By: N308676012012
999
PIN STRAP TO CONSOLE
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
FITTING DIAPHRAGM CYLINDER,CONNECTION:
999
FITTING , Replaced By: A0029979572
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
