Поз.
Артикул
Описание

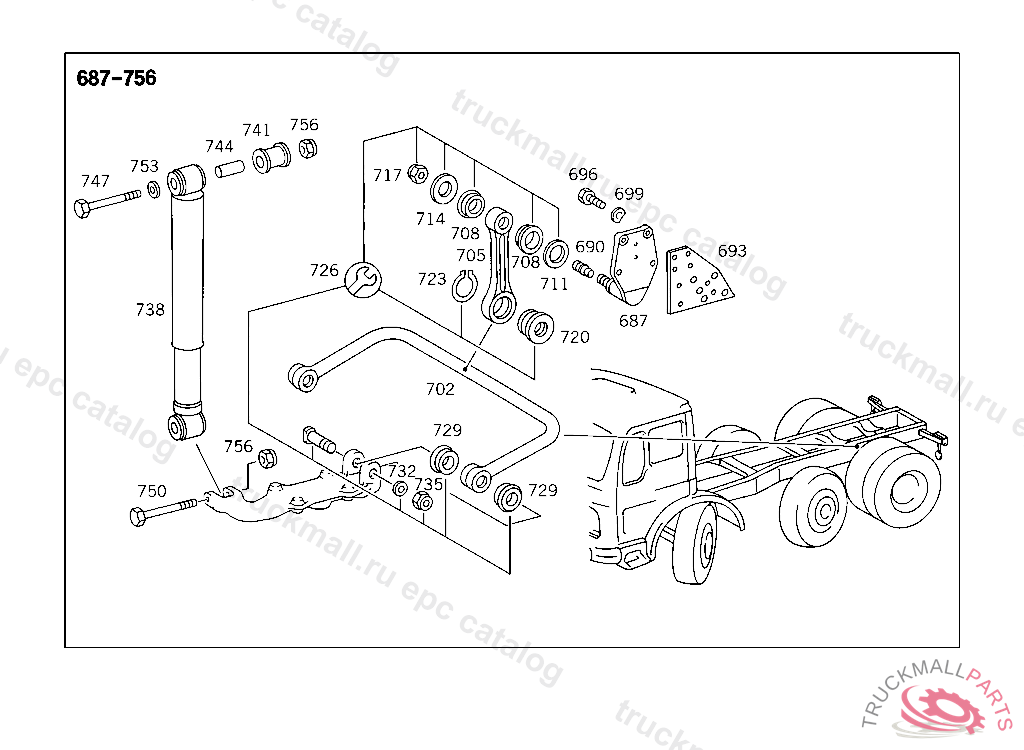

687
BEARING BRACKET SHACKLE TO FRAME,5 904660
687
CONSOLE , Replaced By: A3933261163, +001N000961016081
690
STUD BOLT
693
SHIM CONSOLE TO FRAME
696
SCREW BRACKET TO SUPPORT
699
SPRING WASHER BRACKET TO TIMING CASE
702
TORSION BAR REAR AXLE
705
SHACKLE STABILIZER,5 904660
708
BUSHING SHACKLE TO BEARING BRACKET,5 904660
711
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
714
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
717
NUT COMBINATION CYLINDER TO BEARING BRACKET
717
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
720
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904660
723
LOCK RING SHACKLE TO TORSION BAR,5 904660
726
REPAIR KIT TORSION BAR MOUNTING
729
BUSHING TORSION BAR TO BEARING BRACKET,5 184731
732
WASHER BRACKET TO SPARE WHEEL CARRIER
735
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
735
NUT , Replaced By: N910113018004
738
SHOCK ABSORBER REAR AXLE
738
SHOCK ABSORBER REAR AXLE
741
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
741
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
741
RUBBER BUFFER , Replaced By: A0003233144
744
SPACER RINGTO 002 323 86 00,003 323 03 00,
744
BUSHINGTO 003 326 48 00
747
SCREW SHOCK ABSORBER TO TOP BRACKET
750
SCREW BEARING BRACKET TO INTERMEDIATE PIECE
753
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
756
NUT COMBINATION CYLINDER TO BEARING BRACKET
756
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
SHAFT87 MM
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SPRING CLAMP LOWER PART
999
SPRING CLAMP CENTRAL PART
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
999
SPRING CLAMP UPPER PART
999
SPRING CLAMP UPPER PART
999
SPRING CLAMP CENTRAL PART
999
SPRING CLAMP LOWER PART
999
SHIM BETWEEN THE SPRING LEAVES
999
BRACKET OVERFLOW VALVE,CONNECTION: "10"
999
BRACKET OVERFLOW VALVE,CONNECTION: "20"
999
NUT , Replaced By: N304035008002
999
NUT , Replaced By: N304035008001
999
SCREW GUSSET PLATE TO CROSS MEMBER
999
SCREW SHACKLE TO CONSOLE
999
SEAL RING LINE CONNECTION
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
NUT
999
NUT L.H. THREAD
999
NUT STRAP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
HOLLOW SCREW HEATING CONNECTION
