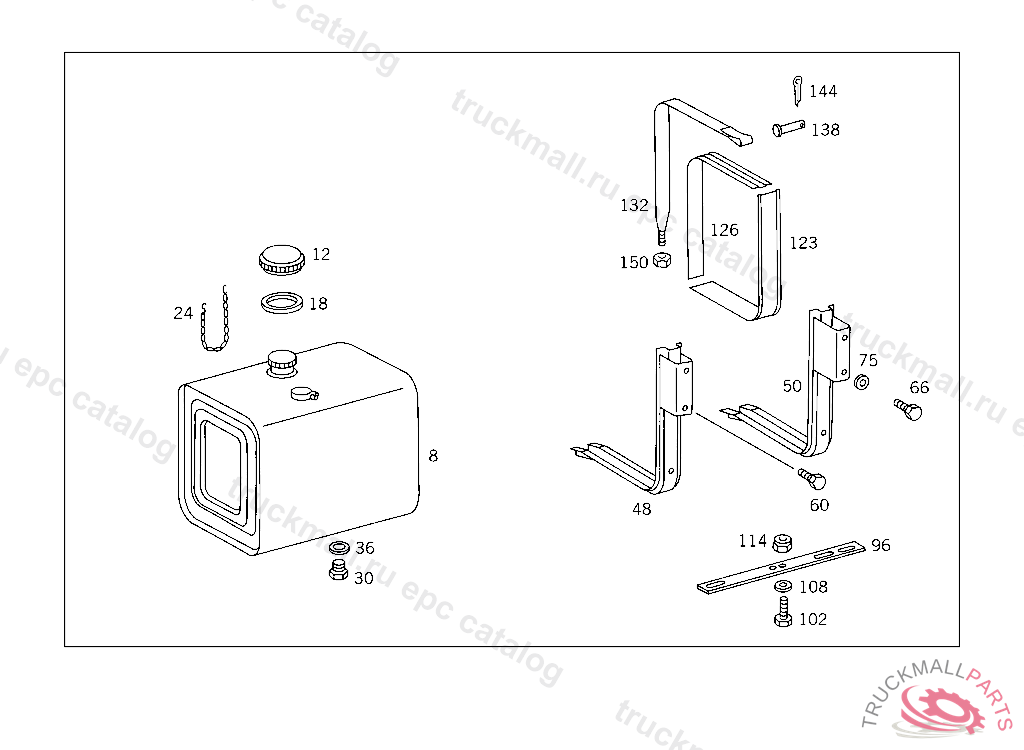

Поз.
Артикул
Описание
12
FILLER CAP , Replaced By: A0004700305
12
FILLER CAP , Replaced By: A0004700305
12
FILLER CAP , Replaced By: A0004700305
12
FILLER CAP
18
SEAL RING
24
CHAIN FILLER CAP
30
SCREW PLUG , Replaced By: N007604014110
30
SCREW PLUG FUEL TANK
36
SEAL RING FUEL LINE TO FEED PUMP
60
SCREW , Replaced By: N308676014020
60
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
126
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
144
COTTER PIN STRAP TO SUPPORT
150
NUT STRAP TO SUPPORT
999
PIN STRAP TO SUPPORT
999
SCREW AT CROSS MEMBER
999
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
999
SUPPORT FRONT FUEL TANK
999
SUPPORT REAR FUEL TANK
999
FUEL TANK
999
STRAP FUEL TANK
999
BASE SUPPORT TO SIDE MEMBER
999
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
