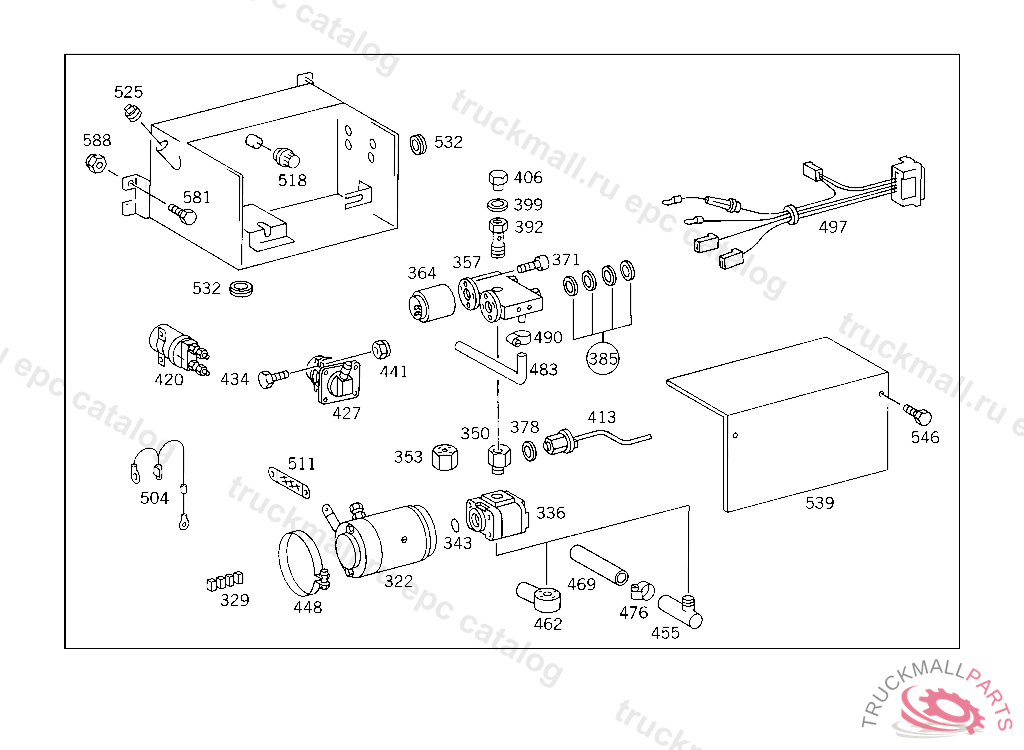

Поз.
Артикул
Описание
322
MOTORSWE
322
MOTORBOSCH
329
CARBON BRUSH PARTS KIT SWE
329
CARBON BRUSH PARTS KIT BOSCH
336
PUMPSWE
336
PUMPBOSCH
343
SEAL RINGSWE
343
SEAL RINGBOSCH
350
VALVE (CHECK VALVE) SWE
353
VALVE (CHECK VALVE) BOSCH
357
VALVE (CONTROL VALVE)
357
VALVE , Replaced By: A0005504355
364
MAGNET
371
SCREW
378
SEAL RINGTO 006 997 00 72
385
SEAL RING PARTS KIT SWE
392
HOLLOW SCREW SOLENOID VALVE
399
SEAL RING SOLENOID VALVE
406
SCREW PLUG
406
SCREW , Replaced By: A0019976130
413
SWITCH (PRESSURE SWITCH) 140 BAR
420
COIL , Replaced By: A0005450967
427
CONTACTOR
427
COIL , Replaced By: A0005450967
434
SCREW IN CASE OF SUBSEQUENT INSTALLATION
441
NUT TWO-WAY VALVE TO BRACKET
448
BRACKET ENGINE
455
LINE OIL TANK SWE
462
LINE OIL TANK BOSCH
469
HOSE
476
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
476
CLAMP , Replaced By: N000000000667
483
HOSE FROM OIL TANK TO SOLENOID VALVE
490
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
490
CLAMP , Replaced By: N916017011001
497
CABLE HARNESS ELECTRIC
504
CONTROL UNIT THERMAL SWE
511
GROUND STRAP ENGINE SWE
518
FILTER HOUSING OIL TANK
525
SCREW PLUG OIL TANK
532
GROMMET OIL TANK
532
GROMMET , Replaced By: A6999970181
539
COVER SWITCH BOX
546
SCREW CAB FLOOR COVERING M 6X25
581
SCREW BRACKET TO SIDE MEMBER
581
SCREW , Replaced By: N304017010002
581
SCREW END PIECE TO EXHAUST PIPE M 10X25
588
NUT STRAP TO BRACKET
588
NUT , Replaced By: N910113010000
999
SHACKLE LEFT
999
SHACKLE RIGHT
999
CYLINDER
999
COVER SWITCH BOX
999
GASKET COVER TO SWITCH BOX
999
PIPE SOLENOID VALVE
999
PIN , Replaced By: A0003900050
999
BUSHING , Replaced By: A0003900050
999
SCREW CONNECTION SOLENOID VALVE
999
VALVE , Replaced By: A0005505355
999
VALVE (CONTROL VALVE)
999
GREASE NIPPLE
999
SCREW DETENT
999
PLUG , Replaced By: N000908010004
999
PLUG OIL TANK
999
RUBBER BUFFER SWINGING LINK
999
ANGLE , Replaced By: A3464295540
999
SWINGING LINK FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 648.111
999
OIL LINE , Replaced By: A0002610283
999
OIL LINE , Replaced By: A0002610283
999
OIL LINE , Replaced By: A0002610283
999
OIL LINE , Replaced By: A0002610283
999
BRACKET AXLE STOP TO FRAME
999
AXLE SUSPENSION LIFTING DEVICE USED FOR TRAILING AXLE
999
HYDRAULIC UNIT
999
SWINGING LINK COMPLETE
999
CYLINDER
999
SCREW PLUG, FILLING HOUSING,BOTTOM
999
WASHER SENSOR CABLE TO REAR AXLE,LEFT AND RIGHT
999
SCREW PLUG , Replaced By: N000000000648
999
SCREW RUBBER MOUNTING TO FRONT CONSOLE
999
CONNECTION FITTING , Replaced By: A0049971672
