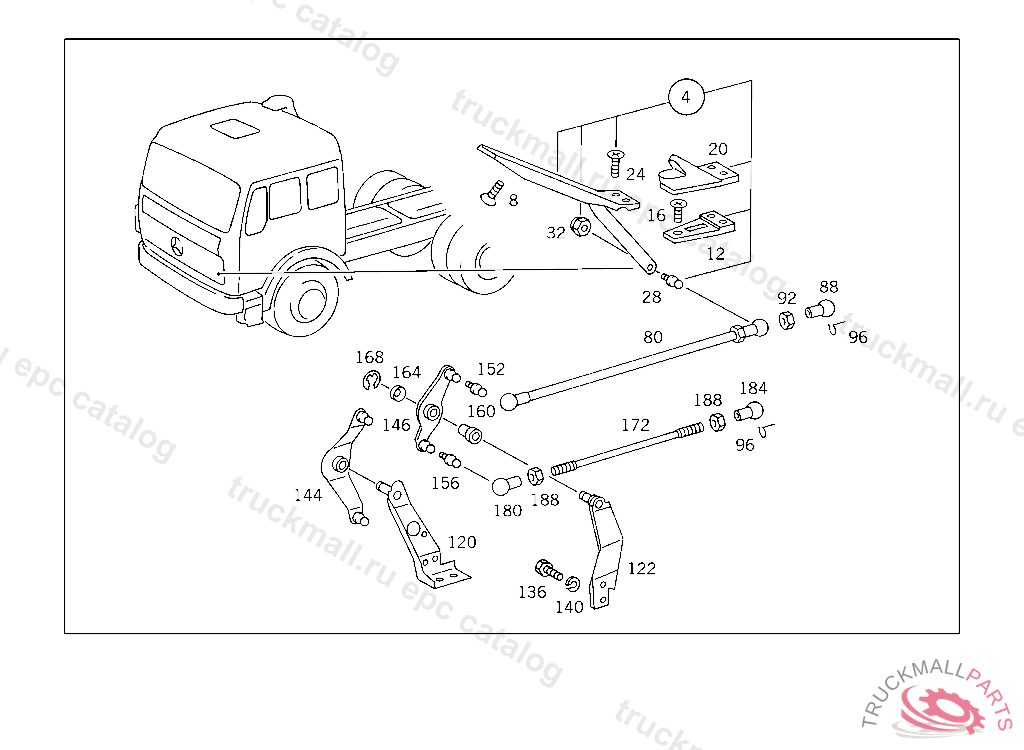

Поз.
Артикул
Описание
4
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
SCREW ACCELERATOR PEDAL
12
SHIM ACCELERATOR PEDAL
16
SCREW PEDAL TO CAB FLOOR
20
BOOT ACCELERATOR PEDAL
24
SCREW ACCELERATOR PEDAL TO CAB M 6X25
28
BALL PIVOT LOAD SENSOR
32
NUT PUMP TO BRACKET
32
NUT , Replaced By: N913004006001
80
ROD LOAD SENSOR CONTROL
88
BALL SOCKET PULL ROD TO LEVER
92
NUT BALL PIVOT TO LEVER
96
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
122
BEARING BRACKET INTERMEDIATE BEARING,5 324164
122
BEARING BRACKET ,5 324163, Replaced By: A6203000736, +002A6153010088
136
SCREW BRACKET TO CROSS CONNECTION STRUT
136
SCREW , Replaced By: N304017008034
140
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
146
LEVER INTERMEDIATE BEARING
146
LEVER ,5 370188 NEW DOUBLE LEVER TO BE INSTALLED WITH LOWER BALL HEAD POINTING AWAY FROM BRACKET, PULL ROD TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6203001328, +001N900331008421
152
BALL STUD. BALL PIVOT TOP B10X4,5 MM
156
BALL PIVOT BOTTOM B13X5 MM
160
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
160
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
164
COVERING INTERMEDIATE BEARING
168
LOCK PLATE INTERMEDIATE BEARING
172
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
180
BALL SOCKET ROD TO BALL PIVOT
184
BALL SOCKET ROD TO BALL PIVOT
188
NUT
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
