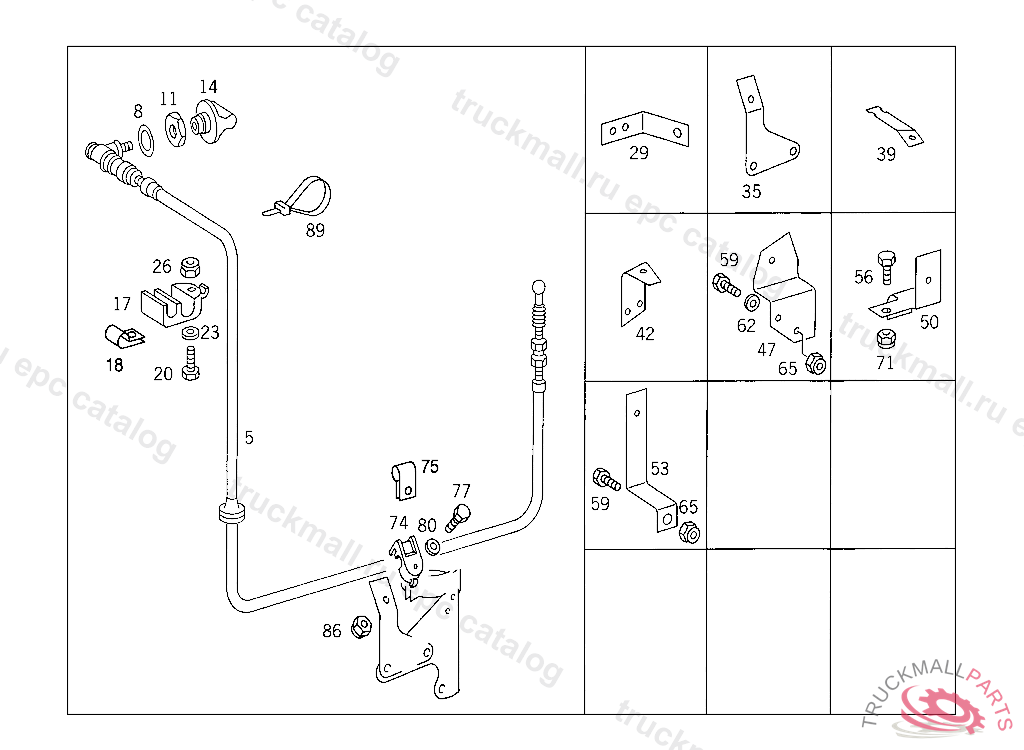

Поз.
Артикул
Описание
5
WIRE CABLE MANUAL CONTROL
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
8
FITTED WASHER WIRE CABLE TO INSTRUMENT PANEL
11
NUT WIRE CABLE TO INSTRUMENT PANEL
14
KNOB IDLING ADJUSTMENT
17
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
18
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
18
CLAMP ,K 147121, Replaced By: N000000000319
20
SCREW , Replaced By: N000000001149
20
SCREW , Replaced By: A0029903712
20
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
23
WASHER COMPRESSED AIR LINE TO BRACKET
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
29
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET, TO BE ADAPTED DURING ASSEMBLY
35
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
35
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
74
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
75
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
75
SCREW , Replaced By: N000000001149
75
SCREW , Replaced By: A0029903712
75
CLAMP ,K 147121, Replaced By: N000000000319
77
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
80
WASHER COMPRESSED AIR LINE TO BRACKET
80
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
86
NUT , Replaced By: N913004006001
86
NUT PUMP TO BRACKET
89
LOOM TIE LINE MOUNTING 280 MM
89
LOOM TIE LINE MOUNTING
