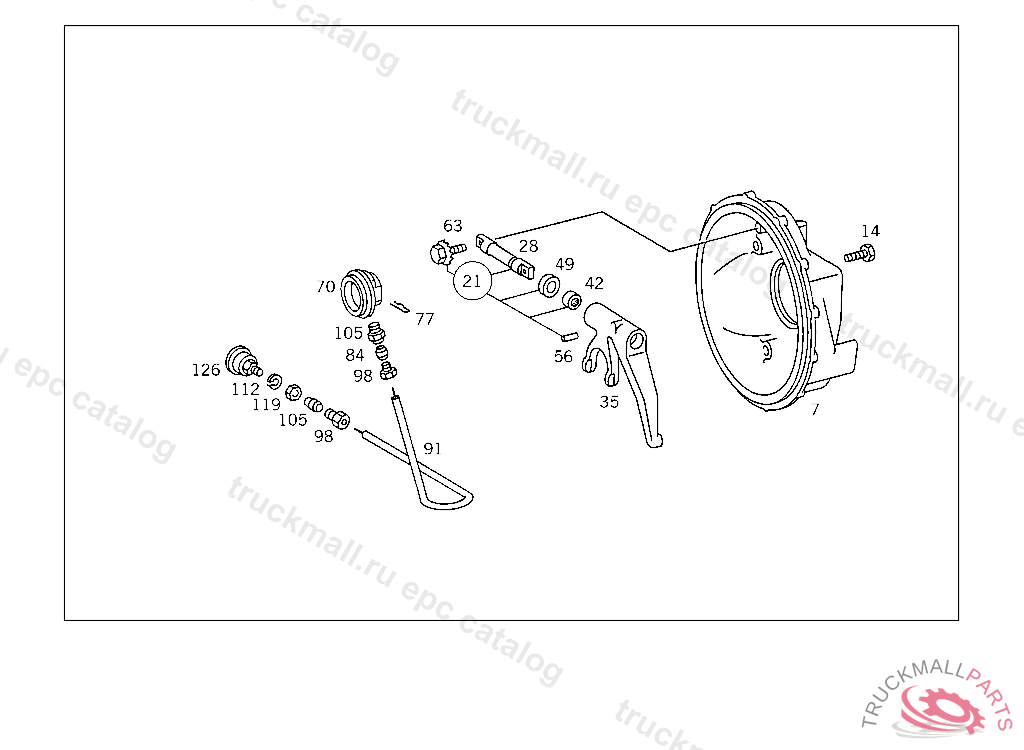

Поз.
Артикул
Описание
7
BELL HOUSING
7
BELL HOUSING
14
SCREW REAR EXHAUST PIPE TO MUFFLER
21
SHAFT (PARTS KIT),RELEASE SHAFT
28
SHAFT (CLUTCH RELEASE SHAFT)
35
RELEASE LEVER ,5 418252
35
RELEASE LEVER , Replaced By: A6152540708
42
NEEDLE BEARING RELEASE LEVER
49
SEAL RING RELEASE LEVER
56
CLAMPING SLEEVE RELEASE LEVER
63
SCREW RELEASE LEVER TO BELL HOUSING
70
RELEASE BEARING , Replaced By: A0002507015, +001N071428004100
70
RELEASE BEARING
77
SPRING RELEASE LEVER TO RELEASE BEARING
84
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
91
HOSE RELEASE COLLAR LUBRICATION 220 MM
98
UNION SCREW RELEASE COLLAR LUBRICATION
105
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
112
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
119
NUT
126
GREASE NIPPLE RELEASE COLLAR LUBRICATION
126
GREASE NIPPLE , Replaced By: A6209970088, +001A6209880135
999
SCREW , Replaced By: N304017008053
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
