Поз.
Артикул
Описание

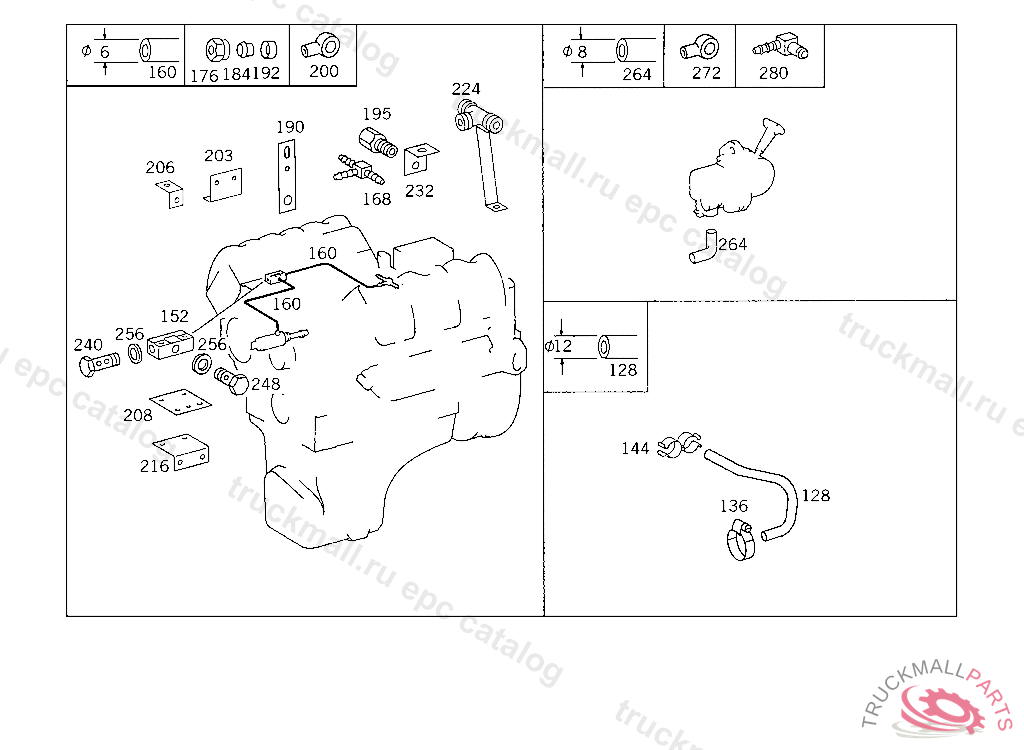

128
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
128
BRAKE HOSE FROM FITTING TO REAR AXLE ONE-CIRCUIT PISTON CYLINDER 450 MM
128
HOSE , Replaced By: A0009872827
136
CLAMP HOSE TO FITTING
144
LOOM TIE BRAKE LINE MOUNTING
152
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
160
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
160
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
160
PLASTIC PIPE RISING PIPE 4X6 MM
168
T-FITTING EXHAUST BRAKE LINE CONNECTION
176
UNION NUT
184
GLAND , Replaced By: A0019901667
184
SEAL CONE
190
BRACKET LINE MOUNTING
192
SLEEVE LEAK LINE
195
ADAPTER FITTING LINE CONNECTION TO ENGINE
200
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
200
BANJO UNION , Replaced By: N000000000364
203
BRACKET 3/2-WAY SOLENOID VALVE
203
BRACKET LINE MOUNTING
206
BRACKET LINE MOUNTING
208
BRACKET LINE MOUNTING
208
BRACKET LINE MOUNTING
216
BRACKET LINE MOUNTING
216
BRACKET LINE MOUNTING
224
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT
232
ANGLE LINE MOUNTING
240
HOLLOW SCREW LINE CONNECTION
240
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
248
HOLLOW SCREW HEATING CONNECTION
248
HOLLOW SCREW FUEL LINE TO FEED PUMP
248
HOLLOW SCREW , Replaced By: N915036010108
256
SEAL RING FUEL LINE TO FEED PUMP
256
SEAL RING LINE CONNECTION
264
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
272
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
272
BANJO UNION HEATING CONNECTION,K 169122
272
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
280
ELBOW FITTING , Replaced By: A0049905371
280
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
