Поз.
Артикул
Описание

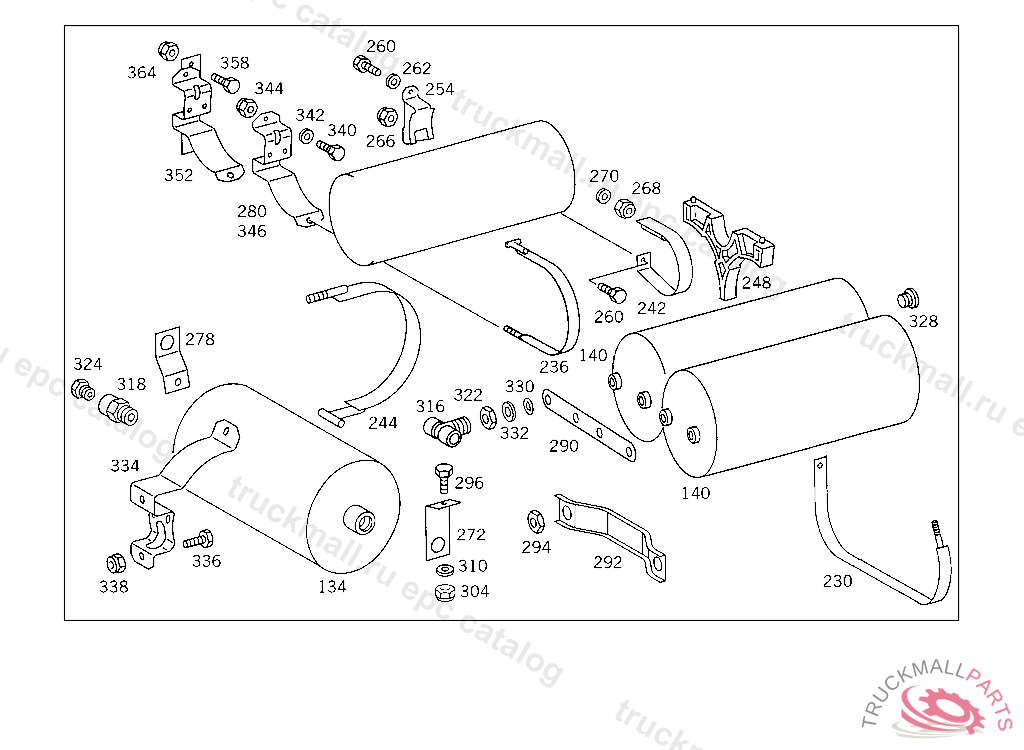

134
COMPRESSED AIR RESERVOIR. RESERVOIR6 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR:ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
134
RESERVOIR , Replaced By: A0054322001, +001A0009870446, +001A0009940203, +001A0049978272
134
RESERVOIR ,5 934167, Replaced By: A0034320601
140
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034322101
140
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0024320801
140
RESERVOIR ,5 934167, Replaced By: A0034322501, +001A6554320073
140
RESERVOIR40L,276 MM,8.5 BAR
140
RESERVOIR30L,276 MM,8.5 BAR
230
STRAP AIR RESERVOIR
230
STRAP AIR RESERVOIR
236
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
236
STRAP AIR RESERVOIR TO BRACKET
242
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
244
STRAP PARTICLE FILTER
244
STRAP , Replaced By: A6554900942
244
STRAP , Replaced By: A6214900242
244
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
248
BASE AIR RESERVOIR TO APPARATUS SUPPORT, BOTTOM
254
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
260
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
260
SCREW BRACKET TO SIDE MEMBER
260
SCREW , Replaced By: N304017012020
260
SCREW , Replaced By: A0099900101
260
SCREW , Replaced By: N304017008040
260
SCREW , Replaced By: N000933008337
260
SCREW END PIECE TO EXHAUST PIPE M 12X30
262
WASHER , Replaced By: N000125008443
262
WASHER EXHAUST MUFFLER TO STRAP
266
NUT , Replaced By: N913004008001
266
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
268
NUT SUPPORT TO SIDE MEMBER
270
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
270
WASHER , Replaced By: N000125015019
272
BRACKET , Replaced By: A6554318840
272
BRACKET AT APPARATUS SUPPORT
278
BRACKET , Replaced By: A6554318740
278
BRACKET AT APPARATUS SUPPORT
280
BRACKET CLUTCH BOOSTER AIR RESERVOIR
290
LOCK PROTECTION AGAINST TORSION,5 934167
292
LOCK (PROTECTION AGAINST TORSION),5 934168
294
HOLLOW SCREW AIR DEHYDRATOR,CONNECTION: "21"
296
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
296
SCREW BRACKET TO SIDE MEMBER
296
SCREW REAR EXHAUST PIPE TO MUFFLER
296
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
296
SCREW , Replaced By: N304017010002
296
SCREW , Replaced By: N910105010009
296
SCREW END PIECE TO EXHAUST PIPE M 10X25
304
NUT , Replaced By: N910113010000
304
NUT STRAP TO BRACKET
304
NUT EXHAUST PIPE TO SIDE MEMBER
310
WASHER RADIATOR TO RUBBER MOUNTING
310
WASHER , Replaced By: N000125010532
316
T-FITTING LINE CONNECTION
318
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
322
NUT CHECK VALVE TO AIR RESERVOIR
324
SCREW. UNION SCREW LINE CONNECTION
328
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
328
SCREW PLUG , Replaced By: N000908022011
330
O-RING CHECK VALVE TO AIR RESERVOIR
332
THRUST RING CHECK VALVE TO AIR RESERVOIR
332
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
334
BRACKET AIR RESERVOIR TO CROSS MEMBER
336
SCREW , Replaced By: N304017008027
336
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
338
NUT , Replaced By: N913004008001
338
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
340
SCREW , Replaced By: N308676012026
340
SCREW , Replaced By: N308676012012
340
SCREW , Replaced By: N304017010002
340
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
340
SCREW BRACKET TO LEFT SIDE MEMBER
340
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
340
SCREW BRACKET TO SIDE MEMBER
340
SCREW REAR EXHAUST PIPE TO MUFFLER
340
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
342
WASHER BRACKET TO LEFT SIDE MEMBER
344
NUT END PIECE TO EXHAUST PIPE
344
NUT , Replaced By: N910113010000
344
NUT STRAP TO BRACKET
344
NUT SUPPORT TO SIDE MEMBER
346
BRACKET CLUTCH BOOSTER AIR RESERVOIR
352
BRACKET AIR RESERVOIR,5 765578
358
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
358
SCREW , Replaced By: N308676014020
358
SCREW , Replaced By: N304017008021
358
SCREW PIPE CLAMP
358
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
364
NUT BRACKET TO SIDE MEMBER
364
NUT , Replaced By: N910113014001
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
BRACKET , Replaced By: A6205240340
999
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
999
BASE AIR RESERVOIR STRAP
999
BRACKET AT APPARATUS SUPPORT
999
BRACKET FUEL LINE TO BELL HOUSING
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
999
BRACKET AIR DEHYDRATOR,5 433280
999
STRAP SERVICE BRAKE AIR RESERVOIR
999
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
999
WASHER , Replaced By: A3609902340
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
999
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
999
RESERVOIR5.6L,114,3 MM,10 BAR
999
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
