Поз.
Артикул
Описание

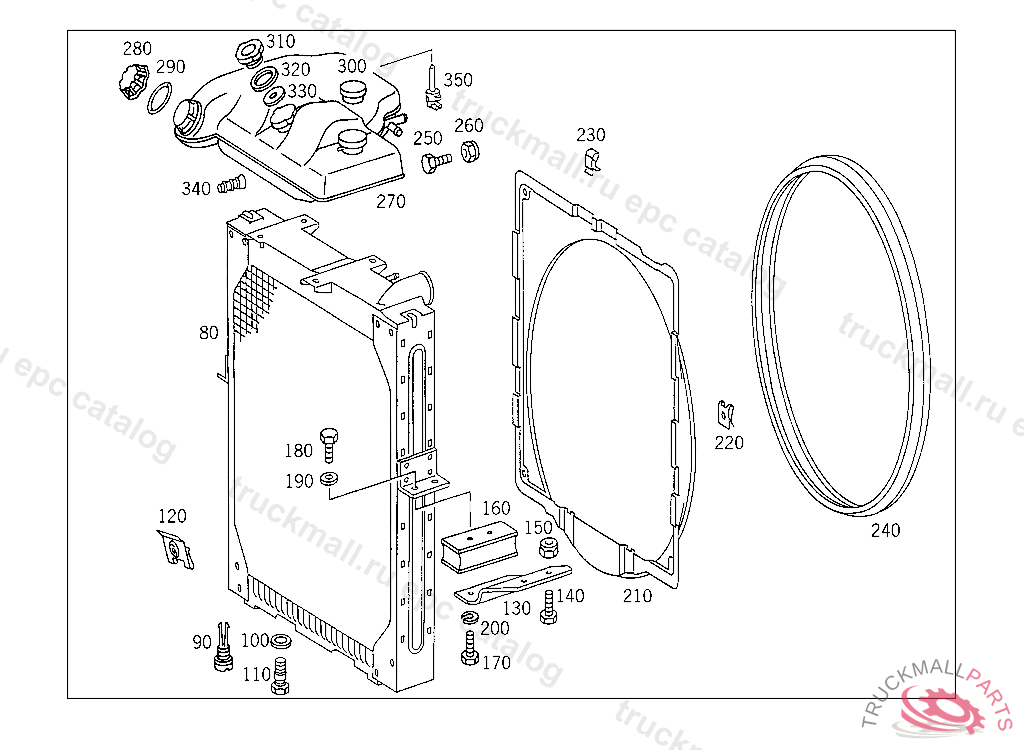

80
RADIATOR WATER,5 523343
80
RADIATOR WATER
80
RADIATOR WITH SCREW FITTING
80
RADIATOR ,5 523342
80
RADIATOR , Replaced By: A6505011201
80
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 906164, Replaced By: A6505010601
80
RADIATOR , Replaced By: A6525016501
80
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 752618, Replaced By: A6555002103
80
RADIATOR , Replaced By: A6525014501
80
RADIATOR , Replaced By: A6525014501
90
SCREW WATER DRAIN
100
GASKET COOLING WATER DRAIN TO 656 500 00 03
110
SCREW WATER DRAIN
110
SCREW , Replaced By: A0005000085
120
LOCK
130
SUPPORT RADIATOR,LEFT,K 096749
130
SUPPORT RADIATOR,LEFT,K 096750
140
SCREW CONSOLE TO SIDE MEMBER
150
NUT SUPPORT TO SIDE MEMBER
160
RUBBER MOUNTING RADIATOR
170
SCREW , Replaced By: N304017010028
170
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
180
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
190
WASHER , Replaced By: N000125010532
190
WASHER RADIATOR TO RUBBER MOUNTING
200
SPRING WASHER STEERING COLUMN BRACKET TO CAB
210
FAN SHROUD RADIATOR
210
FAN SHROUD RADIATOR
210
FAN SHROUD RADIATOR
220
DETENT FAN SHROUD TO RADIATOR
230
LOCK , Replaced By: N912002008003
230
LOCK PULL TO FASTENER
240
BOOT FAN SHROUD TO FAN RING
240
BOOT FAN SHROUD TO FAN RING
250
SCREW BRACKET ON LOAD SENSOR
260
NUT PUMP TO BRACKET
260
NUT , Replaced By: N913004006001
270
TANK COOLING WATER EXPANSION
280
RADIATOR CAP , Replaced By: A0005016415
280
RADIATOR CAP FILLER NECK
290
SEAL RING
300
RADIATOR CAP
310
RADIATOR CAP CENTRAL
310
RADIATOR CAP CENTRAL
320
GASKET O.D., 52 MM
330
GASKET O.D., 37 MM
340
DRAIN PIPE
350
SENDER UNIT COOLING WATER LEVEL INDICATOR
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
CLAMP FEED LINE TO THERMOSTAT
999
RUBBER MOUNTING RADIATOR
999
BOOT FAN SHROUD TO FAN RING
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
RADIATOR , Replaced By: A6525010301
999
HOSE FROM RADIATOR TO THERMOSTAT
999
HOSE DE-AERATION PIPE TO EXPANSION TANK
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE FROM RADIATOR TO THERMOSTAT
999
RADIATOR , Replaced By: A6505010701
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM EXPANSION TANK TO WATER PUMP
999
HOSE FROM EXPANSION TANK TO RADIATOR
999
RADIATOR WITH SCREW FITTING,5 501912
999
SUPPORT RADIATOR,LEFT,K 096750
999
SUPPORT RADIATOR,RIGHT,K 096750
999
SUPPORT RADIATOR,LEFT,K 096750
999
SUPPORT RADIATOR,RIGHT,K 096750
999
FAN SHROUD RADIATOR
999
FAN SHROUD RADIATOR
999
SCREW , Replaced By: A6739900032
999
PLATE FROM EXPANSION TANK TO RADIATOR 48X40 MM
999
BREATHER PIPE ENGINE BREATHING
999
PIPE ELBOW , Replaced By: A6555010756
999
BRACKET FEED LINE TO THERMOSTAT
