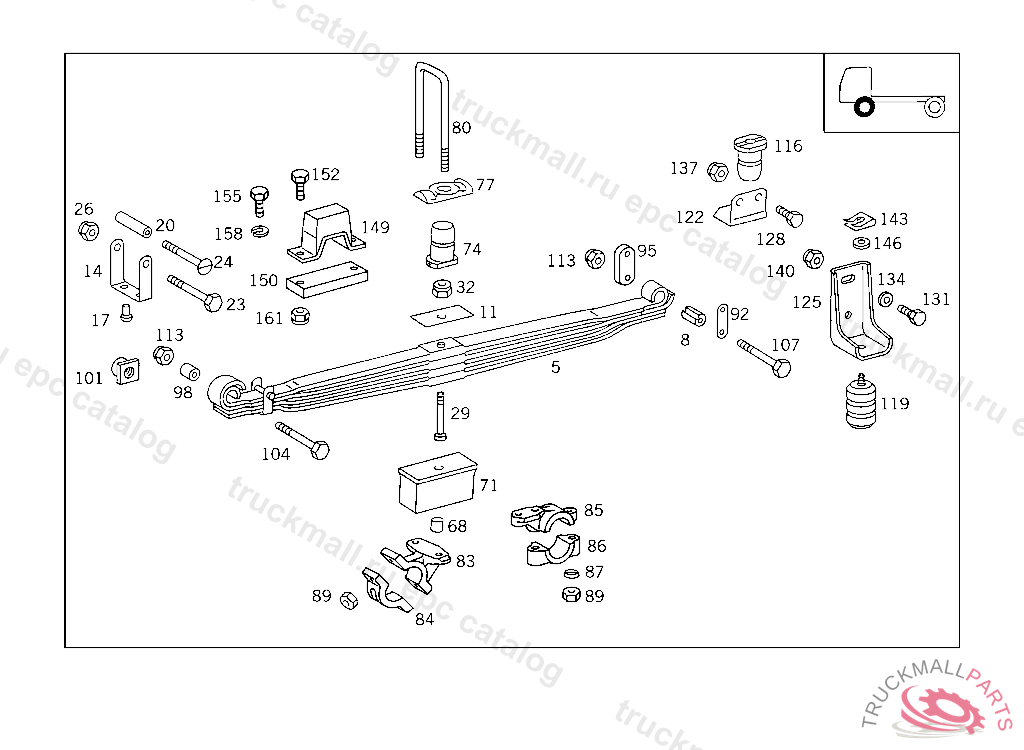

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
8
RUBBER MOUNTING
8
RUBBER MOUNTING
11
SHIM BETWEEN THE SPRING LEAVES
14
SPRING CLAMP
14
SPRING CLAMP , TO BE ADAPTED DURING ASSEMBLY
17
RIVET SPRING CLAMP TO SPRING LEAF
20
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
24
SCREW SPRING CLAMP
29
SPRING BOLT
32
HEXAGON NUT. NUT SPRING BOLT
32
NUT , Replaced By: N910113012005
68
DOWEL PIN (CENTERING CONE)
71
SHIM BETWEEN SPRING AND FRONT AXLE
77
PLATE FRONT SPRINGS TO FRONT AXLE
80
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
85
BEARING BRACKET TORSION BAR TO BEARING BRACKET,5 903514
86
BEARING SHELL TORSION BAR TO BEARING BRACKET,5 903514
87
WASHER FRONT SPRINGS TO FRONT AXLE
89
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
92
SHACKLE OUTSIDE
95
SHACKLE INSIDE
101
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
107
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
107
SCREW REAR SPRING AND SHACKLE TO SPRING BRACKET
119
RUBBER SPRING SPRING STOP TO FRAME BOTTOM SIDE
125
BRACKET RUBBER SPRING
131
SCREW , Replaced By: A9429901304
131
SCREW APPARATUS SUPPORT TO FRAME
134
WASHER , Replaced By: N000125015019
134
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
140
NUT , Replaced By: N910113014000
140
NUT STEERING SUPPORT TO FRAME
143
LOCK RUBBER SPRING TO BRACKET
146
WASHER
149
RUBBER MOUNTING AXLE STOP
152
SCREW END PIECE TO EXHAUST PIPE M 10X25
155
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
158
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
161
NUT STRAP TO BRACKET
161
NUT , Replaced By: N910113010000
