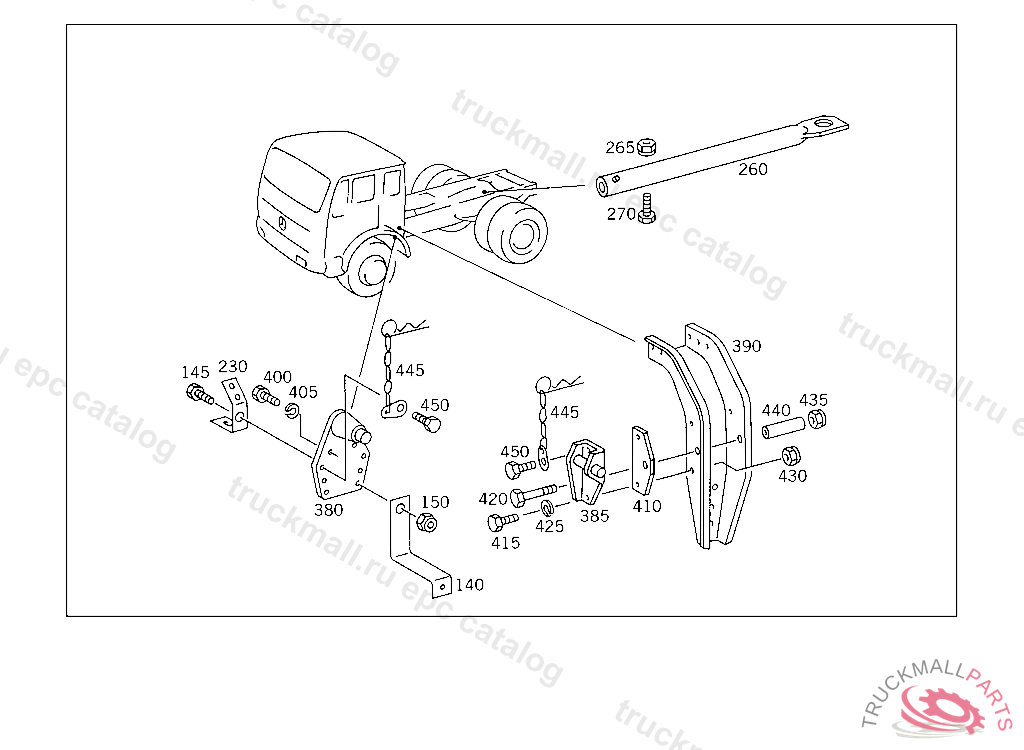

Поз.
Артикул
Описание
140
BRACKET LINE MOUNTING
145
SCREW LOCK TO BEARING BRACKET
150
NUT BRACKET TO SIDE MEMBER
150
NUT , Replaced By: N910113014001
230
BRACKET FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE
260
STAY CAB RETAINING
260
STAY CAB RETAINING
265
NUT , Replaced By: N913004008001
265
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
SCREW BRACKET TO CAB CONSOLE,K 035197
380
BEARING BRACKET HYDRAULIC CYLINDER TO CAB
385
MOUNTING HYDRAULIC CYLINDER
385
MOUNTING HYDRAULIC CYLINDER
390
CONSOLE , Replaced By: A3878911731
390
CONSOLE CAB SUSPENSION,REAR
390
CONSOLE REAR LEFT
390
CONSOLE REAR LEFT
390
CONSOLE ADDITIONAL WORK ON FRAME
400
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
400
SCREW , Replaced By: N308676014003
400
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
405
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
410
BASE BEARING BRACKET TO CONSOLE
415
SCREW APPARATUS SUPPORT TO FRAME
415
SCREW , Replaced By: A9429901304
420
SCREW BEARING BRACKET TO CONSOLE
425
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
430
NUT STEERING SUPPORT TO FRAME
430
NUT , Replaced By: N910113014000
435
NUT , Replaced By: N910113018004
435
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
440
SPACER TUBE SHOCK ABSORBER TO CONSOLE
445
LOCK CAB RETAINING STRUT
450
SCREW LOCK TO BEARING BRACKET
999
PIN PULL TO FASTENER
999
BUSHING LEVER TO CAB
999
ROD CENTRAL LOCK
999
SEAL ROD THRU CAB
999
BRACKET ROD THRU CAB
999
HANDLE CAB LOCKING MECHANISM
999
LEVER CAB LOCKING MECHANISM
999
SUPPORT
999
SHIM BEARING BRACKET TO FRAME
999
SCREW , Replaced By: N304017008034
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP LINE MOUNTING
