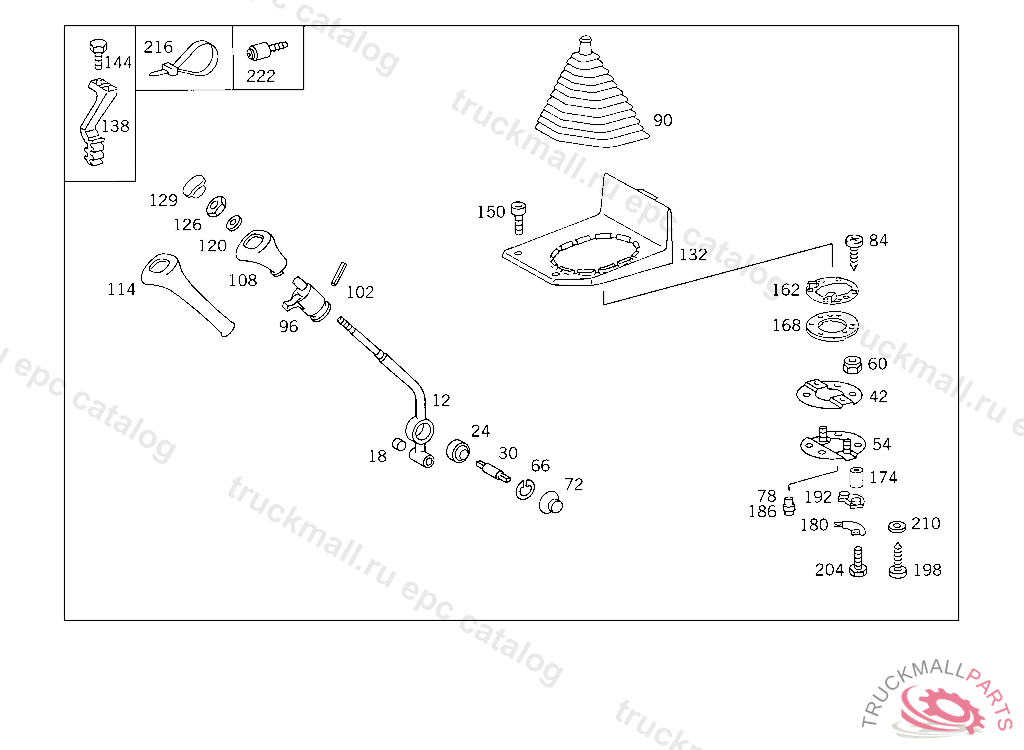

Поз.
Артикул
Описание
12
SHIFT LEVER
12
SHIFT LEVER
18
BUSHING PAWL TO ROD END,5 443047
24
JOINT BEARING SHIFT LEVER BEARING,K040603
24
JOINT BEARING SHIFT LEVER BEARING,K040603
30
PIN SHIFT LEVER BEARING,K040603
42
BRACKET SHIFT LEVER UPPER PART,K040603
54
BRACKET SHIFT LEVER LOWER PART,K040603
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
NUT , Replaced By: N913004008001
66
LOCK RING SHIFT LEVER BEARING
72
BOOT SHIFT LEVER BEARING
78
BUSHING COMPRESSED AIR LINE THRU CAB FLOOR,K040603
84
SHEET METAL SCREW BRACKET TO FLOOR PLATE
84
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
90
BOOT SHIFT LEVER
90
BOOT SHIFT LEVER
96
VALVE SHIFT LEVER HERION
96
VALVE GEARSHIFT LEVER LOWER PART WABCO
102
CLAMPING SLEEVE (SHIFT LEVER VALVE)
108
HANDLE (SHIFT LEVER HANDLE)
114
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
120
WASHER RADIATOR TO RUBBER MOUNTING
126
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
126
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
126
NUT , Replaced By: N308673010000
129
COVER COVERING TO CAB
132
COVERING BOOT TO CAB
138
BRACKET LINE MOUNTING
144
SCREW COVER PLATE TO COVER PLATE M 6 X 12
144
SCREW , Replaced By: N304017006018
150
SCREW , Replaced By: A1249900520
150
SCREWM 6X16
162
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
168
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
174
TUBE. BUSHING CAB FLOOR COVERING
180
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
186
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
192
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
198
SHEET METAL SCREW BRACKET TO CAB
204
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
204
SCREW SUPPORT TO FENDER
204
SCREW , Replaced By: N304017008018
204
SCREW , Replaced By: N000933008337
204
SCREW , Replaced By: A0099900101
210
WASHER , Replaced By: N000125008443
210
WASHER EXHAUST MUFFLER TO STRAP
216
LOOM TIE LINE MOUNTING 280 MM
222
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
