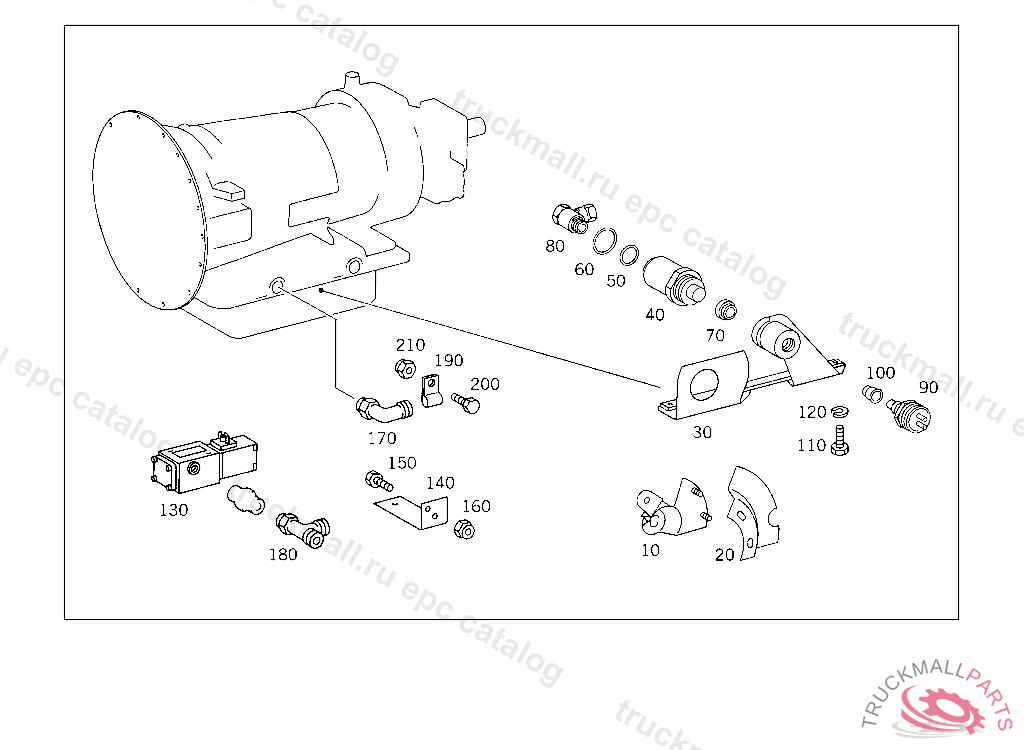

Поз.
Артикул
Описание
10
LEVER LOWER PART
20
LEVER UPPER PART
30
BRACKET CYLINDER
40
CYLINDER SHIFTING LOCK
50
SEAL RING
60
SEAL RING
70
SEAL RING
80
SCREW CONNECTION LINE MOUNTING
90
SWITCH RANGE SELECTOR LOCK
100
BOOT SWITCH
110
SCREW BRACKET TO OIL PAN
110
SCREW , Replaced By: A1249904601
120
LOCK WASHER RAIL TO BATTERY SUPPORT
130
VALVE 3/2-WAY
130
VALVE , Replaced By: A0002702989
140
BRACKET 3/2-WAY VALVE
150
SCREW , Replaced By: N304017008021
150
SCREW PIPE CLAMP
160
NUT , Replaced By: N913004008001
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
ELBOW FITTING MAIN HYDRAULIC CONNECTION
180
FITTING
190
CLAMP ,K 147121, Replaced By: N000000000319
190
CLAMP , Replaced By: N916016008200
190
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
200
SCREW PUMP TO BRACKET
200
SCREW , Replaced By: N304017006016
210
NUT , Replaced By: N913004006001
210
NUT PUMP TO BRACKET
999
VALVE REPAIR KIT TO 000 270 29 89
999
VALVE , Replaced By: A0022601757
999
MAGNETTO 000 270 29 89
