Поз.
Артикул
Описание

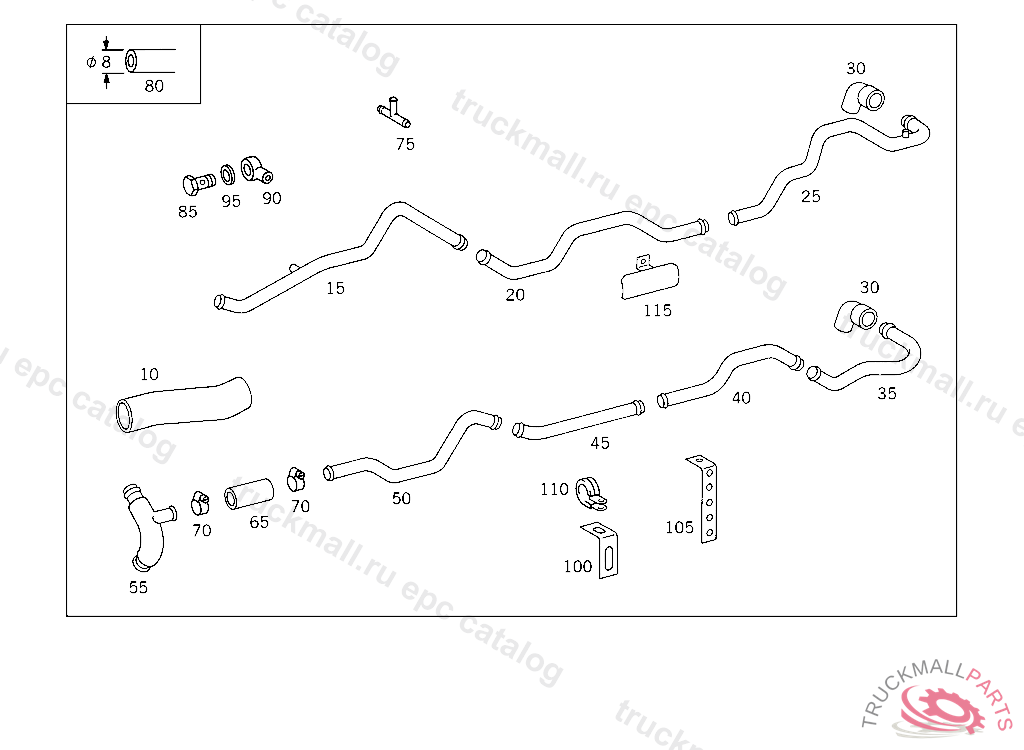

10
HOSE FEED AND RETURN LINE CONNECTION
15
LINE COOLING WATER FEED LINE
20
COOLING WATER LINE COOLING WATER FEED LINE
25
LINE COOLING WATER FEED LINE
30
HOSE FROM WATER PUMP TO EXPANSION TANK
30
HOSE , Replaced By: A6585010082
35
COOLING WATER LINE COOLING WATER RETURN LINE
40
COOLING WATER LINE COOLING WATER RETURN LINE
45
COOLING WATER LINE COOLING WATER RETURN LINE
50
COOLING WATER LINE COOLING WATER RETURN LINE
55
OUTLET COOLING WATER RETURN LINE
65
HOSE CONNECTING PIECE,AUXILIARY RADIATOR, ORDER BY THE METER
70
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
70
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
70
CLAMP25-40X13 MM
70
CLAMP
70
CLAMP , Replaced By: N000000000671
75
LINE DE-AERATION
80
HOSE , Replaced By: N900271008043
80
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
85
HOLLOW SCREW HEATING CONNECTION
90
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
95
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
100
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
100
BRACKET FUEL LINES TO TRANSMISSION
105
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
110
CLAMP POWER CYLINDER
110
CLAMP LINE MOUNTING
115
PROTECTIVE PLATE FUEL TANK
999
HOSE FEED AND RETURN LINES TO RADIATOR, GIVE LENGTH WHEN ORDERING ORDER BY THE METER
999
HOSE DE-AERATION LINE, ORDER BY THE METER, Replaced By: A9575011982
999
BRACKET LINE MOUNTING
999
BRACKET LINE MOUNTING, SIMPLE PART-PLEASE HAVE SHOP MADE
999
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6505013382
999
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6505013382
999
COOLING WATER LINE COOLING WATER FEED LINE
999
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR TO WATER PUMP
999
COVER THERMOSTAT HOUSING
999
OUTLET RETURN FLOW ON ADDITIONAL COOLER
999
LINE COOLING WATER FEED LINE
999
PIPE COOLING WATER RETURN LINE
999
PIPE COOLING WATER RETURN LINE
999
HOSE ADDITIONAL RADIATOR
999
HOSE DE-AERATION LINE, ORDER BY THE METER
