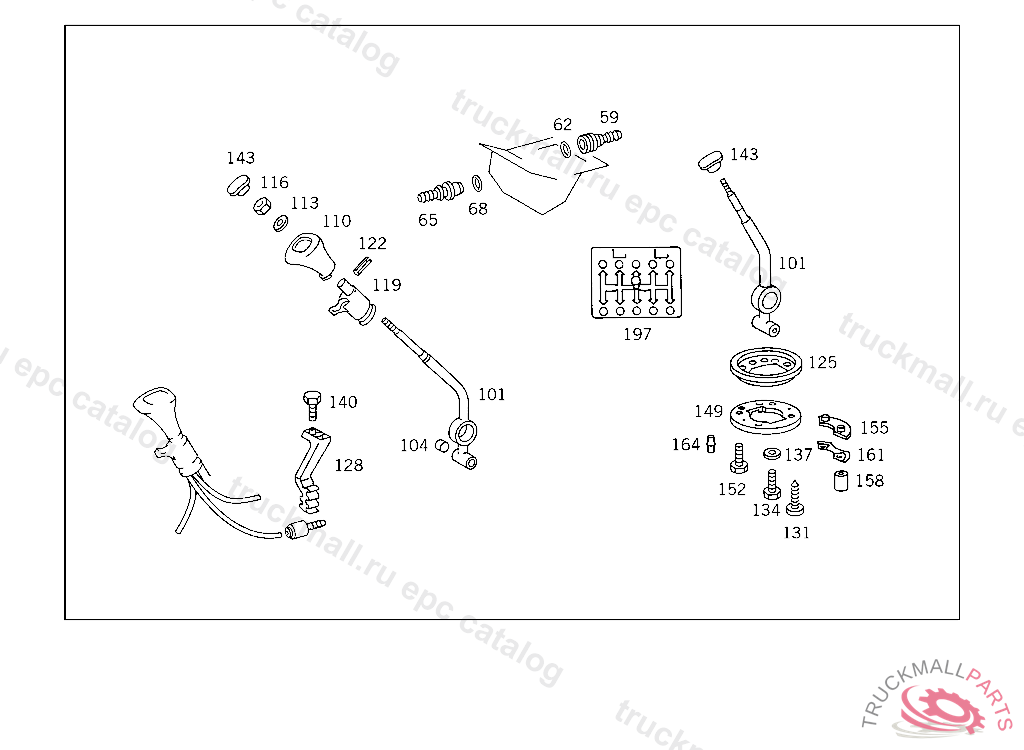

Поз.
Артикул
Описание
59
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
62
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
65
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
68
SEAL RING
101
SHIFT LEVER
101
SHIFT LEVER
104
BUSHING PAWL TO ROD END,5 443047
110
HANDLE (SHIFT LEVER HANDLE)
113
WASHER RADIATOR TO RUBBER MOUNTING
113
WASHER , Replaced By: N000125010532
116
NUT , Replaced By: N308673010000
116
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
119
VALVE SHIFT LEVER HERION
119
VALVE GEARSHIFT LEVER LOWER PART WABCO
122
CLAMPING SLEEVE (SHIFT LEVER VALVE)
125
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
128
BRACKET LINE MOUNTING
131
SHEET METAL SCREW BRACKET TO CAB
134
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
134
SCREW SUPPORT TO FENDER
134
SCREW , Replaced By: N304017008018
134
SCREW , Replaced By: N000933008337
134
SCREW , Replaced By: A0099900101
137
WASHER , Replaced By: N000125008443
137
WASHER EXHAUST MUFFLER TO STRAP
140
SCREW , Replaced By: N304017006018
140
SCREW COVER PLATE TO COVER PLATE M 6 X 12
143
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
143
COVER SHIFT LEVER HANDLE
143
COVER 6-SPEED,SHIFT LEVER KNOB
149
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
152
SCREW , Replaced By: N304017010047
152
SCREW CONNECTOR TO REAR SHIFTING ROD
155
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
158
TUBE. BUSHING CAB FLOOR COVERING
161
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
164
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
197
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
999
JOINT SHIFTING ROD TO TRANSMISSION
999
SHIFTING ROD
999
SHIFTING ROD , Replaced By: A3452607133
999
JOINT SHIFTING ROD TO TRANSMISSION
999
COVER PLATE AT TRANSMISSION
999
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
999
JOINT SHIFTING ROD TO TRANSMISSION
999
COVER
999
COVER FIVE-SPEED, SHIFT LEVER KNOB
999
BRACKET SHIFT LEVER BEARING TO CAB FLOOR,5 452694
999
BRACKET SHIFT LEVER BEARING TO CAB FLOOR,5 452694
999
SPACER TUBE SHIFT LEVER TO CAB FLOOR,K040603
999
SHIFT LEVER
999
BUSHING COMPRESSED AIR LINE THRU CAB FLOOR,K040603
