Поз.
Артикул
Описание
5

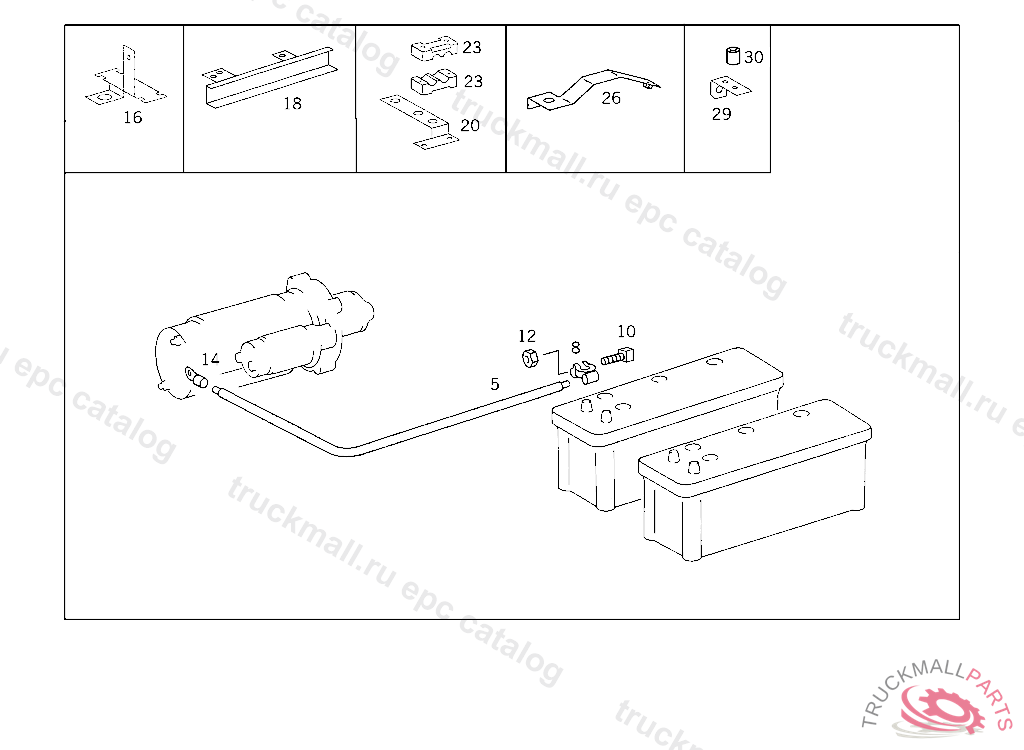

ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
5
ELECTRIC CABLE , Replaced By: A6735460013
8
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
10
SCREW POS. POLE
12
NUT POS. POLE
14
CABLE SHOE BATTERY CABLE 12-70 MM
16
BRACKET BATTERY CABLE TO TRANSMISSION
16
BRACKET , Replaced By: A6525460843
18
RAIL BATTERY CABLE TO ENGINE MOUNTING
20
BRACKET BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
23
CLAMPING PIECE BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
26
BRACKET CABLE HARNESS MOUNTING
29
BRACKET CABLE HARNESS MOUNTING
29
BRACKET CABLE HOLDER TO BRACKET
29
BRACKET , Replaced By: A0005465143
29
CLAMP , Replaced By: A0005465143
29
CLAMP , Replaced By: A0005465143
30
SPACER TUBE BREATHER LINE TO SIDE MEMBER
999
BRACKET AUTOMATIC CUT-OUT
999
PLATE RESISTOR
999
VALVE INFLATION PRESSURE CONTROL SYSTEM
999
BRACKET BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
CABLE HARNESS FRAME MOUNTED CABLE HARNESS
999
CABLE HARNESS FROM CHASSIS/CAB PLUG CONNECTION TO MODULE
999
ELECTRIC CABLE FROM CHASSIS/CAB PLUG-CONNECTION TO INSTRUMENT PANEL
999
ELECTRIC CABLE FROM CHASSIS/CAB PLUG-CONNECTION TO APPARATUS PLATE
999
SENDER UNIT. SWITCH,AUTOMATIC (STANDSTILL SWITCH): 3 KM/H
999
SWITCH P.T.O. TELL-TALE LAMP
