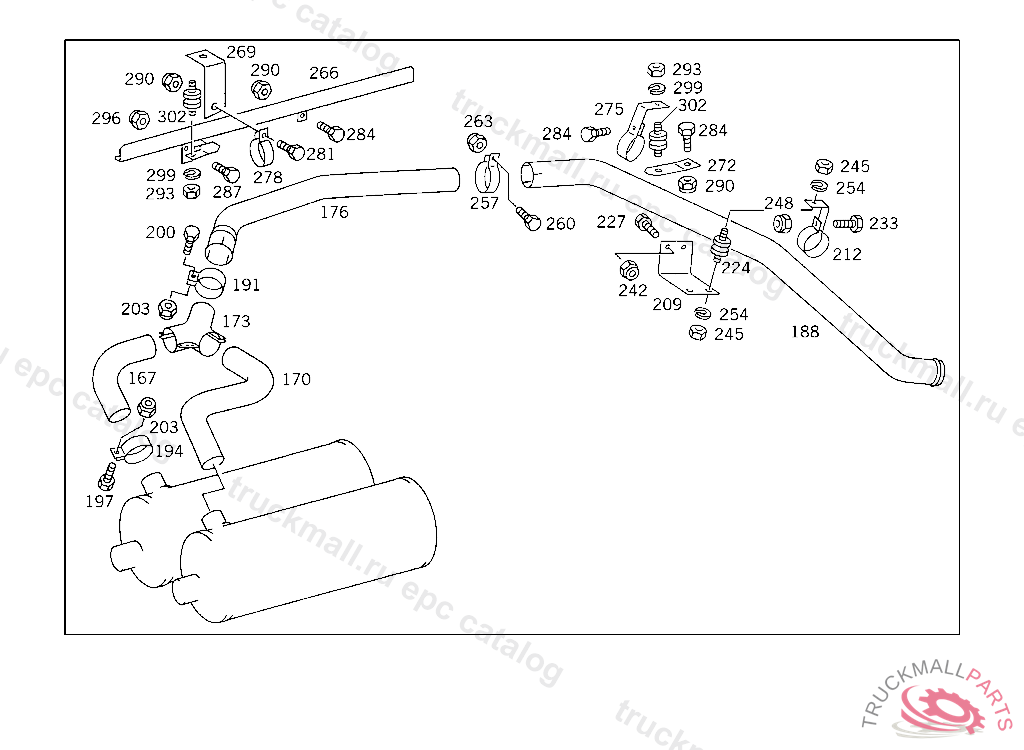

Поз.
Артикул
Описание
167
REAR EXHAUST PIPE LEFT
170
REAR EXHAUST PIPE RIGHT
173
FITTING CONNECTOR
176
REAR EXHAUST PIPE TAIL PIPE,FRONT
188
END PIECE , TO BE ADAPTED DURING ASSEMBLY
191
CLAMP , Replaced By: N071555100501
191
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
194
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
197
SCREW BRACKET TO SIDE MEMBER
197
SCREW , Replaced By: N304017010002
200
SCREW , Replaced By: N304017008027
200
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
200
SCREW END PIECE TO EXHAUST PIPE M 10X25
203
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
203
NUT STRAP TO BRACKET
203
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
203
NUT , Replaced By: N913004008001
203
NUT , Replaced By: N910113010000
209
BRACKET TAIL PIPE TO SIDE MEMBER
212
BRACKET TAIL PIPE TO BRACKET
224
RUBBER BUFFER BRACKET TO SUPPORT
227
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
227
SCREW , Replaced By: N308676012012
233
SCREW END PIECE TO EXHAUST PIPE M 10X25
242
NUT SUPPORT TO SIDE MEMBER
245
NUT BRACKET TO SUPPORT AND TO END PIECE
248
NUT STRAP TO BRACKET
248
NUT , Replaced By: N910113010000
254
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
257
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
257
CLAMP , Replaced By: N071555094502
260
SCREW , Replaced By: N304017010002
260
SCREW BRACKET TO SIDE MEMBER
263
NUT STRAP TO BRACKET
263
NUT , Replaced By: N910113010000
269
BRACKET , Replaced By: A6205240140
269
BRACKET COVERING
272
BRACKET TAIL PIPE TO CROSS MEMBER, SIMPLE PART-PLEASE HAVE SHOP MADE
275
BRACKET EXHAUST PIPE,5 298310
278
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
278
CLAMP , Replaced By: N071555090502
281
SCREW , Replaced By: N304017010002
281
SCREW BRACKET TO SIDE MEMBER
284
SCREW END PIECE TO EXHAUST PIPE M 10X25
287
SCREW BRACKET TO CROSS CONNECTION STRUT
287
SCREW , Replaced By: N304017008034
290
NUT , Replaced By: N910113010000
290
NUT STRAP TO BRACKET
293
NUT BRACKET TO SUPPORT AND TO END PIECE
296
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
296
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
296
NUT , Replaced By: N913004008001
299
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
302
RUBBER BUFFER BRACKET TO SUPPORT
