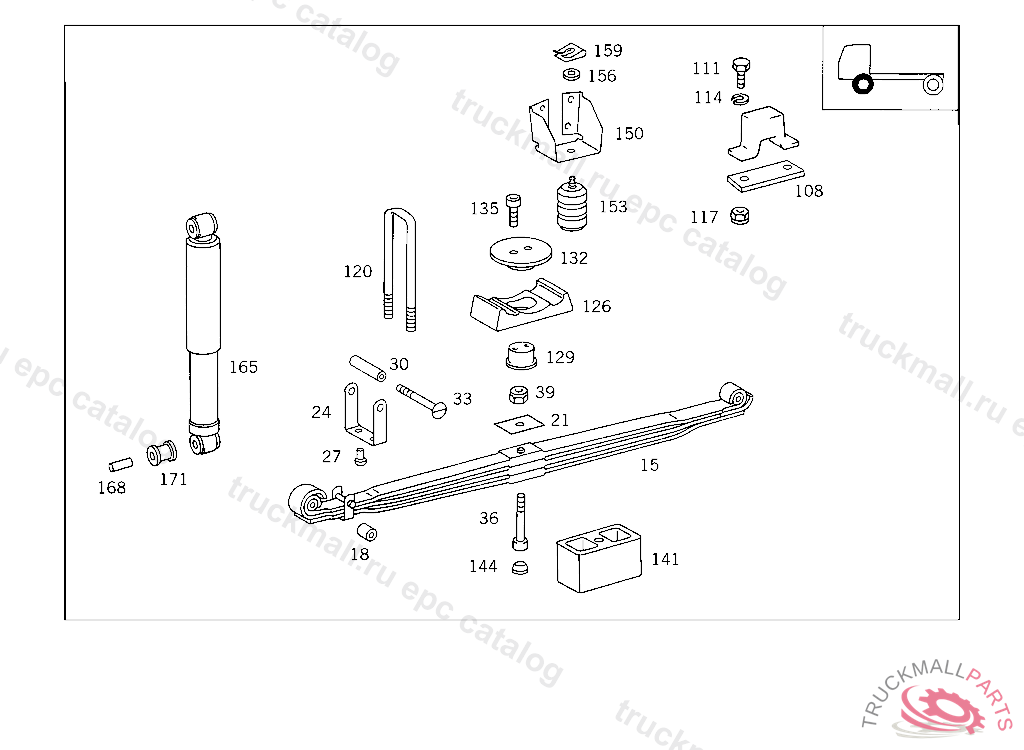

Поз.
Артикул
Описание
15
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
18
RUBBER MOUNTING
18
RUBBER MOUNTING
21
SHIM BETWEEN THE SPRING LEAVES
24
SPRING CLAMP
27
RIVET SPRING CLAMP TO SPRING LEAF
30
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
33
SCREW SPRING CLAMP
36
SPRING BOLT
39
HEXAGON NUT. NUT SPRING BOLT
39
NUT , Replaced By: N910113012005
108
RETAINER STOP BUFFER TO FRONT AXLE
111
SCREW BRACKET TO BELL HOUSING
111
SCREW END PIECE TO EXHAUST PIPE M 10X25
111
SCREW STRAP TO BRACKET
114
LOCK WASHER FITTING TO BRACKET
117
NUT STRAP TO BRACKET
117
NUT , Replaced By: N910113010000
120
U-BOLT FRONT SPRINGS TO FRONT AXLE 240 MM
120
U-BOLT FRONT SPRINGS TO FRONT AXLE 210 MM
120
U-BOLT FRONT SPRINGS TO FRONT AXLE 280 MM
126
PLATE FRONT SPRINGS TO FRONT AXLE
126
PLATE FRONT SPRINGS TO FRONT AXLE
126
PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3523220131
129
PIN SPRING STOP
132
PLATE SPRING STOP
132
PLATE FRONT SPRINGS TO FRONT AXLE
132
PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3523220131
135
SCREW , Replaced By: N000912008200
135
SCREW , Replaced By: N000912008219
135
SCREW SPRING STOP
135
SCREW SPRING STOP
141
SHIM BETWEEN SPRING AND FRONT AXLE
144
DOWEL PIN BETWEEN SPRING AND FRONT AXLE
150
BRACKET LEFT HELPER SPRING
150
BRACKET RIGHT HELPER SPRING
153
RUBBER SPRING SPRING STOP TO FRAME BOTTOM SIDE
156
WASHER
159
LOCK RUBBER SPRING TO BRACKET
165
SHOCK ABSORBER FRONT AXLE
165
SHOCK ABSORBER FRONT AXLE
168
SPACER RINGTO 002 323 86 00,003 323 03 00,
171
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
999
DOWEL PIN (CENTERING CONE)
999
SHIM BETWEEN SPRING AND FRONT AXLE
999
SPRING LEAFNO.9
999
SPRING LEAFNO.10
999
NUT STEERING SUPPORT TO FRAME
