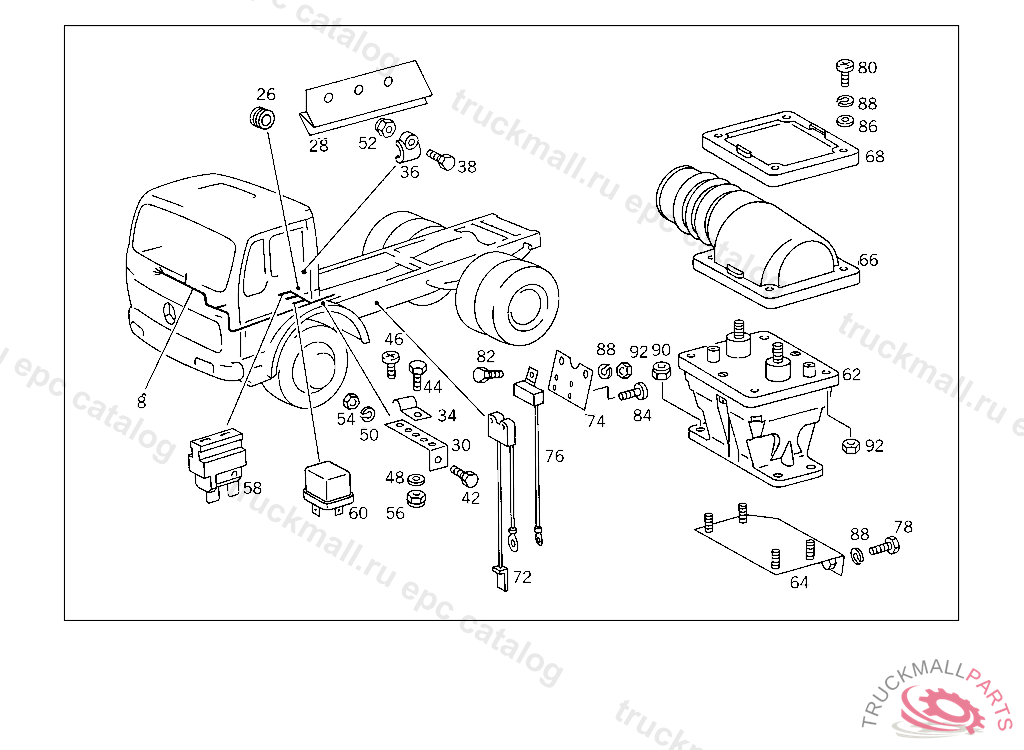

Поз.
Артикул
Описание
8
ELECTRIC CABLE FROM BATTERY CUT-OFF SWITCH TO CHASSIS/CAB PLUG CONNECTION,5 579769
8
ELECTRIC CABLE FROM BATTERY CUT-OFF SWITCH TO CHASSIS/CAB PLUG CONNECTION
8
ELECTRIC CABLE , Replaced By: A6565406237
26
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
28
BRACKET BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
30
BRACKET OIL LINE MOUNTING
30
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
34
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
36
CLAMP BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING,5 579088
36
CLAMP , Replaced By: A0005462675
38
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
42
SCREW DISTRIBUTOR TO CAB
42
SCREW PIPE CLAMP
42
SCREW EXHAUST PIPE TO BRACKET
42
SCREW , Replaced By: N304017008021
44
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X75
44
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X60
44
SCREW , Replaced By: N304017006026
44
SCREW BRACKET TO CROSS CONNECTION STRUT
44
SCREW , Replaced By: N304017008034
46
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
48
WASHER BRACKET TO LEFT SIDE MEMBER
48
WASHER RADIATOR TO RUBBER MOUNTING
48
WASHER COMPRESSED AIR LINE TO BRACKET
48
WASHER , Replaced By: N000125010532
48
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
LOCK WASHER FITTING TO BRACKET
50
LOCK WASHER BRACKET TO STEERING COLUMN END
50
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
50
LOCK WASHER T-FITTING TO BRACKET
52
NUT BRACKET TO SIDE MEMBER
52
NUT , Replaced By: N910113014001
54
NUT BRACKET TO SUPPORT AND TO END PIECE
54
NUT STRAP TO SUPPORT,5 149419
56
NUT STRAP TO BRACKET
56
NUT , Replaced By: N910113010000
56
NUT PUMP TO BRACKET
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT BRACKET TO BATTERY/APPARATUS SUPPORT,5 579088
56
NUT , Replaced By: N913004008001
56
NUT , Replaced By: N913004006001
58
DIODE ,K 182153
60
RELAYA33
60
RELAY , Replaced By: A0035459605
60
RELAYA33, Replaced By: A0009822123
60
RELAY , Replaced By: A0035459605
62
SWITCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 497289, Replaced By: A0005457708
62
SWITCH ,5 579769, Replaced By: A0005457808, +001A6524310840, +001A6515404608, +001A6565409536, +001A6555421440, +001A0035456305, +002A0015459634, +001A6555461543, +004A6555460072, +001A6555461383
62
SWITCH (BATTERY CUT-OFF RELAY),5 579770
64
BRACKET BATTERY CUT-OFF
64
BRACKET BATTERY CUT-OFF
66
CAP BATTERY CUT-OFF
68
BRACKET BATTERY CUT-OFF
72
CURRENT LIMITER ,5 5232385 579769
72
FUSE ,5 523237
74
BRACKET CURRENT LIMITER
76
ENTSTORKONDENSATOR BOSCH. CONDENSER BATTERY CUT-OFF,5 497289
78
SCREW BRACKET TO CROSS CONNECTION STRUT
78
SCREW COVER PLATE TO COVER PLATE M 6 X 10
78
SCREW CLAMP TO BRACKET AND TO PIPE
78
SCREW , Replaced By: N304017008034
78
SCREW , Replaced By: N304017006034
80
SCREW , Replaced By: N007985005532
80
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X35
82
SCREW CURRENT LIMITER M 4X45,5 579769
82
SCREW , Replaced By: N304017004008
84
SCREW CURRENT LIMITER
86
WASHER BOOT TO CAB FLOOR
86
WASHER , Replaced By: N000433005304
88
LOCK WASHER T-FITTING TO BRACKET
88
LOCK WASHER BRACKET TO STEERING COLUMN END
88
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
90
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
90
NUT PUMP TO BRACKET
90
NUT , Replaced By: N913004008001
90
NUT , Replaced By: N913004006001
92
NUT , Replaced By: N304032005005
92
NUT IN CASE OF SUBSEQUENT INSTALLATION
92
NUT IN CASE OF SUBSEQUENT INSTALLATION
92
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
BOOT EMERGENCY "OFF" SWITCH TO BATTERY SUPPORT,5 714574
999
NUT EMERGENCY "OFF" SWITCH ON CAB REAR PANEL
