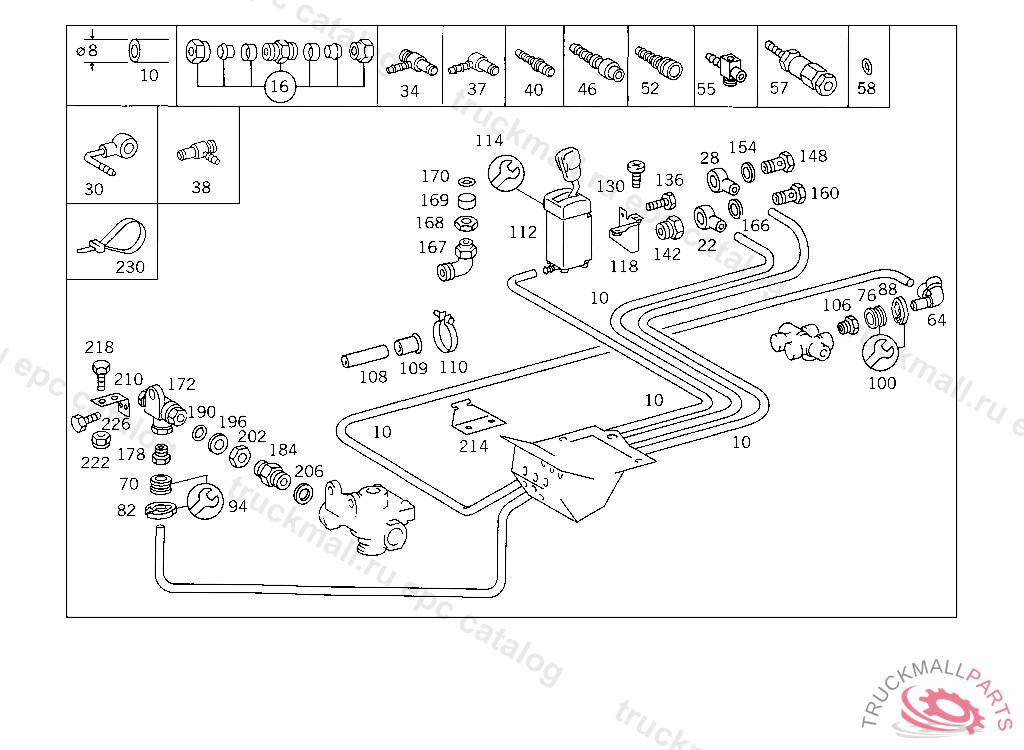

Поз.
Артикул
Описание
10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
16
FITTING (PARTS KIT),LINE RUPTURE
16
FITTING , Replaced By: A0029905971
22
BANJO UNION HEATING CONNECTION,K 169122
28
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
30
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
34
ELBOW FITTING HOSE WIDTH, 6 MM,TO M 22
34
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
37
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
37
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
37
ELBOW FITTING , Replaced By: A0049905371
38
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
40
CONNECTOR HOSE WIDTH, 6 MM, TO M22
46
CONNECTOR DISTRIBUTOR TO CAB
52
CONNECTOR HOSE WIDTH, / I.D., 6 MM
55
CONNECTOR HOSE WIDTH, 6 MM
55
CONNECTOR DISTRIBUTOR TO CAB
57
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
57
CONNECTOR , Replaced By: A6739900278
58
SEAL RING
58
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
64
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
70
LOCK RING LINE CONNECTION
70
SEAL RING , Replaced By: A0009940747
76
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
82
LOCK , Replaced By: A0009945448
82
LOCK LINE CONNECTION
88
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
94
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
94
REPAIR KIT , Replaced By: A0309971748
100
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
106
SCREW. UNION SCREW LINE CONNECTION
108
HOSE8X12 MM, ORDER BY THE METER
109
SLEEVE LINE CONNECTION
110
CLAMP LINE CONNECTION
112
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0034301881
112
VALVE (EXTENSIBLE BRAKE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
114
REPAIR KIT EXTENSIBLE BRAKE VALVE
114
REPAIR KIT , Replaced By: A0034305381
118
BRACKET EXTENSIBLE BRAKE VALVE
118
BRACKET EXTENSIBLE BRAKE VALVE
130
SCREW EXTENSIBLE BRAKE VALVE TO BRACKET
130
SCREW BRACKET TO COVERING
130
SCREW , Replaced By: N000000001145
136
SCREW , Replaced By: N304017006016
136
SCREW EXTENSIBLE BRAKE VALVE TO BRACKET
136
SCREW PUMP TO BRACKET
142
REDUCER EXTENSIBLE BRAKE VALVE,CONNECTION: "20"
148
HOLLOW SCREW LINE CONNECTION
154
SEAL RING LINE CONNECTION
160
HOLLOW SCREW FUEL LINE TO FEED PUMP
160
HOLLOW SCREW , Replaced By: N915036010108
166
SEAL RING FUEL LINE TO FEED PUMP
167
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
167
ELBOW FITTING , Replaced By: A0004294638
168
NUT CHECK VALVE TO AIR RESERVOIR
169
THRUST RING CHECK VALVE TO AIR RESERVOIR
169
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
170
O-RING CHECK VALVE TO AIR RESERVOIR
172
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
172
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
172
SHUTTLE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0044292444
172
VALVE , Replaced By: A0044291544
178
SCREW. UNION SCREW LINE CONNECTION
178
SCREW. UNION SCREW , Replaced By: A0009973734
184
FITTING RELAY VALVE,CONNECTION: "40"
190
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
196
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
202
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
206
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
210
BRACKET DISTRIBUTOR
214
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
218
SCREW PIPE CLAMP
218
SCREW , Replaced By: N304017008021
222
NUT , Replaced By: N913004008001
222
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
226
SCREW DISTRIBUTOR TO BRACKET
230
LOOM TIE LINE MOUNTING
230
LOOM TIE LINE MOUNTING 280 MM
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
GUIDE SIGN EXTENSIBLE BRAKE
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
