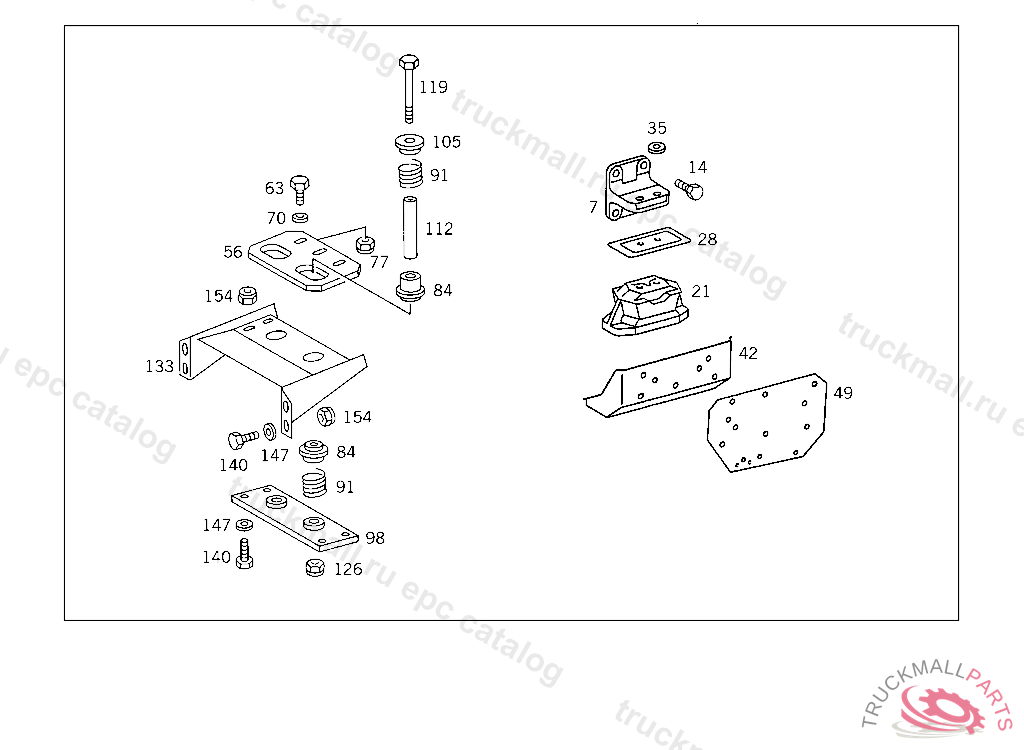

Поз.
Артикул
Описание
7
SUPPORTING ARM CLUTCH END
7
SUPPORTING ARM REAR
14
SCREW , Replaced By: N304017016004
14
SCREW SUPPORTING ARM TO HOUSING M 16X35
21
RUBBER MOUNTING REAR
21
RUBBER MOUNTING REAR
28
SCREENING PLATE REAR RUBBER MOUNTING
35
WASHER CROSS MEMBER TO SUPPORT
42
SUPPORT ENGINE MOUNTING,CLUTCH END,RIGHT
42
SUPPORT ENGINE MOUNTING,CLUTCH END,LEFT
42
SUPPORT ENGINE REAR SUSPENSION
42
CONSOLE ENGINE LEFT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
42
CONSOLE ENGINE RIGHT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
49
REINFORCEMENT CONSOLE TO SIDE MEMBER
56
PLATE FROM BRACKET AT ENGINE REAR MOUNTING TO BRACKET AT TRANSMISSION
63
SCREW , Replaced By: N308676016004
63
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
70
WASHER CONSOLE TO FRAME
77
NUT CONSOLE TO SUPPORT
77
NUT , Replaced By: N910113016001
84
GUIDE SLEEVE ENGINE MOUNTING TO TRANSMISSION
91
SPRING ENGINE MOUNTING TO TRANSMISSION
98
PLATE ENGINE MOUNTING TO CONSOLE
105
WASHER ENGINE MOUNTING TO CONSOLE
112
BUSHING ENGINE MOUNTING TO CONSOLE
119
SCREW ENGINE MOUNTING TO CONSOLE
126
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
126
NUT , Replaced By: N910113012003
133
CONSOLE ENGINE SUPPORT TO CROSS MEMBER
140
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
147
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
154
NUT , Replaced By: N910113012003
154
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
