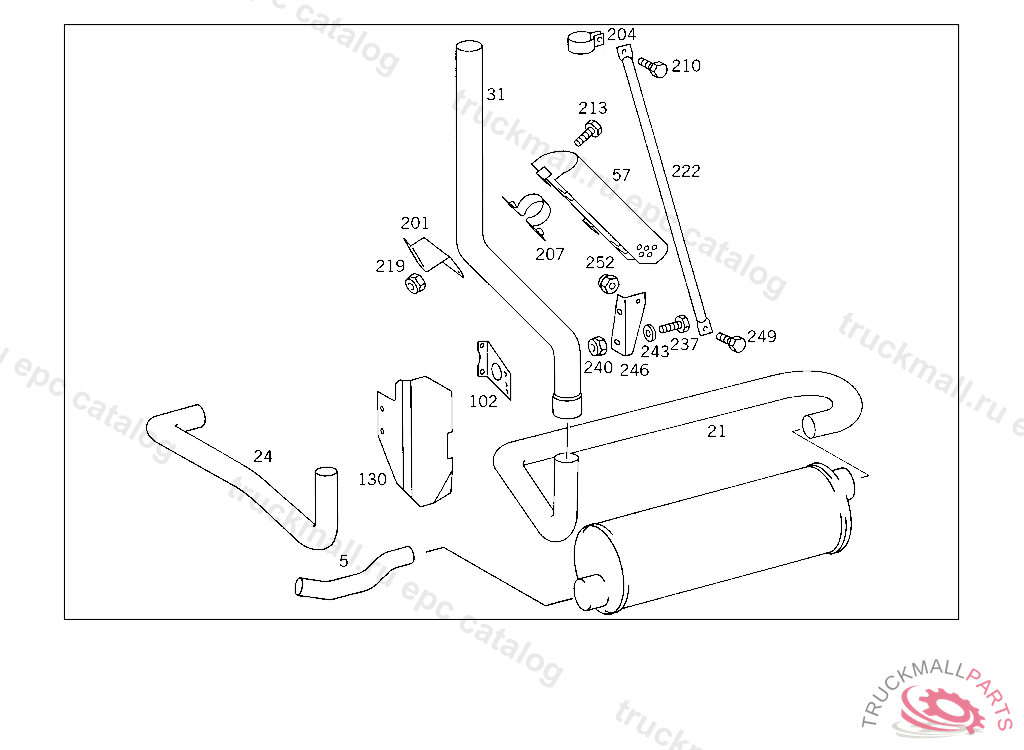

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT,REAR PART
21
CONNECTOR FROM EXHAUST MUFFLER TO CAB REAR PANEL
24
CONNECTOR BOTTOM CENTRAL
31
END PIECE BEHIND CAB,UPWARD
31
END PIECE BEHIND CAB,UPWARD
31
END PIECE
31
END PIECE BEHIND CAB,UPWARD
57
PROTECTIVE PLATE (HEAT SHIELD)
102
BRACKET TAIL PIPE
130
PROTECTIVE PLATE (HEAT SHIELD)
201
BRACKET EXHAUST PIPE TO FENDER
204
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
204
CLAMP EXHAUST PIPE TO BRACKET
204
CLAMP , Replaced By: N071555090502
207
CLAMP , Replaced By: N071555090502
207
CLAMP , Replaced By: N071555090501
210
SCREW , Replaced By: N304017010002
210
SCREW BRACKET TO SIDE MEMBER
213
SCREW EXHAUST PIPE TO BRACKET
219
NUT , Replaced By: N913004008001
219
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
222
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
222
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
237
SCREW , Replaced By: N304017010002
237
SCREW BRACKET TO SIDE MEMBER
240
NUT STRAP TO BRACKET
240
NUT , Replaced By: N910113010000
243
WASHER , Replaced By: N000125010532
243
WASHER RADIATOR TO RUBBER MOUNTING
246
BRACKET EXHAUST PIPE TO FENDER
249
SCREW END PIECE TO EXHAUST PIPE M 10X25
249
SCREW , Replaced By: N304017010002
249
SCREW BRACKET TO SIDE MEMBER
252
NUT STRAP TO BRACKET
252
NUT , Replaced By: N910113010000
999
NUT CHECK VALVE TO AIR RESERVOIR
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
END PIECE TAIL PIPE,FRONT,5 758826
999
END PIECE REAR EXHAUST PIPE,5 758826
999
REAR EXHAUST PIPE
999
END PIECE
999
END PIECE
999
EXHAUST PIPE FRONT EXHAUST PIPE
999
EXHAUST MUFFLER
999
PROTECTIVE PLATE (HEAT SHIELD) 1380 MM
999
CONNECTOR
999
EXHAUST PIPE FRONT
999
CLAMP , Replaced By: A3434920340
999
END PIECE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
999
EXHAUST PIPE FRONT,REAR PART,5 308040
999
EXHAUST PIPE FRONT,REAR PART
999
PROTECTIVE PLATE FUEL TANK
999
SUPPORT REAR EXHAUST PIPE
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
