Поз.
Артикул
Описание

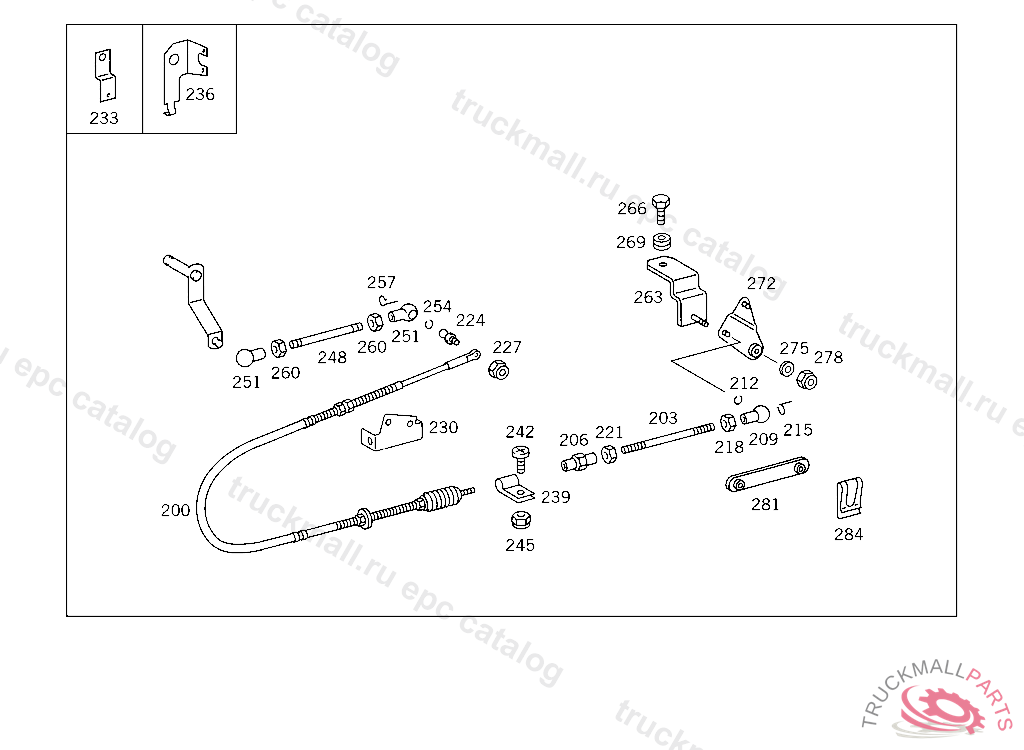

200
WIRE CABLE
203
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
206
TURNBUCKLE
209
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
212
SNAP RING SPRING-LOADED PUSH ROD
215
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
218
NUT SPRING-LOADED PUSH ROD
221
NUT L.H. THREAD
224
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
224
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
227
NUT BALL SOCKET TO ROD
230
BRACKET
233
BRACKET WIRE CABLE
236
BRACKET WIRE CABLE
239
CLAMP WIRE CABLE TO SIDE MEMBER AND TO TRANSMISSION
242
SCREW , Replaced By: N000000001146
242
SCREW CLAMP MOUNTING M 6X16
245
NUT AT FILTER BRACKET
248
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
251
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
254
SNAP RING SPRING-LOADED PUSH ROD
257
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
260
NUT BALL SOCKET TO ROD
263
BRACKET (REVERSING LEVER),5 538556
266
SCREW BEARING BRACKET TO SIDE MEMBER M 12X50
269
THREADED INSERT BRACKET TO TRANSMISSION
272
LEVER GEARSHIFT,TRANSMISSION
275
WASHER VIBRATION ABSORBER TO BRACKET
278
LOCK PLATE LEVER TO BRACKET
281
CONNECTOR FROM LEVER TO VALVE BODY ASSEMBLY
284
LOCK PLATE RELEASE LEVER TO SHAFT
