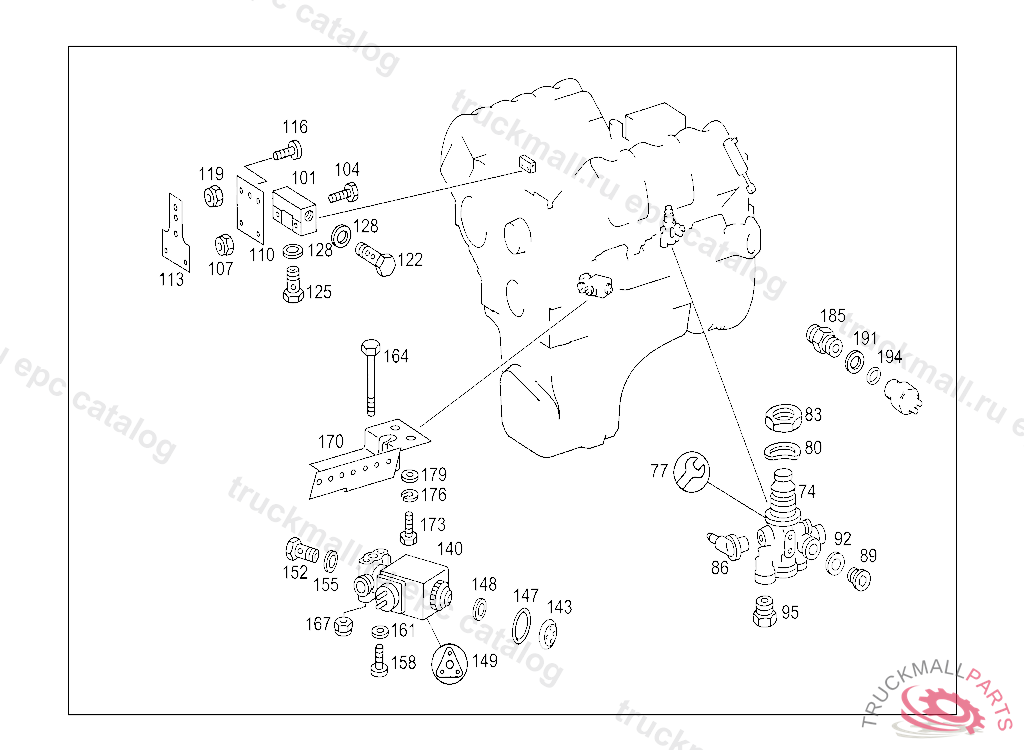

Поз.
Артикул
Описание
74
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
74
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
77
REPAIR KIT 3/2-WAY VALVE BOSCH
77
REPAIR KIT 3/2-WAY VALVE WABCO
80
SPRING WASHER AT CAB FLOOR
83
NUT SUCTION LINE TO OIL PUMP
86
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
86
BREATHER , Replaced By: A3933280065
89
SCREW PLUG , Replaced By: N000908012009
92
SEAL RING LINE CONNECTION
95
SCREW. UNION SCREW , Replaced By: A0009973734
95
SCREW. UNION SCREW LINE CONNECTION
101
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
104
SCREW TWO-WAY VALVE TO BRACKET
107
NUT TWO-WAY VALVE TO BRACKET
110
BRACKET 3/2-WAY SOLENOID VALVE
122
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
125
HOLLOW SCREW FUEL LINE TO FEED PUMP
125
HOLLOW SCREW , Replaced By: N915036010108
128
SEAL RING FUEL LINE TO FEED PUMP
140
VALVE , Replaced By: A0049975736
140
VALVE (3/2-WAY SOLENOID VALVE) EKS
143
PROTECTIVE CAPWABCO
147
SEAL RINGWABCO
147
SEAL RINGBOSCH
148
SEAL RINGBOSCH
149
GASKET KITKNORR
152
HOLLOW SCREW HEATING CONNECTION
155
SEAL RING LINE CONNECTION
158
SCREW TO PLUG THE FREE CONNECTIONS
161
SEAL RINGBOSCH
164
SCREW VALVE TO BRACKET, Replaced By: N304014008002
164
SCREW VALVE TO BRACKET
167
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
167
NUT , Replaced By: N913004008001
170
BRACKET 3/2-WAY SOLENOID VALVE
170
BRACKET 3/2-WAY SOLENOID VALVE
173
SCREW , Replaced By: N304017008016
173
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
176
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
179
WASHER , Replaced By: N000125008443
179
WASHER EXHAUST MUFFLER TO STRAP
185
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
185
FITTING CONNECTION TO STOP LIGHT SWITCH
191
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
191
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
194
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
