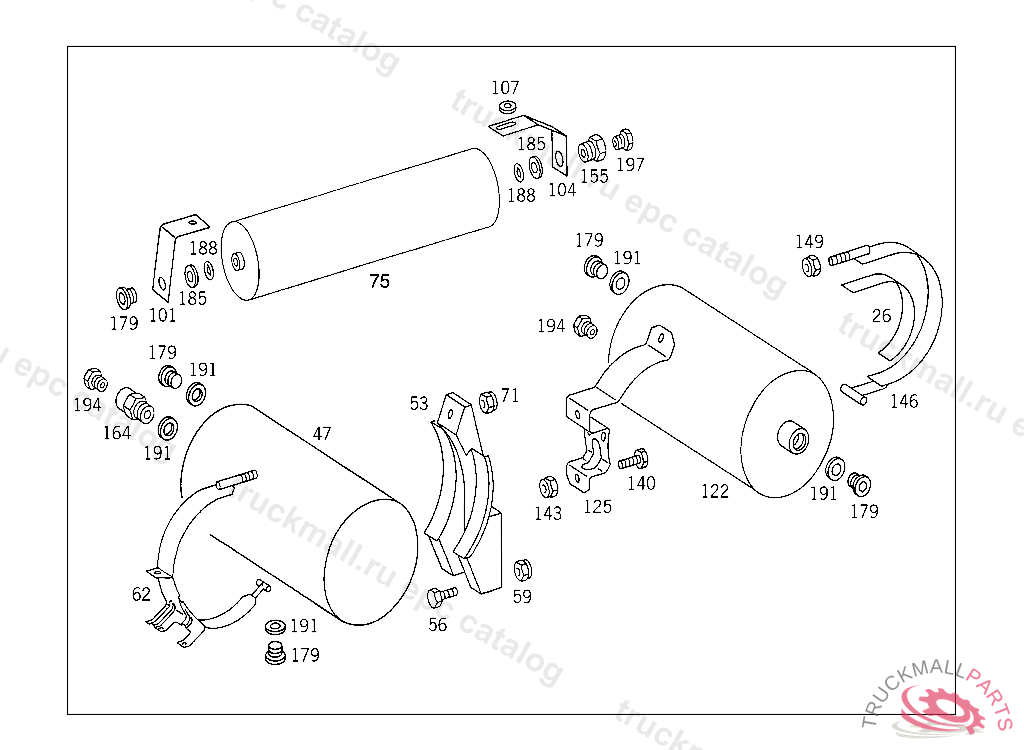

Поз.
Артикул
Описание
26
ADHESIVE TAPE60 MM, ORDER BY THE METER
47
RESERVOIR20L,276 MM,8.5 BAR
53
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
56
SCREW , Replaced By: A0089907401
56
SCREW BRACKET TO SIDE MEMBER,K 168169
59
NUT , Replaced By: N913004008001
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
71
NUT , Replaced By: N910113010000
71
NUT STRAP TO BRACKET
75
RESERVOIR5.6L,114,3 MM,10 BAR
101
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
104
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
107
WASHER , Replaced By: N000125010532
107
WASHER RADIATOR TO RUBBER MOUNTING
122
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
122
RESERVOIR10L,206 MM,8.5 BAR
125
BRACKET AIR RESERVOIR TO CROSS MEMBER
140
SCREW , Replaced By: N304017008021
140
SCREW PIPE CLAMP
143
NUT , Replaced By: N913004008001
143
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
143
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
146
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
146
STRAP AIR RESERVOIR TO BRACKET
149
NUT , Replaced By: N910113010000
149
NUT STRAP TO BRACKET
155
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
164
FITTING LINE CONNECTION
179
SCREW PLUG , Replaced By: N000908022011
179
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
179
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
185
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
185
THRUST RING CHECK VALVE TO AIR RESERVOIR
188
O-RING CHECK VALVE TO AIR RESERVOIR
191
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
194
SCREW. UNION SCREW LINE CONNECTION
197
SCREW. UNION SCREW , Replaced By: A0009973734
197
SCREW. UNION SCREW LINE CONNECTION
