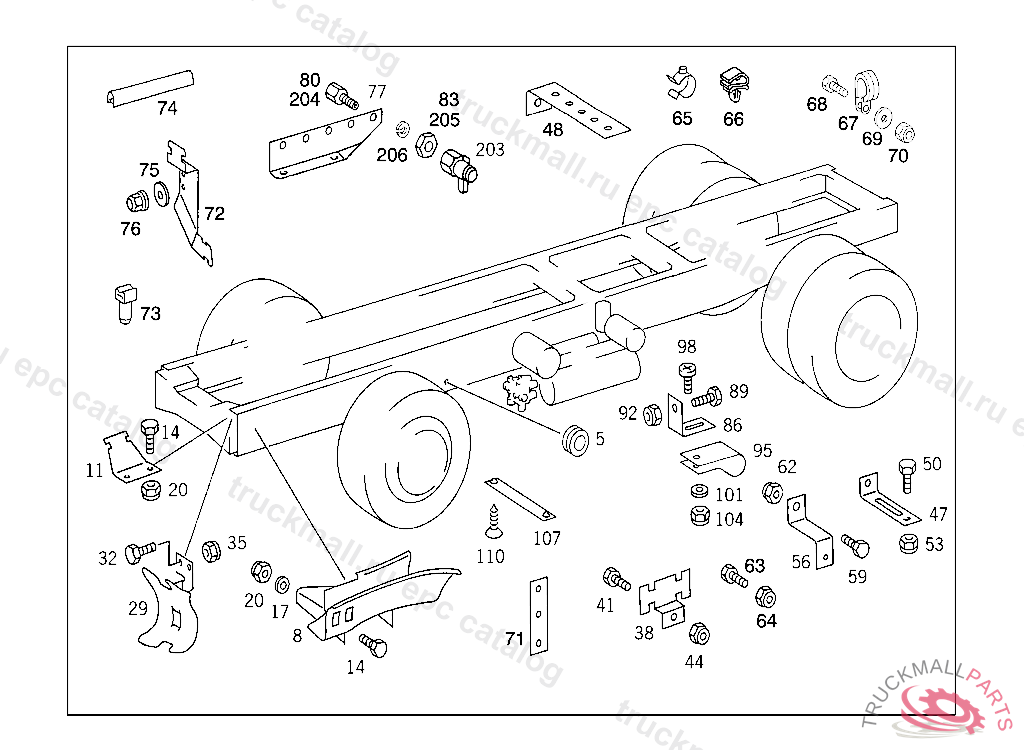

Поз.
Артикул
Описание
5
GROMMET LINE THRU FRAME
8
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554303310
8
BRACKET RIGHT COMPRESSED AIR LINES
8
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554200786
8
BRACKET RIGHT COMPRESSED AIR LINES, Replaced By: A6554303410
8
BRACKET LEFT COMPRESSED AIR LINES
11
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
14
SCREW , Replaced By: N304017008021
14
SCREW PIPE CLAMP
17
WASHER , Replaced By: N000125008443
17
WASHER EXHAUST MUFFLER TO STRAP
20
NUT , Replaced By: N913004008001
20
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
29
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
29
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
29
BRACKET , Replaced By: A6154200086
32
SCREW BRACKET TO CROSS CONNECTION STRUT
32
SCREW , Replaced By: N304017008034
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
NUT , Replaced By: N913004008001
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
BRACKET BREATHER LINE TO SIDE MEMBER
41
SCREW , Replaced By: N304017008027
41
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
48
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
50
SCREW , Replaced By: N304017008034
50
SCREW BRACKET TO CROSS CONNECTION STRUT
53
NUT , Replaced By: N913004008001
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
72
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
72
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
73
BRACKET LINE TO FRONT PANEL
74
EDGE GUARD SECTION , Replaced By: A0019872272
74
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
75
WASHER , Replaced By: N009021005205
75
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
76
NUT BRACKET TO PIN
86
BRACKET FUEL LINE TO BELL HOUSING
89
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
92
NUT STRAP TO BRACKET
92
NUT , Replaced By: N910113010000
95
CLAMP , Replaced By: A6739950001
95
CLAMP DELIVERY AND SUCTION LINES TO STEERING
98
SCREW CLAMP TO BRACKET M 6X14
101
WASHER COMPRESSED AIR LINE TO BRACKET
101
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
104
NUT PUMP TO BRACKET
104
NUT , Replaced By: N913004006001
107
BRACKET , NOT USED, Replaced By: A6554314640
107
BRACKET BRACKET TO CONTROL ARM
107
BRACKET , Replaced By: A6554314640
110
SHEET METAL SCREW CABLE MOUNTING IN CABLE DUCT, NOT USED
203
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
203
TEST CONNECTION
203
TEST CONNECTION BULKHEAD FITTING
