Поз.
Артикул
Описание

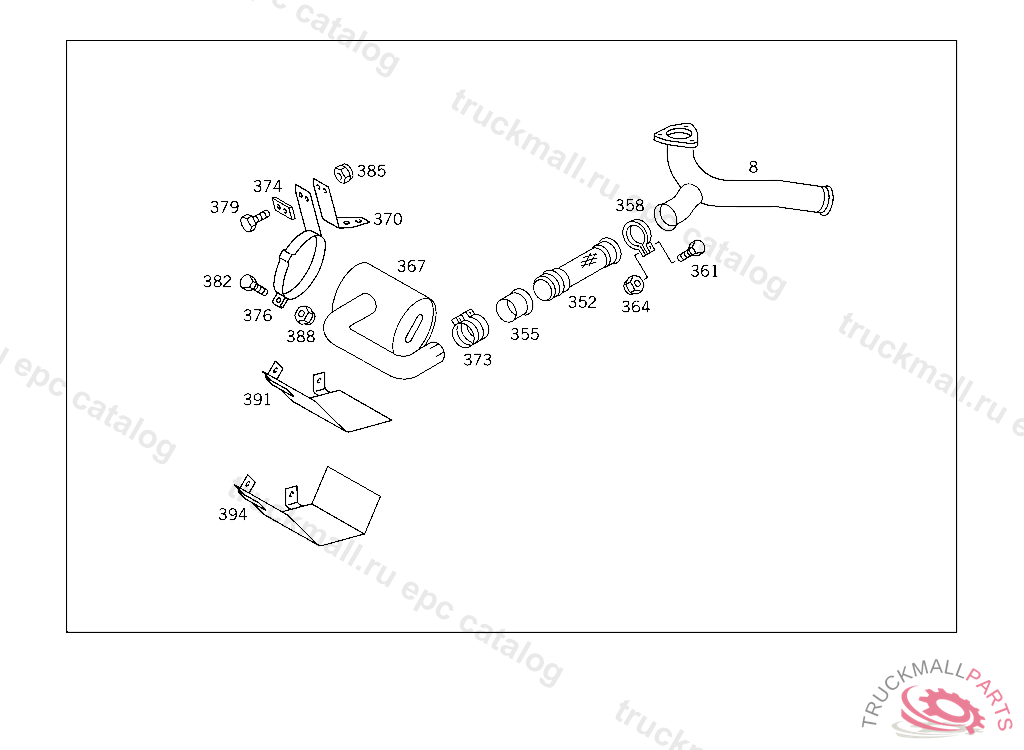

8
CONNECTOR FRONT EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
8
CONNECTOR BETWEEN EXHAUST MANIFOLD AND FLEXIBLE METAL TUBE,K 118397
352
FLEXIBLE METAL TUBE CONNECTOR
355
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
358
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
361
SCREW , Replaced By: N304017008027
361
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
364
NUT , Replaced By: N913004008001
364
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
364
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
367
RESONATOR , NOT USED
370
BRACKET RESONATOR, NOT USED
373
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
374
BASE PLATE BRACKET TO RESONATOR & FLEXIBLE METAL TUBE,5 909443
376
BRACKET RESONATOR, NOT USED
379
SCREW , Replaced By: N304017010002
379
SCREW BRACKET TO SIDE MEMBER
382
SCREW CONSOLE TO SIDE MEMBER
385
NUT , Replaced By: N910113010000
385
NUT STRAP TO BRACKET
388
NUT SUPPORT TO SIDE MEMBER
391
PROTECTIVE PLATE ,5 909443K 118397
394
PROTECTIVE PLATE ,K 118398
