Mercedes A4069910022 - ЦАПФА СФЕРИЧЕСКАЯ

1417 AK,1420 AK,1424 AK 651.315

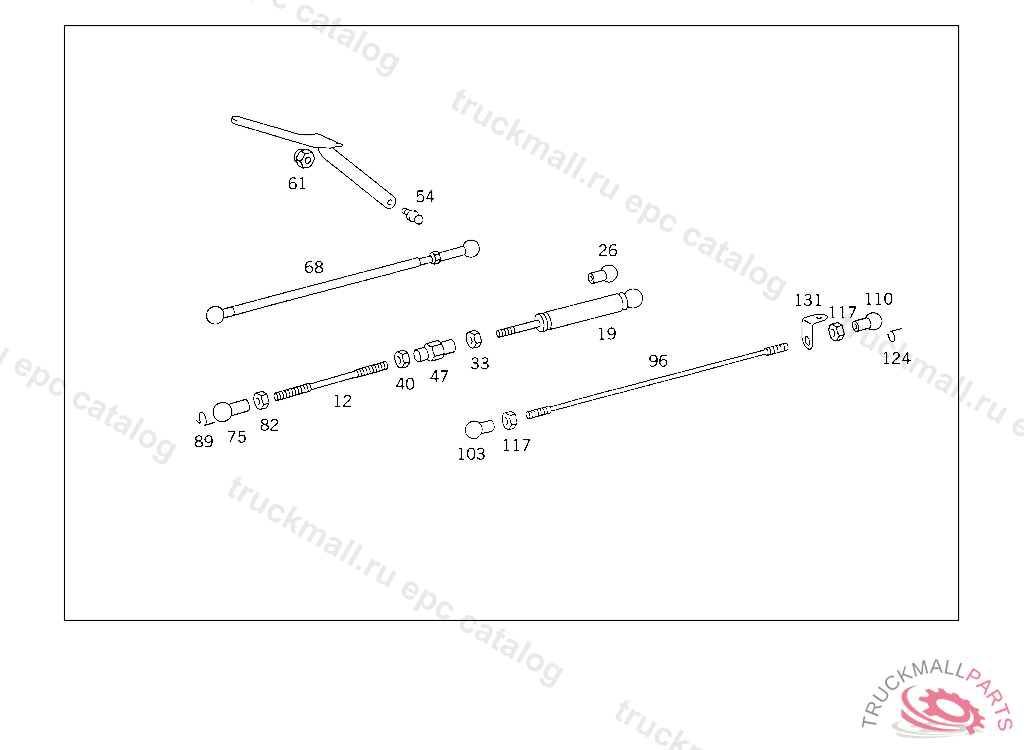

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 1

Поз.
Артикул
Описание
12
N900331006629
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
19
A6583001715
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
19
A3550700475
ROD , Replaced By: A6583001715
26
N071805010204
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
33
N000934006007
NUT BALL PIVOT TO LEVER
40
N000934006012
NUT L.H. THREAD
47
N001479006001
TURNBUCKLE TURNBUCKLE
54
A0009911015
BALL PIVOT LOAD SENSOR
61
N913004006002
NUT , Replaced By: N913004006001
61
N913004006001
NUT PUMP TO BRACKET
68
A6203000615
ROD LOAD SENSOR CONTROL
75
A0009912422
BALL SOCKET PULL ROD TO LEVER
82
N000934006007
NUT BALL PIVOT TO LEVER
89
N071805010403
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
96
N900331008423
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
96
N900331008421
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
103
N071805013203
BALL SOCKET ROD TO BALL PIVOT
110
A4069910022
BALL SOCKET ROD TO BALL PIVOT
117
N304032008006
NUT
117
N000934008010
NUT , Replaced By: N304032008006
124
N071805013402
SECURING CLIP. CIRCLIP
131
A3853010040
BRACKET FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
A3649910222
BALL SOCKET
