Поз.
Артикул
Описание

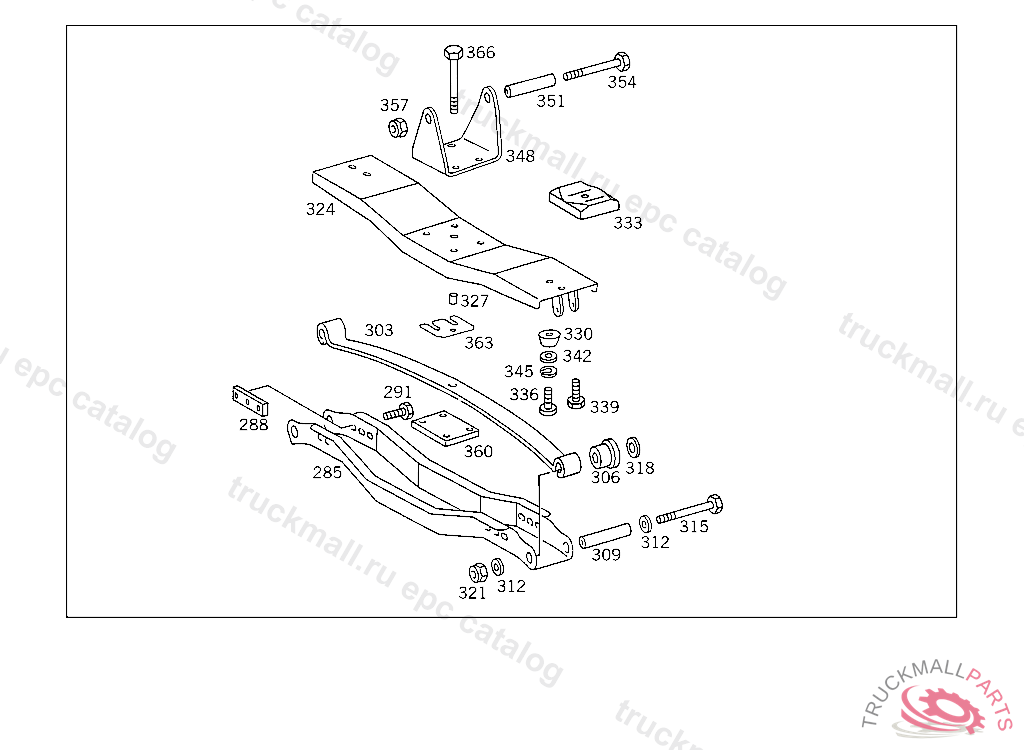

285
STRUT CAB MOUNTING,REAR (LEAF SPRING SUSPENSION)
285
STRUT , Replaced By: A6558910224, +002A6558910118
288
SHIM STRUT TO CONSOLE
291
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
291
SCREW STRUT TO CONSOLE
291
SCREW , Replaced By: N308676012012
303
SPRING (LEAF SPRING),CAB SUSPENSION
303
SPRING (LEAF SPRING),CAB SUSPENSION
306
BUSHING LEAF SPRING
309
TUBE LEAF SPRING, TO BE ADAPTED DURING ASSEMBLY
309
TUBE , Replaced By: A3638910218
312
WASHER LEAF SPRING TO STRUT, DISCONTINUED,PART IS NO LONGER REQUIRED
315
SCREW LEAF SPRING TO STRUT
318
WASHER LEAF SPRING TO STRUT
321
NUT SUPPORT TO SIDE MEMBER
324
RAIL CAB SUSPENSION,REAR
324
RAIL CAB SUSPENSION,REAR
324
RAIL CAB SUSPENSION,REAR
324
RAIL CAB SUSPENSION,REAR
324
RAIL CAB SUSPENSION,REAR
324
RAIL CAB SUSPENSION,REAR
324
RAIL CAB SUSPENSION,REAR
324
RAIL , Replaced By: A3878901222
324
RAIL , Replaced By: A6558900122
324
RAIL , Replaced By: A6558900322
324
RAIL , Replaced By: A6558900422
324
RAIL , Replaced By: A3978900122
324
RAIL , Replaced By: A6558900622
324
RAIL , Replaced By: A6558900822
327
CYLINDRICAL PIN
330
BUFFER RAIL STOP
333
MOUNTING CAB SUSPENSION,REAR
333
MOUNTING CAB SUSPENSION,REAR
333
MOUNTING , Replaced By: A3878910072
336
SCREW , Replaced By: N304017008021
336
SCREW PIPE CLAMP
336
SCREW BUFFER AND MOUNTING TO RAIL M 8X20
336
SCREW BUFFER AND MOUNTING TO RAIL M 8X18
339
SCREW PIPE CLAMP
339
SCREW , Replaced By: N304017008021
342
WASHER , Replaced By: N000125008443
342
WASHER EXHAUST MUFFLER TO STRAP
345
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
348
MOUNTING CAB LOCKING MECHANISM
348
MOUNTING CAB LOCKING MECHANISM
351
SPACER TUBE BEARING BRACKET
351
SPACER TUBE BEARING BRACKET
354
SCREW SPACER TUBE TO MOUNTING
354
SCREW SPACER TUBE TO MOUNTING
354
SCREW , Replaced By: N000960016251
357
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
357
NUT COMBINATION CYLINDER TO BEARING BRACKET
360
PLATE MOUNTING AND RAIL TO LEAF SPRING
363
BASE MOUNTING AND RAIL TO LEAF SPRING
366
SCREW STRAP TO BRACKET
366
SCREW MOUNTING AND RAIL TO LEAF SPRING
