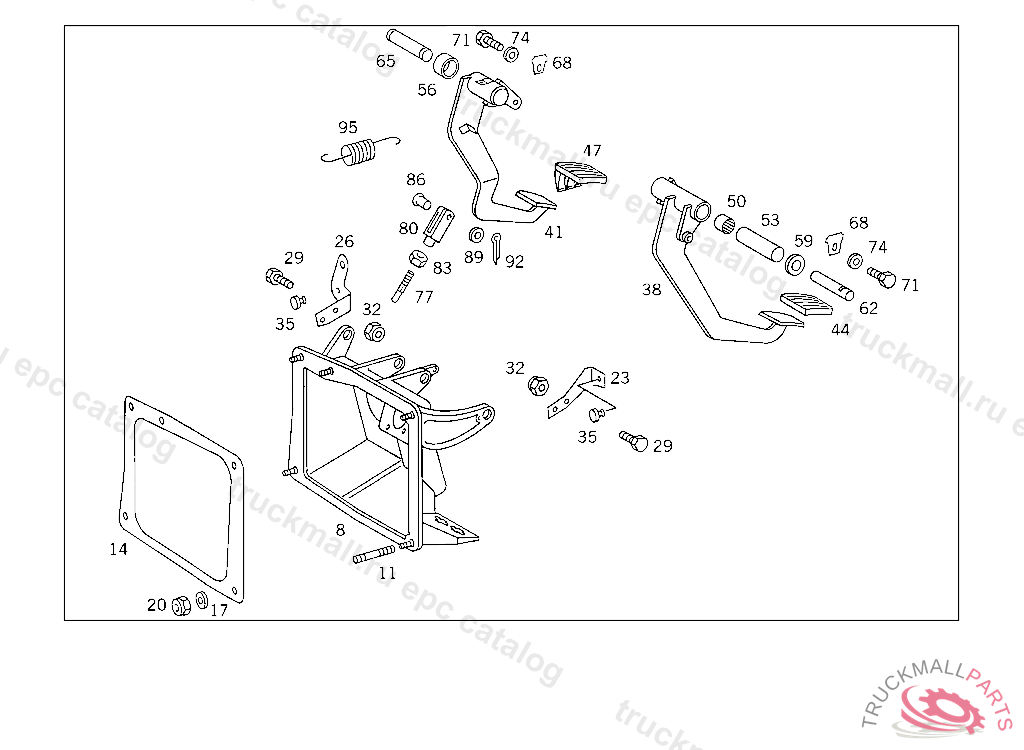

Поз.
Артикул
Описание
8
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL
11
STUD
14
GASKET BEARING BRACKET TO FIRE WALL
17
WASHER EXHAUST MUFFLER TO STRAP
17
WASHER , Replaced By: N000125008443
20
NUT , Replaced By: N913004008001
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
23
BRACKET CLUTCH PEDAL,5 957976
26
STOP BRAKE PEDAL
29
SCREW COVER PLATE TO BRACKET
32
NUT , Replaced By: N913004006001
32
NUT PUMP TO BRACKET
35
STOP CLUTCH PEDAL AND BRAKE PEDAL
38
PEDAL CLUTCH
41
PEDAL BRAKE
44
PAD CLUTCH PEDAL
47
PAD BRAKE PEDAL
50
NEEDLE BEARING CLUTCH PEDAL
50
NEEDLE BEARING CLUTCH PEDAL
53
SPACER TUBE CLUTCH PEDAL
56
BUSHING BRAKE PEDAL
56
BUSHING , Replaced By: A1242920050
59
WASHER CLUTCH PEDAL TO BEARING BRACKET
62
PIN CLUTCH PEDAL TO BEARING BRACKET
65
PIN BRAKE PEDAL TO BEARING BRACKET
68
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
71
SCREW , Replaced By: N304017006016
71
SCREW PUMP TO BRACKET
74
WASHER COMPRESSED AIR LINE TO BRACKET
74
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
77
ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6732920032, +001N071752008003
77
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
80
YOKE OPERATING ROD,K 202311
83
NUT , Replaced By: N304035008001
83
NUT
86
PIN ROD TO BRAKE PEDAL
89
WASHER BRACKET TO CROSS MEMBER
92
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
92
COTTER PIN LEVER TO ROD
95
SPRING CLUTCH-PEDAL/BRAKE-PEDAL RESET
999
SWITCH STOP LIGHT
999
SWITCH CLUTCH ACTUATION
999
SWITCH STOP LIGHT EMR
999
PAD , Replaced By: N040621014200
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
