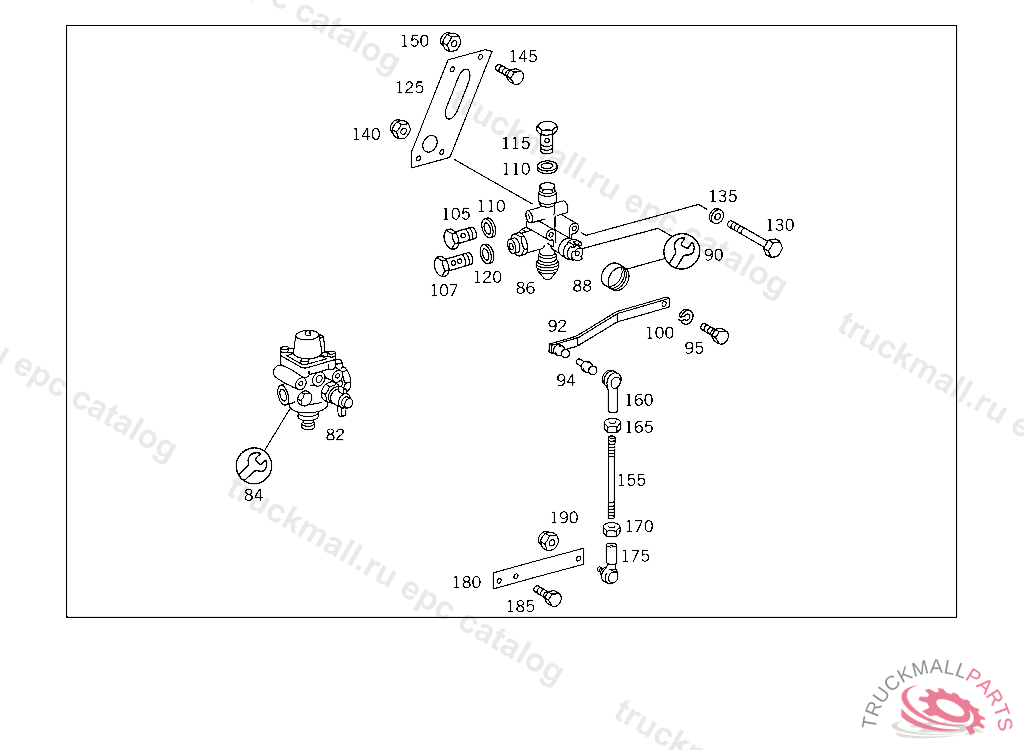

Поз.
Артикул
Описание
82
PRESSURE REGULATOR"WABCO"
82
PRESSURE REGULATOR"BOSCH", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
82
PRESSURE REGULATOR"KNORR"
84
REPAIR KIT PRESSURE REGULATOR BOSCH,241
84
REPAIR KIT PRESSURE REGULATOR WABCO
84
REPAIR KIT PRESSURE REGULATOR "KNORR"
86
VALVE
86
VALVE SELF-LEVELLING DEVICE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
88
BOOT
90
REPAIR KIT AIR SPRING VALVE
92
LEVER AIR SPRING VALVE
92
LEVER AIR SPRING VALVE
94
BALL PIVOT BOTTOM B13X5 MM
95
SCREW , Replaced By: N304017008016
95
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
100
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
105
HOLLOW SCREW HEATING CONNECTION
107
HOLLOW SCREW LINE CONNECTION
110
SEAL RING LINE CONNECTION
115
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
120
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
125
BRACKET AIR SPRING VALVE
125
BRACKET PULL ROD TO SUPPORT
130
SCREW REAR AXLE REGULATING SOLENOID VALVE
135
WASHER 3/2-WAY VALVE TO BRACKET
140
NUT , Replaced By: N913004008001
140
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
145
SCREW END PIECE TO EXHAUST PIPE M 10X25
150
NUT , Replaced By: N910113010000
150
NUT STRAP TO BRACKET
155
PULL ROD PNEUMATIC SUSPENSION CONTROL
160
YOKE BOTTOM
165
NUT , Replaced By: N304035008002
165
NUT L.H. THREAD
170
NUT , Replaced By: N304035008001
170
NUT
175
YOKE TOP
180
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
180
CYLINDER PULL ROD TO SUPPORT
180
BRACKET , Replaced By: A6523280540
180
BRACKET PULL ROD TO AXLE
185
SCREW , Replaced By: N304017008039
185
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
190
NUT , Replaced By: N913004008001
190
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
FITTING LINE CONNECTION TO FIRE WALL,5 726664
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
999
NUT , Replaced By: N913023010002
999
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
999
NUT BALL SOCKET TO ROD
999
NUT
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
999
SCREW PIPE CLAMP
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW PLUGROCKINGER,TYP 59 U150
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008053
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
STRAP AIR RESERVOIR TO BRACKET
999
GROMMET HIGH PRESSURE HOSE THRU FRAME
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
BRACKET QUICK-RELEASE VALVE
999
BRACKET COMPRESSED AIR LINE MOUNTING, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET TRAVEL SENSOR TO FRAME SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET , Replaced By: A3464310240
999
BRACKET , Replaced By: A3464310240
999
ROD , Replaced By: A6533200589
999
ROD , Replaced By: A6533200389
999
ROD , Replaced By: A6533201089
999
ROD ,K 166016, Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
999
ROD , Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
999
ROD , Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
999
BRACKET AIR RESERVOIR
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
999
WASHER , Replaced By: A3609902340
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
BRACKET , Replaced By: A3604293140
999
GROMMET AT SIDE MEMBER,5 314333
999
ELBOW FITTING. T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 12 MM, VOSS 230
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
999
VALVE ,5 760167, Replaced By: A0025400897
999
VALVE (PRESSURE LIMIT VALVE)
999
T-FITTING HOSE WIDTH, 6 MM
999
FITTING PRESSURE REGULATOR,CONNECTION: "40"
999
SCREW , Replaced By: N304017006018
999
VALVE , Replaced By: A0025400197
999
VALVE CONTROL VALVE GRAU
999
RESERVOIR , Replaced By: A0034321201
999
PROTECTIVE CAPWABCO
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
MAGNET
999
MAGNET ,5 760168K 154651
999
AIR CLEANER
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM / 6 MM, VOSS 230
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
BALL JOINT TRAVEL SENSOR
