Поз.
Артикул
Описание

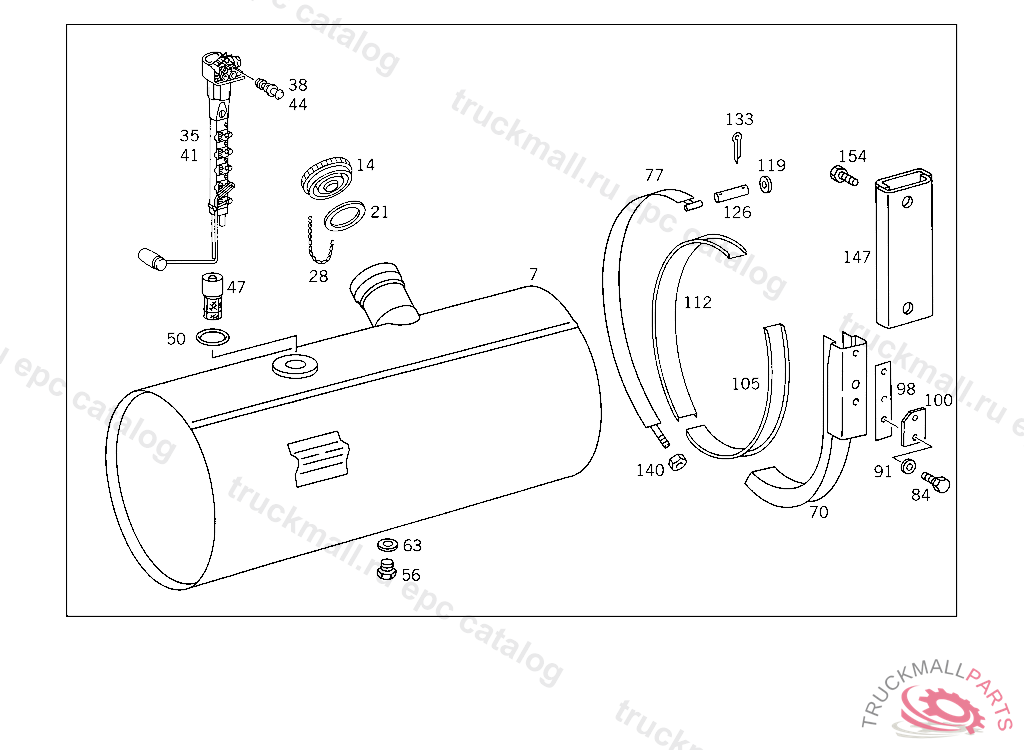

7
FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
7
FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
14
FILLER CAP
21
SEAL RING
28
CHAIN FILLER CAP
35
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426317, +001A0005409917
35
SENDER UNIT FUEL GAUGE,K 169123
38
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
41
SENDER UNIT FUEL GAUGE, NOT USED
44
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
47
FUEL STRAINER FUEL TANK,K 169122
47
FUEL STRAINER FUEL TANK,K 169123
50
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
56
SCREW PLUG , Replaced By: N007604014110
56
SCREW PLUG FUEL TANK
56
SCREW PLUG FUEL TANK
63
SEAL RING , Replaced By: N007603014402
63
SEALING RING. SEAL RING FUEL TANK
63
SEAL RING FUEL LINE TO FEED PUMP
63
SEAL RING FUEL TANK
70
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 931459, Replaced By: A6524701542
70
SUPPORT FUEL TANK
70
SUPPORT , ONLY REPLACEABLE BY PAIRS, Replaced By: A6524701542
70
SUPPORT FUEL TANK
70
SUPPORT FUEL TANK
77
STRAP FUEL TANK
84
SCREW SUPPORT TO SIDE MEMBER M14X40
84
SCREW , Replaced By: N308676014020
84
SCREW BRACKET TO CAB CONSOLE,K 035197
84
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
91
WASHER BRACKET TO SIDE MEMBER,5 703114
98
SHIM SUPPORT TO SIDE MEMBER
98
SHIM SUPPORT TO SIDE MEMBER
98
SHIM SUPPORT TO SIDE MEMBER
100
BASE SUPPORT TO SIDE MEMBER
100
SHIM , Replaced By: A3614750019
105
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
112
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
112
PAD , Replaced By: A3634750220
119
WASHER
126
PIN STRAP TO SUPPORT
133
COTTER PIN STRAP TO SUPPORT
140
NUT STRAP TO SUPPORT
140
NUT STRAP TO SUPPORT
147
INTERMEDIATE PIECE SPARE WHEEL CARRIER CONSOLE TO FRAME
154
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
154
SCREW , Replaced By: N308676014020
154
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
BRACKET HIGH PRESSURE HOSE
999
BRACKET HAND PUMP
999
SCREW , Replaced By: N304017008018
999
SCREW SUPPORT TO FENDER
999
HEXAGON HEAD BOLT. SCREW OIL SEPARATOR TO TRANSMISSION CASE
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
