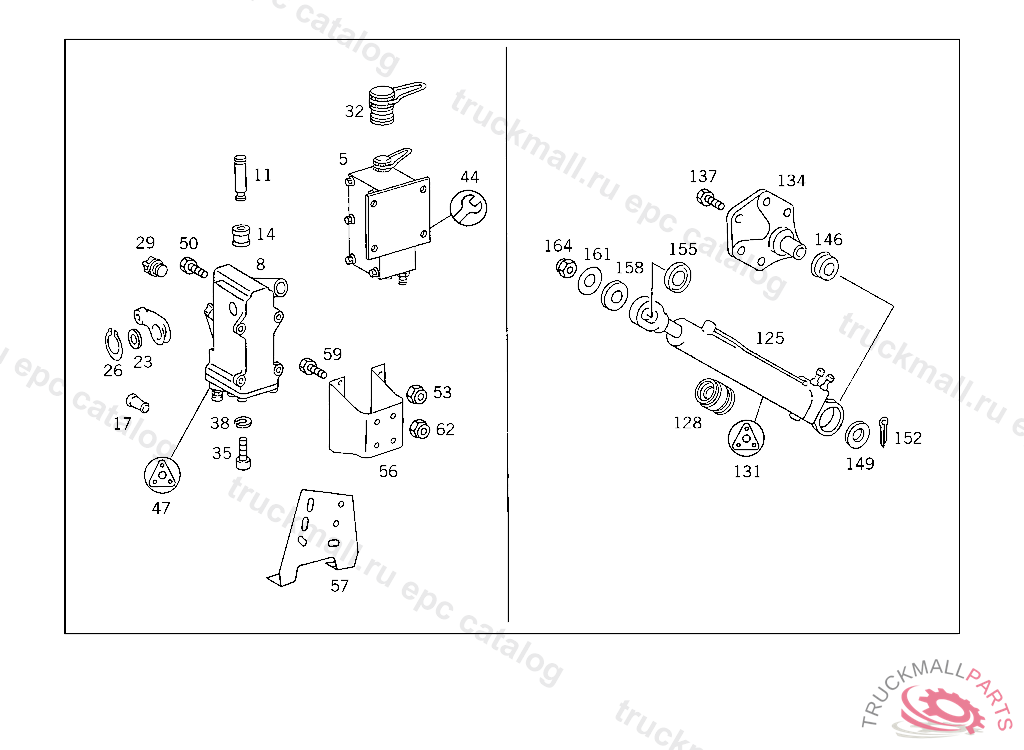

Поз.
Артикул
Описание
5
PUMP (HAND PUMP) POWER PACKER,4 733732
8
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
11
PISTONTO 000 553 89 01
14
VALVETO 000 553 89 01
17
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREW
32
SCREWTO 000 553 65 01,000 553 69 01,
35
SCREW
35
SCREW , Replaced By: N000000000190
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
44
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
47
GASKET KIT HAND PUMP
50
SCREW , Replaced By: N304017010002
50
SCREW BRACKET TO SIDE MEMBER
53
NUT STRAP TO BRACKET
53
NUT , Replaced By: N910113010000
56
BRACKET HAND PUMP
56
BRACKET HAND PUMP
59
SCREW , Replaced By: N308676014020
59
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
62
NUT BRACKET TO SIDE MEMBER
62
NUT , Replaced By: N910113014001
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
125
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACK
128
GUIDEWEBER
131
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
131
GASKET KIT HYDRAULIC CYLINDER WEBER
134
BEARING BRACKET HYDRAULIC CYLINDER
137
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
137
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB M 14X45
146
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
149
WASHER HYDRAULIC CYLINDER TO CAB
152
COTTER PIN6,3X36 MM
155
WASHER HYDRAULIC CYLINDER TO CAB
158
WASHER HYDRAULIC CYLINDER TO CAB
161
WASHER HYDRAULIC CYLINDER TO CAB
164
NUT COMBINATION CYLINDER TO BEARING BRACKET
164
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
