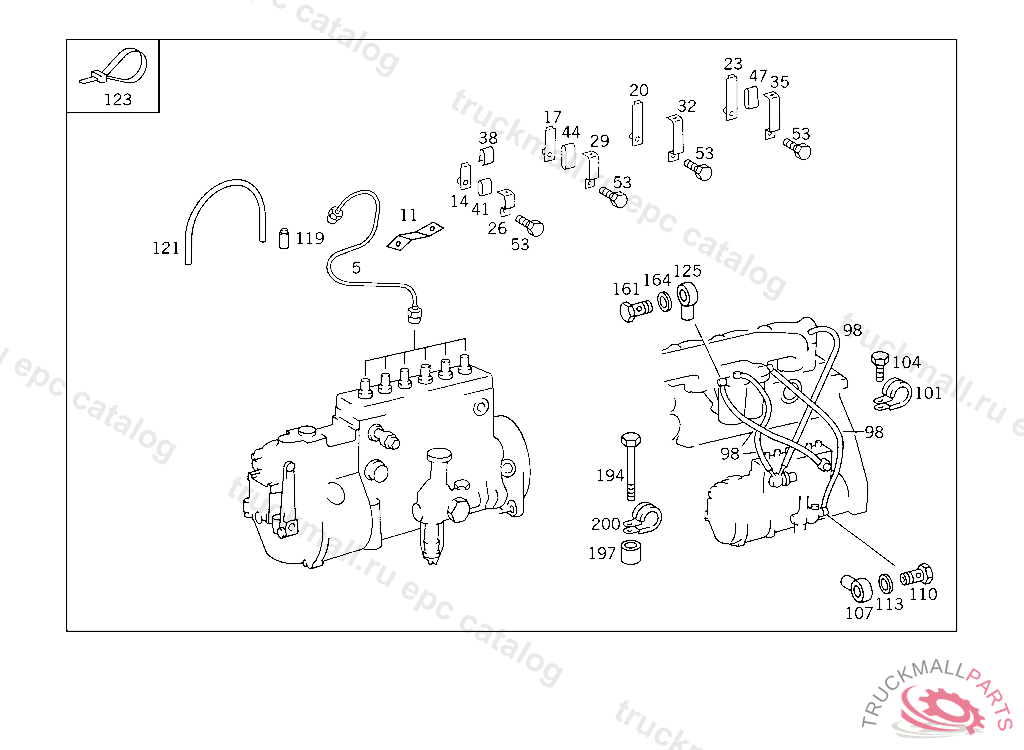

Поз.
Артикул
Описание
5
LINE CYLINDER NO.5
5
LINE CYLINDER NO.2
5
LINE CYLINDER NO.3
5
LINE CYLINDER NO.5
5
LINE CYLINDER NO.2
11
BRACKET
14
CLAMPING PIECE , Replaced By: A0009951407
14
CLAMP FOR FIVE LINES
17
CLAMP DELIVERY LINE
17
CLAMPING PIECE , FROM ENGINE 461719 YEAR OF MANUFACTURE 1998, Replaced By: A0009951107
17
CLAMP
20
CLAMPING PIECE FOR FOUR LINES TO 496 995 03 22
23
CLAMPING PIECE FOR FIVE LINES TO 496 995 04 22
26
CLAMP , Replaced By: A0009952607
26
CLAMP DELIVERY LINE
29
CLAMP
29
CLAMP , Replaced By: A4229950122
29
CLAMP DELIVERY LINE
29
CLAMP FOR THREE LINES
32
PIPE BRACKET FOR FOUR LINES
35
CLAMP FOR FIVE LINES
35
CLAMP , Replaced By: A0009952907
38
PIPE BRACKET FOR TWO LINES, FROM ENGINE 134342 YEAR OF MANUFACTURE 1990 UP TO ENGINE 461718 YEAR OF MANUFACTURE 1998
41
SHIM FOR TWO LINES TO 496 995 01 22
41
SHIM FOR TWO LINES, FROM ENGINE 134342 YEAR OF MANUFACTURE 1990 UP TO ENGINE 461718 YEAR OF MANUFACTURE 1998
44
SHIM FOR THREE LINES TO 496 995 01 22,02 22
44
SHIM FOR THREE LINES TO 496 995 03 22
47
SHIM FOR FIVE LINES TO 496 995 04 22
53
SCREWM6X12, TO 496 995 01 22, 02 22, 03 22
53
SCREWM 6X12
98
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
119
SCREENING NOZZLE HOLDER
121
HOSE (COLLECTING CONNECTOR),019450
121
HOSE , Replaced By: A4079976482
123
LOOM TIE
123
LOOM TIE ELECTRIC CABLE MOUNTING
125
BANJO UNION
161
HOLLOW SCREW
164
SEAL RINGTO 000 553 03 05,000 553 18 05,
194
SCREW , Replaced By: A0069909101
197
SPACER TUBE SHAPED HOSE ON AIR INTAKE PIPE
200
CLAMP LINES TO BRACKET
200
CLAMP AT BRACKET
