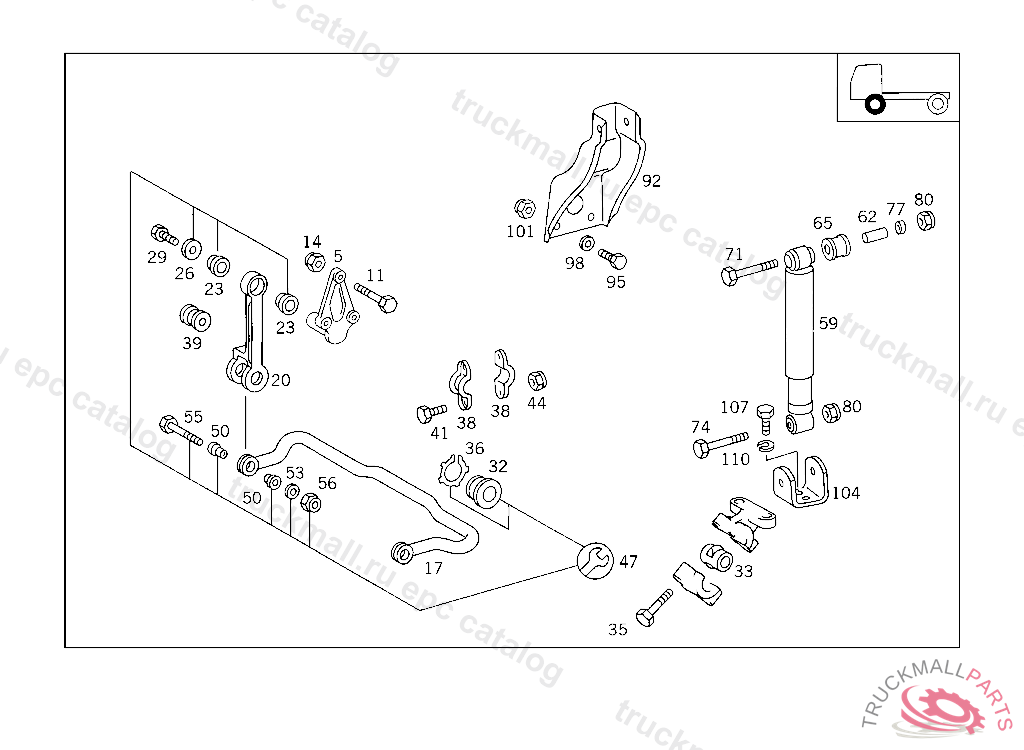

Поз.
Артикул
Описание
5
BEARING BRACKET SHACKLE TO FRAME
5
BEARING BRACKET SHACKLE TO FRAME
11
SCREW , Replaced By: N308676012015
11
SCREW LEFT AND RIGHT CONSOLES TO CAB
14
NUT SUPPORT TO SIDE MEMBER
17
TORSION BAR FRONT AXLE,5 903514
17
TORSION BAR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 5215065 903513, Replaced By: A6523230765
17
TORSION BAR
20
LINK TORSION BAR,FRONT,5 903513
20
LINK TORSION BAR,FRONT,5 903514
23
BUSHING SHACKLE TO BEARING BRACKET
26
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904661
26
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
29
SCREW SHACKLE TO CONSOLE
32
RUBBER MOUNTING SHACKLE TO TORSION BAR
33
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 903514
33
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 903514
35
SCREW TORSION BAR TO SHACKLE,5 903514
35
SCREW ,5 903514, Replaced By: N000960012353
36
LOCK RING SHACKLE TO TORSION BAR
38
BRACKET TORSION BAR
39
RUBBER MOUNTING SHACKLE TO BEARING BRACKET,5 904661
39
RUBBER MOUNTING SHACKLE TO BEARING BRACKET,5 904661
39
RUBBER MOUNTING SHACKLE TO BEARING BRACKET
41
SCREW , Replaced By: N308676012012
41
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
44
NUT SUPPORT TO SIDE MEMBER
47
REPAIR KIT TORSION BAR MOUNTING
50
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET
50
BUSHING TORSION BAR TO BEARING BRACKET
50
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET
50
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 904661
53
SPACER WASHER TORSION BAR TO BEARING BRACKET,5 904661
53
WASHER TORSION BAR TO BEARING BRACKET
53
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
55
SCREW TORSION BAR TO BEARING BRACKET,5 904661
56
NUT CONSOLE TO SUPPORT
56
NUT TORSION BAR TO BEARING BRACKET,5 904661
56
NUT , Replaced By: N910113016001
59
SHOCK ABSORBER ,5 903513
59
SHOCK ABSORBER ,5 903513
62
SPACER RINGTO 002 323 86 00,003 323 03 00,
62
BUSHINGTO 004 323 52 00
65
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
65
RUBBER BUFFER , Replaced By: A0003233144
65
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
65
RUBBER MOUNTINGTO 003 326 46 00
71
SCREW SHOCK ABSORBER TO TOP BRACKET
74
SCREW , Replaced By: N000960016250
74
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
77
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
80
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
80
NUT COMBINATION CYLINDER TO BEARING BRACKET
92
BEARING BRACKET SHOCK ABSORBER,TOP LEFT
92
BEARING BRACKET SHOCK ABSORBER,TOP RIGHT
95
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
95
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
95
SCREW , Replaced By: N308676012012
95
SCREW , Replaced By: N308676012026
98
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
98
WASHER , Replaced By: N007349013005
101
NUT SUPPORT TO SIDE MEMBER
104
BEARING BRACKET SHOCK ABSORBER,BOTTOM
107
SCREW , Replaced By: N308676012012
107
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
110
LOCK WASHER FITTING TO BRACKET
