Поз.
Артикул
Описание

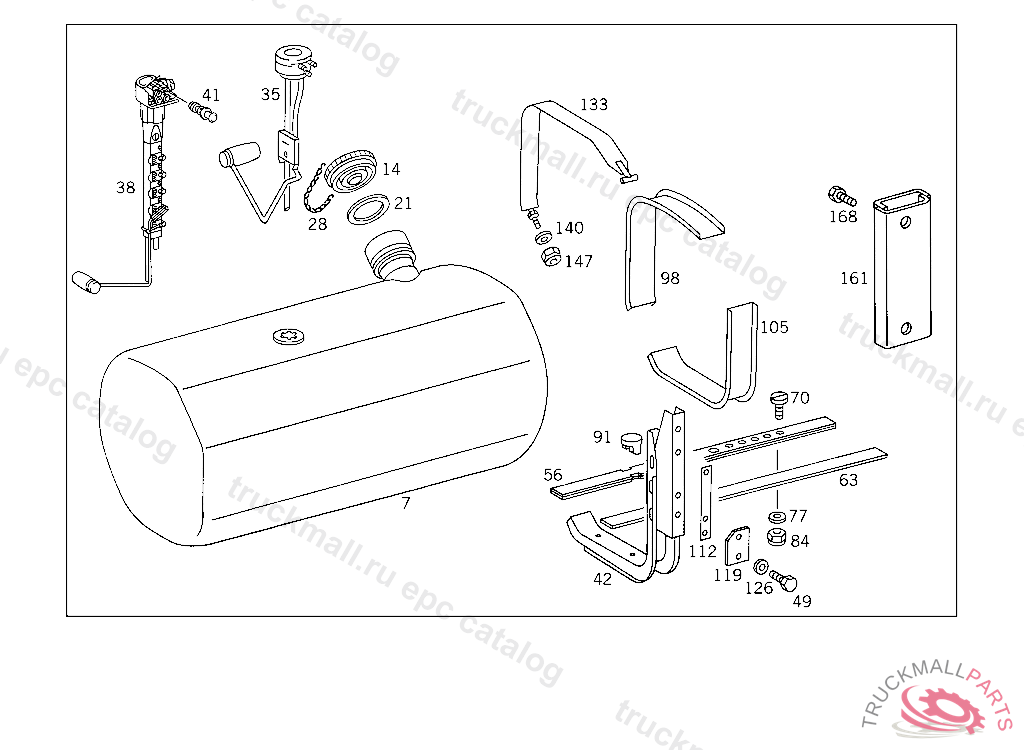

7
FUEL TANK210 L,K 169123
7
FUEL TANK ,K 169122, Replaced By: A6534700201, +001A0005409917, +001A0115426117
14
FILLER CAP
21
SEAL RING
28
CHAIN FILLER CAP
35
SENDER UNIT ,K 169122, Replaced By: A0085426917, +001A3529870045
38
SENDER UNIT FUEL GAUGE,K 169123
41
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
42
SUPPORT FUEL TANK,FRONT AND REAR
42
SUPPORT FUEL TANK,FRONT AND REAR
42
SUPPORT FUEL TANK,FRONT AND REAR
42
SUPPORT FUEL TANK,FRONT AND REAR,5 761222
42
SUPPORT FUEL TANK,REAR
42
SUPPORT FUEL TANK,FRONT AND REAR
42
SUPPORT FUEL TANK,FRONT AND REAR
42
SUPPORT FUEL TANK,FRONT AND REAR
49
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
49
SCREW , Replaced By: N910105014010
49
SCREW SUPPORT TO SIDE MEMBER M 14X45
49
SCREW , Replaced By: N308676014012
49
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
49
SCREW , Replaced By: N308676014020
49
SCREW SUPPORT TO SIDE MEMBER M14X40
56
PROTECTIVE RAIL FUEL TANK TO CONSOLE,5 429713
56
PROTECTIVE RAIL FUEL TANK TO CONSOLE,5 429713
56
SUPPORTING RAIL FUEL TANK TO CONSOLE,5 429712
63
PROTECTIVE PLATE FUEL TANK TO CONSOLE,5 429712 TO BE ADAPTED DURING ASSEMBLY
70
SCREW BRACKET TO CROSS CONNECTION STRUT
70
SCREW , Replaced By: N304017008034
70
SCREW CLAMP TO BRACKET,5 597426
70
SCREW , Replaced By: N910142008009
70
SCREW SUPPORTING RAIL TO SUPPORT,5 429712
77
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
84
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
84
NUT , Replaced By: N913004008001
84
NUT PUMP TO BRACKET
84
NUT , Replaced By: N913004006001
84
NUT BRACKET TO BRACKET
91
STOP SUPPORTING RAIL
98
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
105
PAD FUEL TANK SUPPORT 72 / 80, ORDER BY THE METER
112
SHIM SUPPORT TO SIDE MEMBER
112
SHIM , Replaced By: A3614750019
112
SHIM SUPPORT TO SIDE MEMBER
119
BASE SUPPORT TO SIDE MEMBER
119
SHIM , Replaced By: A3614750019
126
WASHER SUPPORT TO SIDE MEMBER
126
WASHER BRACKET TO SIDE MEMBER,5 703114
133
STRAP FUEL TANK TO SUPPORT
140
WASHER
147
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
147
NUT STRAP TO SUPPORT
147
NUT , Replaced By: N910113012003
161
INTERMEDIATE PIECE SPARE WHEEL CARRIER CONSOLE TO FRAME
168
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
168
SCREW , Replaced By: N308676014020
168
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
999
NUT PARTICLE FILTER M14
999
SUPPORT FUEL TANK,FRONT
