Mercedes N916002010100 - ХОМУТ

1424 LS,1427 LS,1431 LS 651.537

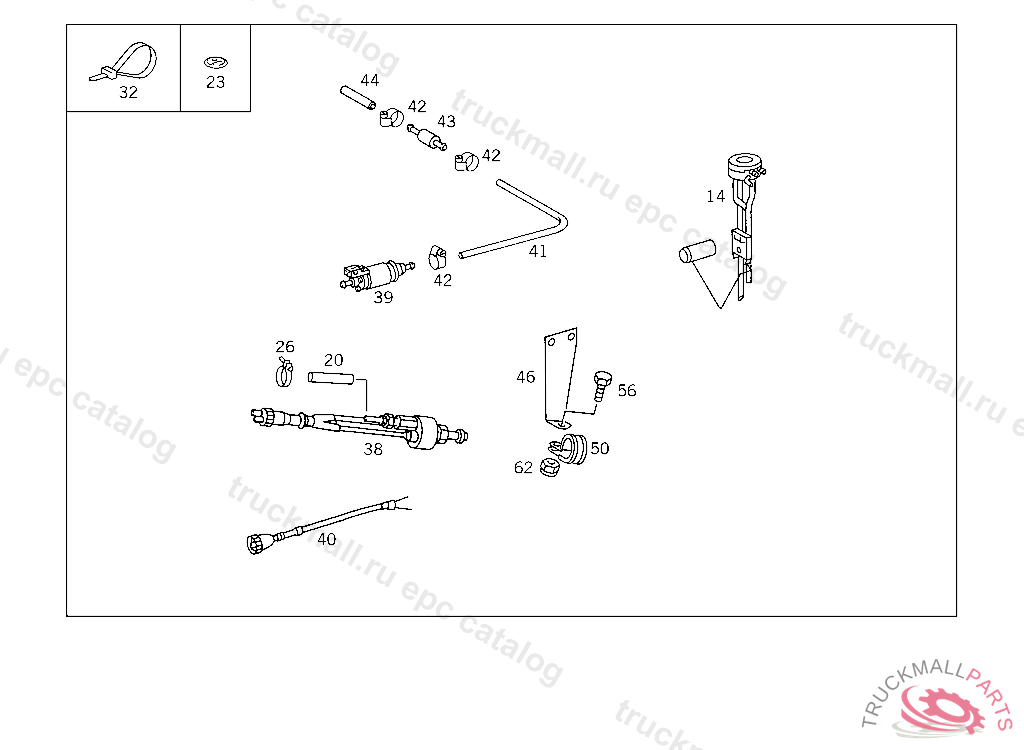

47 FUEL SYSTEM - 001 FUEL SYSTEM USED FOR CIRCULATING AIR HEATING

Поз.
Артикул
Описание
14
A0085428517
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
20
A0004760125
INTERMEDIATE PIECE FUEL LINE,K 223528
23
A3816820086
BRACKET LINE MOUNTING
26
N916002010100
CLAMP LINE MOUNTING
32
A0019978490
LOOM TIE LINE MOUNTING
32
A0019978390
LOOM TIE LINE MOUNTING 280 MM
38
A0004704594
AUXILIARY PUMP FUEL-OIL,K 181478, Replaced By: A0004706694
38
A0004706694
AUXILIARY PUMP FUEL-OIL PUMP,K 181478
38
A0004705794
AUXILIARY PUMP FUEL-OIL PUMP,K 129782
39
A0018352864
PUMP
40
A0005401336
ELECTRIC CABLE
41
A1244761826
HOSE , Replaced By: A2014761126
41
A2014761126
HOSE4.5X10X900MM
42
A0039975790
LOOM TIE. CLIP
43
A0008320344
FILTER
44
A0004766226
HOSE
46
A6554780140
BRACKET ADDITIONAL FUEL PUMP
46
A6524761236
BRACKET ADDITIONAL FUEL PUMP
50
N916016034202
CLAMP PUMP TO BRACKET
56
N000933006183
SCREW , Replaced By: N304017006016
56
N304017006016
SCREW PUMP TO BRACKET
62
N913004006002
NUT , Replaced By: N913004006001
62
N913004006001
NUT PUMP TO BRACKET
