Mercedes
›
TRUCK
›
1424 LS,1427 LS,1431 LS
›
651.537
›
52 SHEET METAL,AIR INTAKE
›

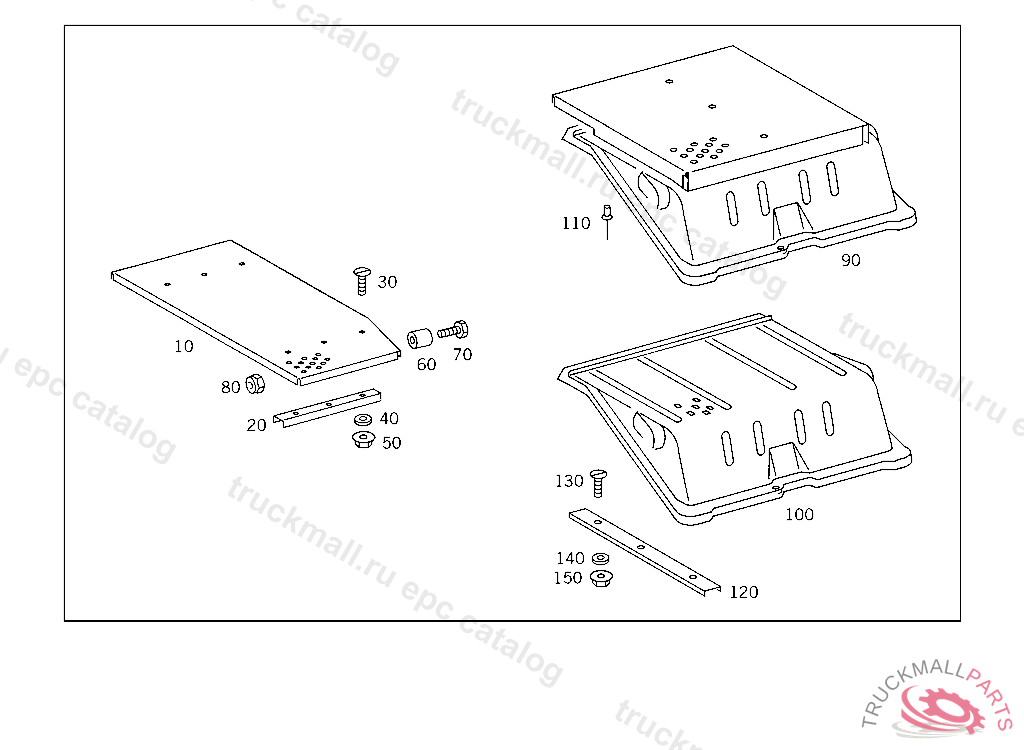

001 STEP AND PLATFORM BEHIND CAB
Mercedes A0009843329 - Болт
1424 LS,1427 LS,1431 LS 651.537
52 SHEET METAL,AIR INTAKE - 001 STEP AND PLATFORM BEHIND CAB
Поз.
Артикул
Описание
10
A6455200331
RUNNING BOARD
20
A6455230220
REINFORCEMENT
30
N000963010034
SCREW REINFORCEMENT TO ROCKER PANEL
40
N000433010510
WASHER VIBRATION ABSORBER TO BRACKET
40
N000433010505
WASHER , Replaced By: N000433010510
50
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
N910112010001
NUT , Replaced By: N913023010002
60
A6555230150
BUSHING
70
A0009843329
SCREW ROCKER PANEL TO STEP
80
N913002006009
NUT OIL TANK TO BRACKET
80
N913002006005
NUT , Replaced By: N913002006009
90
A6455200124
ANTINOISE CAPSULE APPARATUS SUPPORT
100
A6205410303
COVER BATTERY/APPARATUS SUPPORT
110
N910001004108
RIVET
120
A6455230120
REINFORCEMENT
130
N000963010034
SCREW REINFORCEMENT TO ROCKER PANEL
140
N000433010510
WASHER VIBRATION ABSORBER TO BRACKET
140
N000433010505
WASHER , Replaced By: N000433010510
150
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
150
N910112010001
NUT , Replaced By: N913023010002
999
A6625230240
BRACKET ROCKER PANEL
999
A6625230701
RUNNING BOARD BATTERY/APPARATUS SUPPORT
