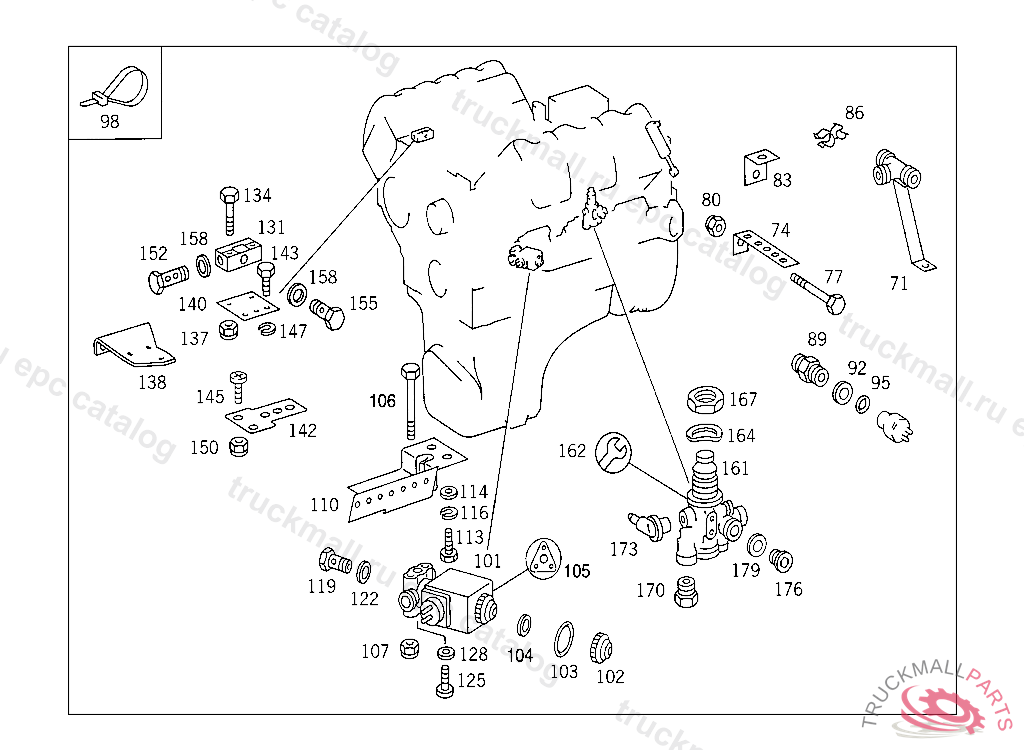

Поз.
Артикул
Описание
98
LOOM TIE LINE MOUNTING 280 MM
98
LOOM TIE LINE MOUNTING
101
VALVE (3/2-WAY SOLENOID VALVE) EKS
102
PROTECTIVE CAPWABCO
103
SEAL RINGBOSCH
103
SEAL RINGWABCO
104
SEAL RINGBOSCH
105
GASKET KITKNORR
106
SCREW VALVE TO BRACKET
106
SCREW VALVE TO BRACKET, Replaced By: N304014008002
107
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
107
NUT , Replaced By: N913004008001
110
BRACKET 3/2-WAY SOLENOID VALVE
110
BRACKET 3/2-WAY SOLENOID VALVE
113
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
113
SCREW , Replaced By: N304017008016
114
WASHER EXHAUST MUFFLER TO STRAP
114
WASHER , Replaced By: N000125008443
116
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
119
HOLLOW SCREW HEATING CONNECTION
122
SEAL RING LINE CONNECTION
125
SCREW TO PLUG THE FREE CONNECTIONS
128
SEAL RINGBOSCH
131
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
134
SCREW TWO-WAY VALVE TO BRACKET
137
NUT TWO-WAY VALVE TO BRACKET
142
BRACKET CONNECTOR TO FRAME
145
SCREW CLAMP MOUNTING M 6X16
145
SCREW , Replaced By: N000000001146
150
NUT PUMP TO BRACKET
150
NUT , Replaced By: N913004006001
152
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
155
HOLLOW SCREW FUEL LINE TO FEED PUMP
155
HOLLOW SCREW , Replaced By: N915036010108
158
SEAL RING FUEL LINE TO FEED PUMP
161
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
161
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
162
REPAIR KIT 3/2-WAY VALVE BOSCH
162
REPAIR KIT 3/2-WAY VALVE WABCO
164
SPRING WASHER AT CAB FLOOR
167
NUT SUCTION LINE TO OIL PUMP
170
SCREW. UNION SCREW LINE CONNECTION
170
SCREW. UNION SCREW , Replaced By: A0009973734
173
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
173
BREATHER , Replaced By: A3933280065
176
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
176
SCREW PLUG , Replaced By: N000908012009
179
SEAL RING LINE CONNECTION
999
SHIM 3/2-WAY SOLENOID VALVE
