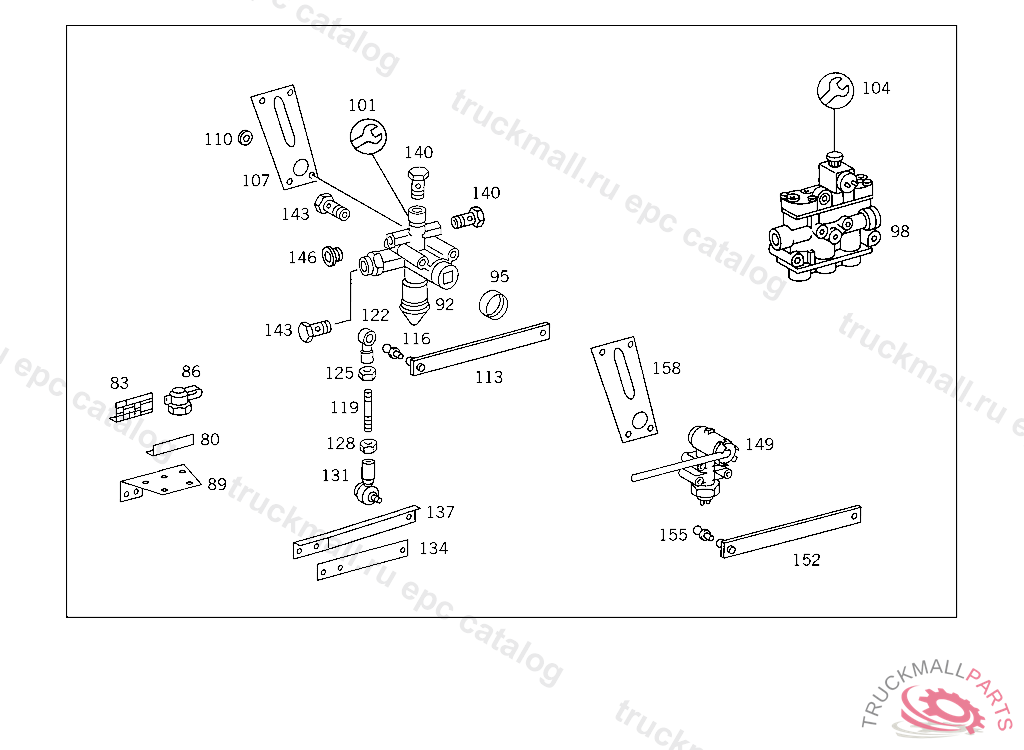

Поз.
Артикул
Описание
80
GUIDE SIGN AIR SPRING BELLOWS,LEFT AND RIGHT
83
GUIDE SIGN SUPPLY
86
TEST CONNECTION
86
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
86
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
86
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
BRACKET TEST CONNECTION, TO BE ADAPTED DURING ASSEMBLY
92
VALVE SELF-LEVELLING DEVICE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
95
BOOT
98
VALVE FRONT AXLE SELF-LEVELLING DEVICE
101
REPAIR KIT AIR SPRING VALVE
104
REPAIR KIT AIR SPRING VALVE
107
BRACKET AIR SPRING VALVE, TO BE ADAPTED DURING ASSEMBLY
107
BRACKET AIR SPRING VALVE
110
WASHER 3/2-WAY VALVE TO BRACKET
113
LEVER SELF-LEVELLING DEVICE
116
BALL PIVOT BOTTOM B13X5 MM
119
PULL ROD PNEUMATIC SUSPENSION CONTROL
122
YOKE BOTTOM
125
NUT , Replaced By: N304035008001
125
NUT
128
NUT , Replaced By: N304035008002
128
NUT L.H. THREAD
131
YOKE TOP
134
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
137
BRACKET PULL ROD TO AXLE
140
HOLLOW SCREW HEATING CONNECTION
143
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
146
SCREW PLUG , Replaced By: N000908012009
146
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
146
SCREW PLUG , Replaced By: N000000000648
146
SCREW PLUG, FILLING HOUSING,BOTTOM
149
TRAVEL SENSOR REAR AXLE,K 186868
152
LEVER , Replaced By: A9453200627
152
LEVER TRAVEL SENSOR, TO BE ADAPTED DURING ASSEMBLY
152
LEVER , Replaced By: A9453200627
155
BALL STUD. BALL PIVOT TOP B10X4,5 MM
158
BRACKET TRAVEL SENSOR TO FRAME SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
AIR CLEANER ,5 760168K 154651
999
MAGNET
999
MAGNET CONNECTION OF COMPRESSED AIR LINES
999
MAGNET ,5 760168K 154651
999
PROTECTIVE CAPWABCO
999
RUBBER MOUNTING SHACKLE TO TORSION BAR
999
SPACER WASHER LINK TO CONSOLE
999
BUSHING LINK TO CONSOLE, INAPPLICABLE TO IDENT NO.: 5 545417,5 545468,5 549721,5 549753,5 551382,5 553458,5 556586,5 556951,5 557200,5 568184,5 568795,5 575157,5 575986.K 054776
999
SPACER WASHER TORSION BAR MOUNTING
999
BUSHING TORSION BAR TO BEARING BRACKET
999
PIN TORSION BAR TO SHACKLE, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SCREW BEARING BRACKET TO FRAME M 14X20, MODEL 415/416/417 FOR USE WITH SHORT CAB MERCEDES BENZ
999
LOCK RING SHACKLE TO TORSION BAR
